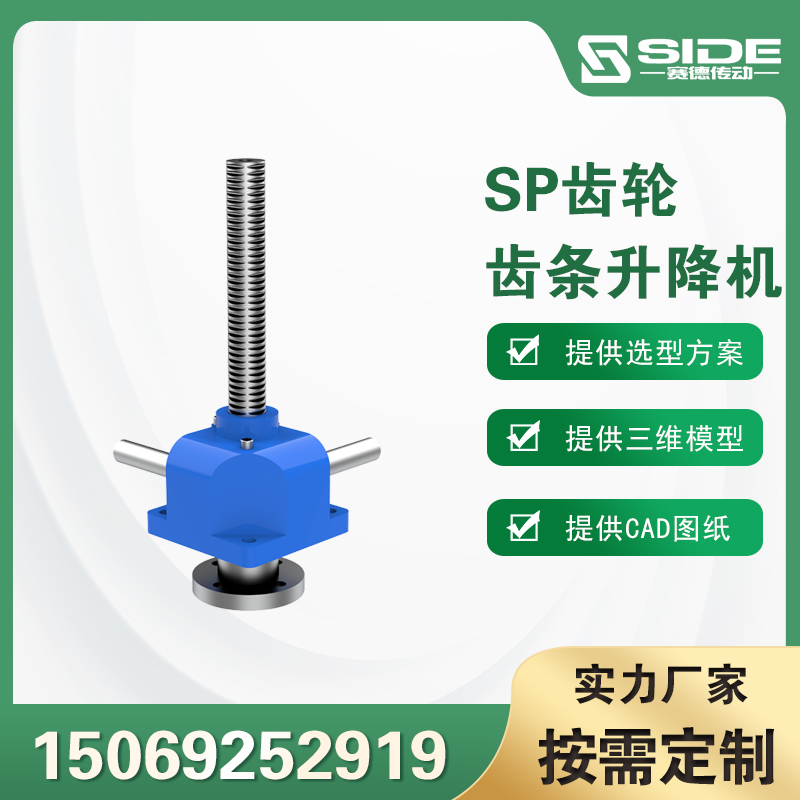

Sedene Flat Machine Special Screw Lift SP300 Gear and Rack Synchronous Lift

Structure and performance of gear rack elevator

1. A gear rack elevator is a synchronous lifting mechanism that combines gears and racks. It can rotate gears directly through a motor and drive gears to move in a straight line.

2. There is almost no power loss, which can maximize the efficiency of the machine charging.

3. Simple structure, low failure rate, and easy maintenance.

4. The worm gear lifter achieves deceleration inside the lifter, so the lifting speed is slow, suitable for precision lifting or lifting of heavy objects. The gear rack elevator is directly connected by gears and racks, and can perform high-speed linear motion using a reduction motor with accompanying braking

Types of gear rack elevators

Gear and rack elevators are generally divided into ordinary and clean room types. Ordinary type is mostly used for general industrial equipment; Clean type is commonly used in semiconductors,On LCD/PDP production equipment and food production equipment, various post-processing can be carried out according to the cleanroom level requirements.

Gear rack elevator

1. It is a basic combination model that can be set in size and stroke according to requirements.

2. Can withstand large loads

Gear rack elevator

1. Install a gearbox on the drive shaft, which can be directly connected to the motor.

2. It can be used in clean room environments without using gears or sprockets.

3，Turbine reducers have a reduction ratio, so they can adapt to general motors or servo motors.

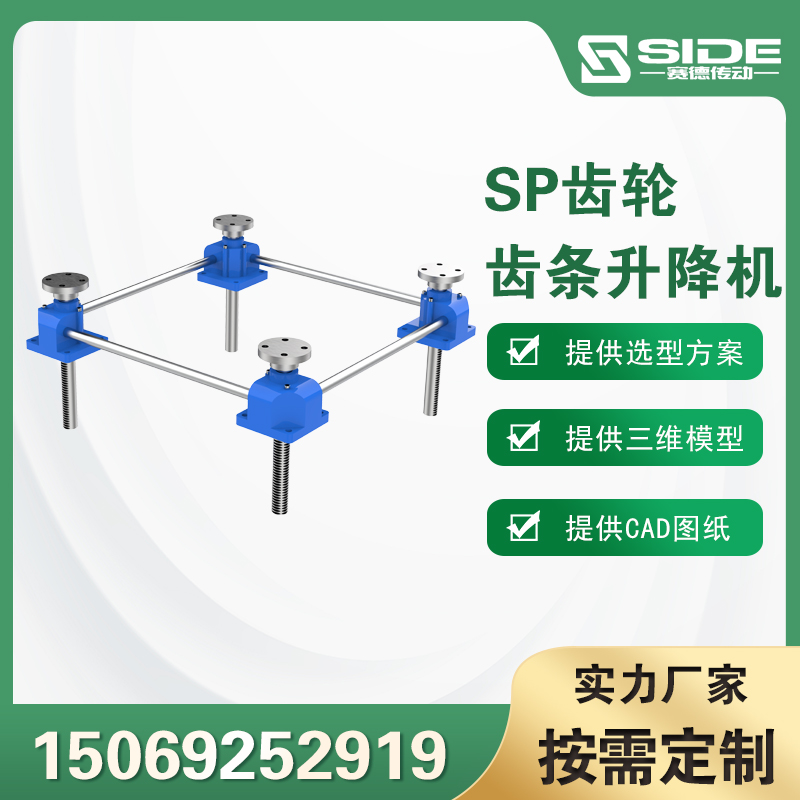

Structure and performance of rack synchronous elevator

A synchronous elevator is a structure composed of a gearbox consisting of gears and racks, combined with a connecting shaft, used for lifting/Dimension during operationholdA unit that synchronizes the upper and lower surfaces.

Several gears inside the gearbox mesh with each other, so there is almost no noise generated.

up/When moving downwards, it can also move normally under a bias of less than 50%.

Its guide rails are composed in a unit form, and the standardization of components allows for quick replacement and easy maintenance,

Characteristics of rack synchronous elevator

High quality and simplified design

The components are compact and durable, requiring only regular injection of lubricating oil.

It can be assembled according to the designer's requirements to reduce design time.

Smooth operation and low noise

up/When making movements, the operation is light and the sound is low.

The structure of gears and racks ensures meshing and can maintain synchronization even in harsh environments.

Wide range of applications

Suitable for general industrial machinery and equipment such as production line assembly engineering or logistics lines (automatic warehouses).

Can be used in clean rooms

The synchronous elevator has excellent quality and structure, and can be used in environments that require dust-free operation.
