Introduction to Stainless Steel Box Welding Robot Solution:
1. Name of welded workpiece: Box body (304 stainless steel)
2. Specification range of welded parts: Full welding
3. Material, thickness, and welding infiltration: 3mm
4. Weight of welded parts: ＜ 50KG
5. Welding method: argon arc welding
Protective gas composition: 99.999% Ar
Welding method: loose parts;
Workpiece loading and unloading method: manual loading and unloading;

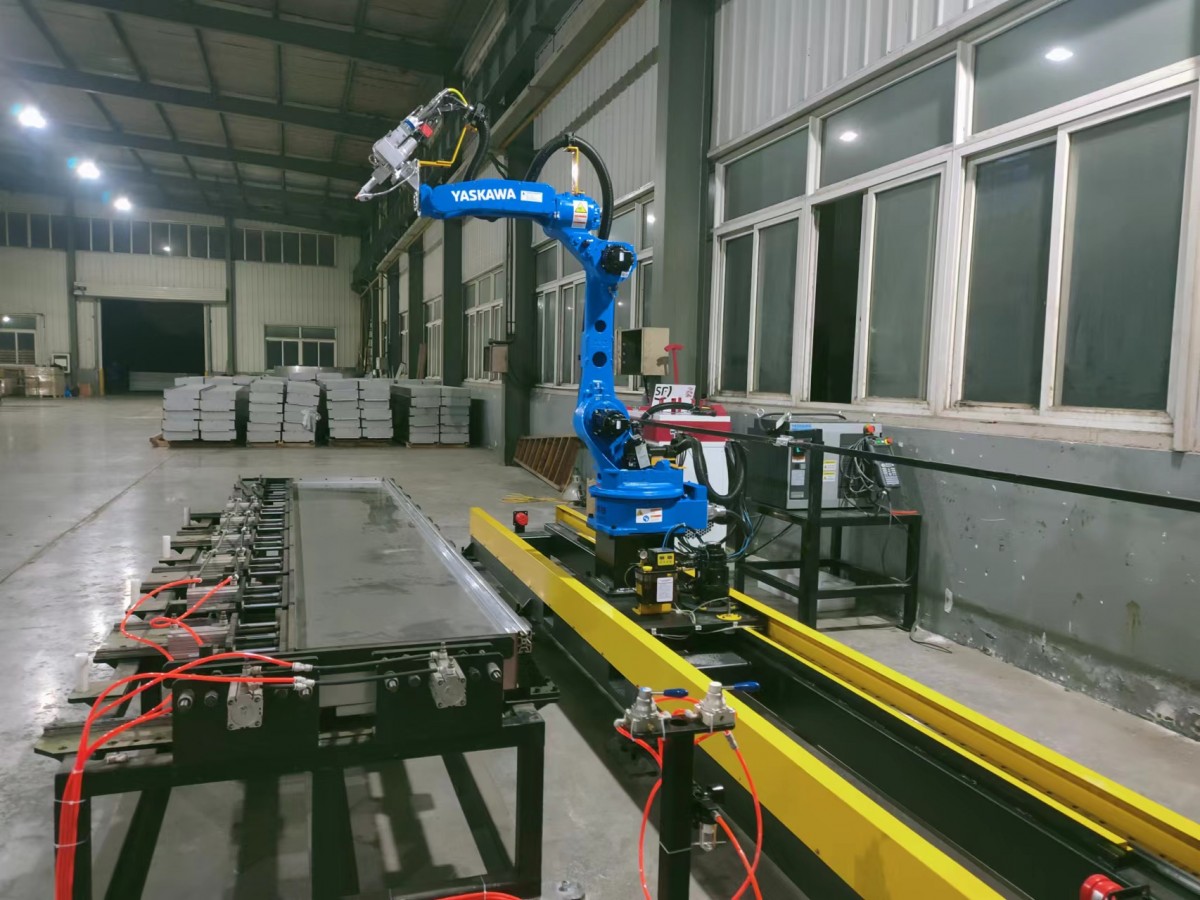

Overview of argon arc welding robot workstation:
This workstation adopts the automatic welding method of the four corner special machine welding workstation; The workstation mainly includes argon arc welding equipment, welding power supply, welding fixtures, system integration control cabinet, etc
Workstation 2D layout diagram (subject to actual design): The entire workstation has a range of 4.3 meters * 1.6 meters
Due to the length of the workpiece, two employees need to use suction cups to transport the product to the fixture for welding at the same time.
The fixed end on the fixture serves as the positioning reference, while the mobile end can be adjusted to accommodate products of different widths. After the workpiece is placed, start the equipment, clamp the workpiece tightly, and weld the four corners simultaneously. After the product is welded in one go, manually cut the material.
Welding machine brand image:
Shanghai General Welding Machine
Our argon arc welding robot welding system:
Fast welding speed, high quality, easy operation, and high integration,1Height tracking (optional)The robot adjusts the welding trajectory based on the deformation of the workpiece during welding to ensure stable arc length and welding quality;
2High integration control:It can achieve data communication between the robot control system and the welding power supply, meeting different application requirements.
3High reliability,Adopting electromagnetic and optoelectronic isolation systems, with strong anti-interference performance; The arc initiation channel is independently wired, with a high success rate for arc initiation.

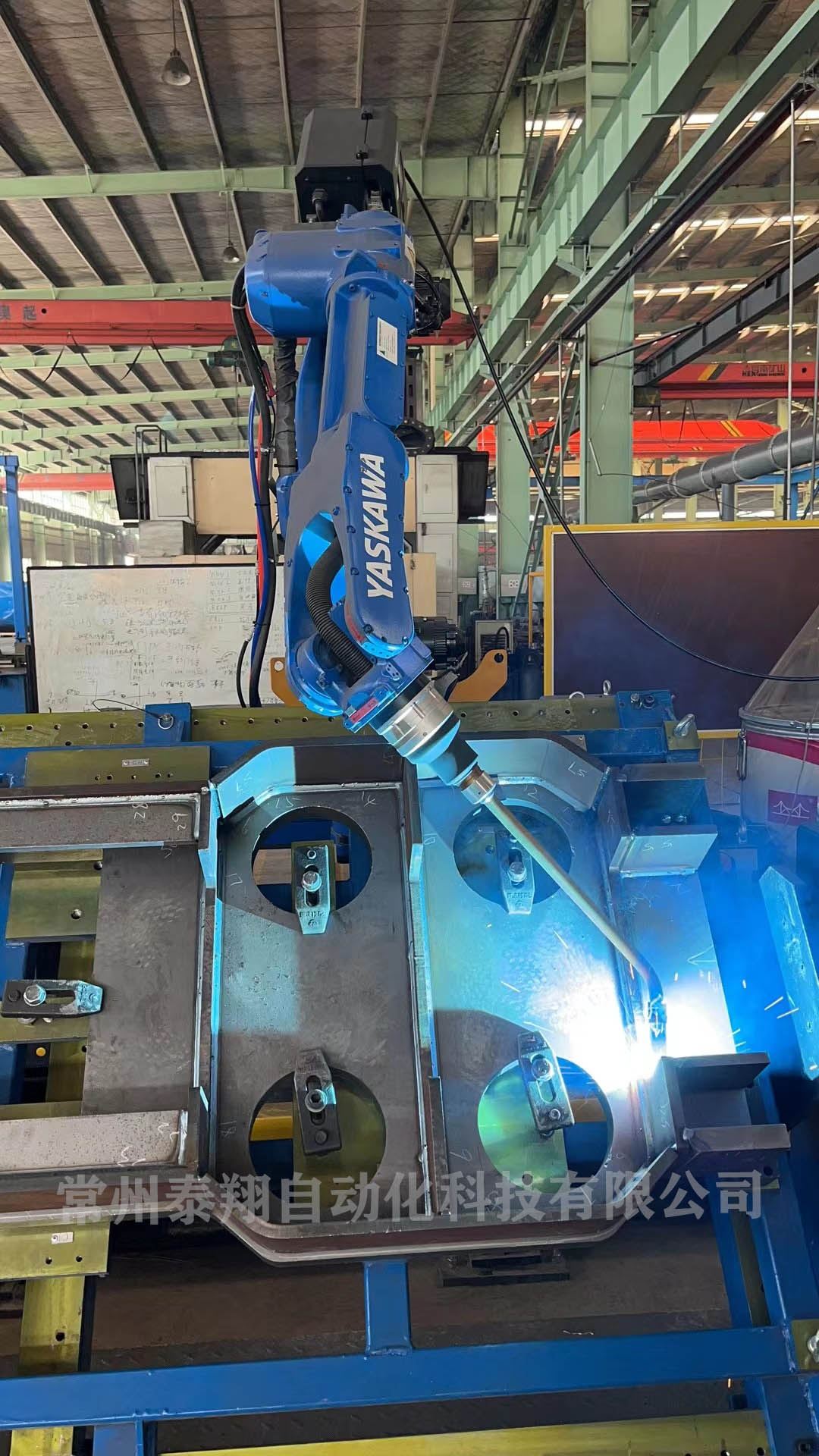

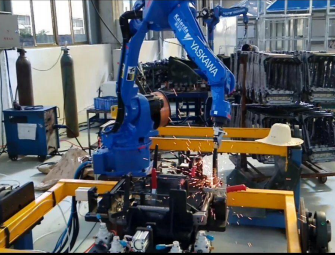

Customer case site:
Our company is a professional welding robot system integrator,In 2021, our company invested over 5 million yuan in research and development,Our company possesses1 production base, 3 industry university research bases, and 1 research center. More than 40 practical patents,Strong research and development capabilities and product quality, waiting for your consultation.
The main products of the company are:Argon arc welding robot, laser welding robot, gas shielded welding robot, welding positioner, welding fixture, gantry welding robot, welding robot workstation, robot mobile ground rail, robot polishing system, welding auxiliary equipment, welding robot system integration, etc
Our company has always adhered to the concept of providing customers with cost-effective automation technology solutions and services, continuously creating value for customers, and treating every customer with care.
