1Steam heating consumptionsounddevicesummary:

A steam heated muffler refers to a type of muffler installed in water tanks, sinks, water tanks, and water tanks that use steam to heat water, connected to the outlet of the steam pipeline, to eliminate the strong noise and vibration generated when steam and water mix. Also known as: steam heating water muffler, steam inlet water muffler muffler, hot water tank muffler, hot water tank steam muffler, immersion muffler, steam water mixing heater muffler, solution tank heating muffler, bath steam muffler.

IISteam heating consumptionsounddevicePrinciples and characteristics:

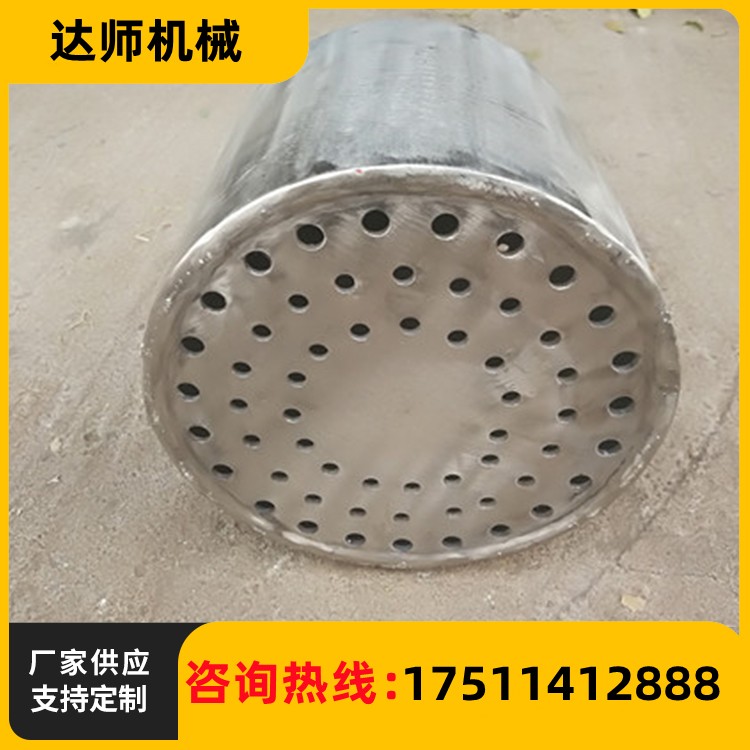

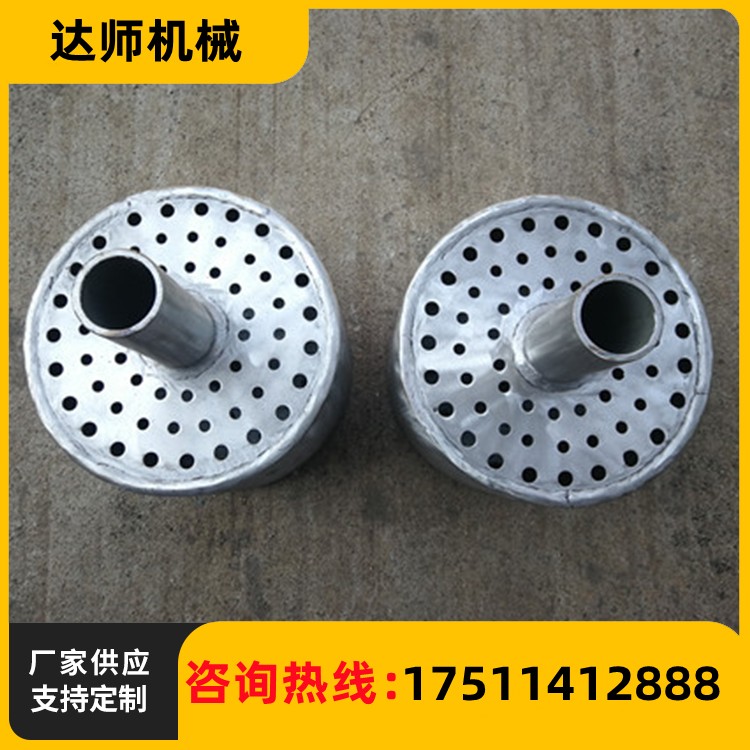

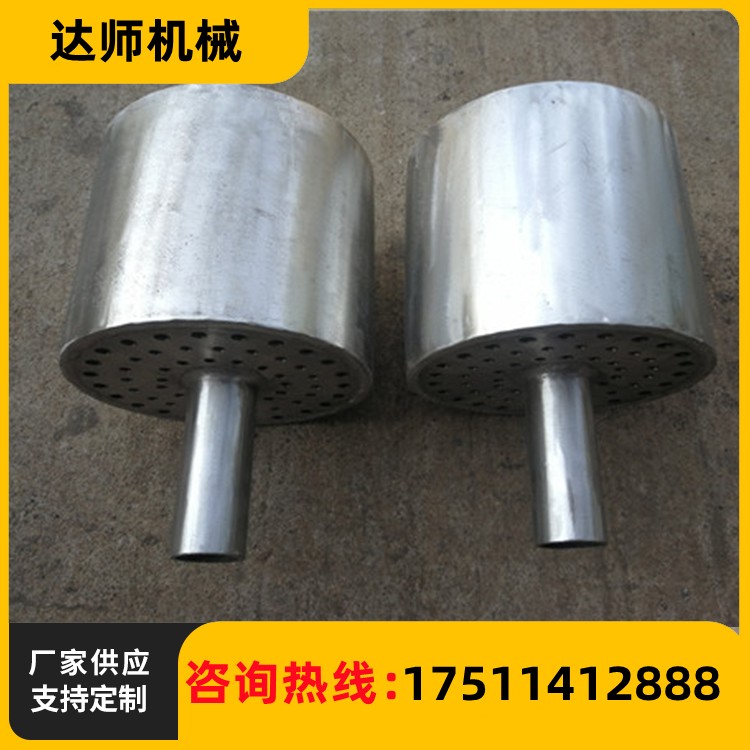

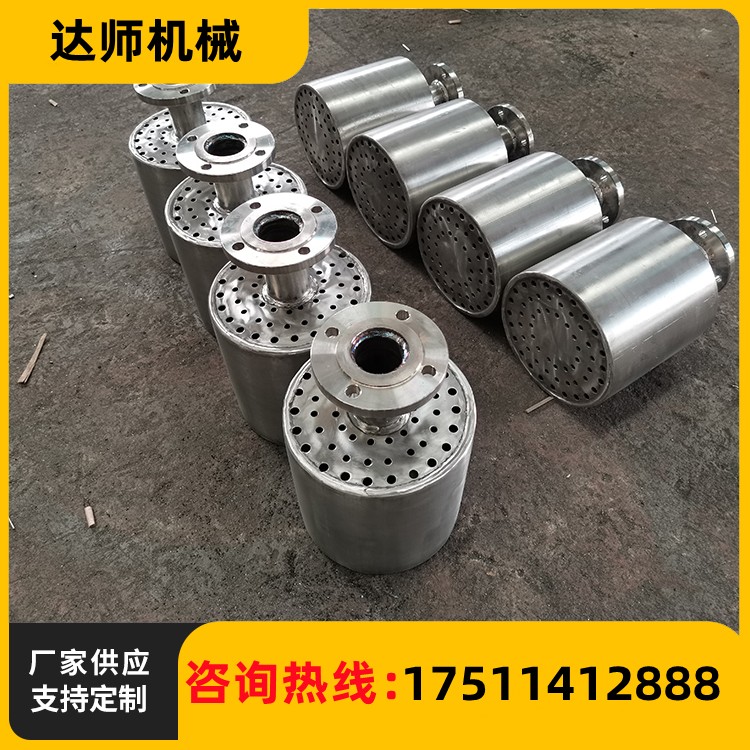

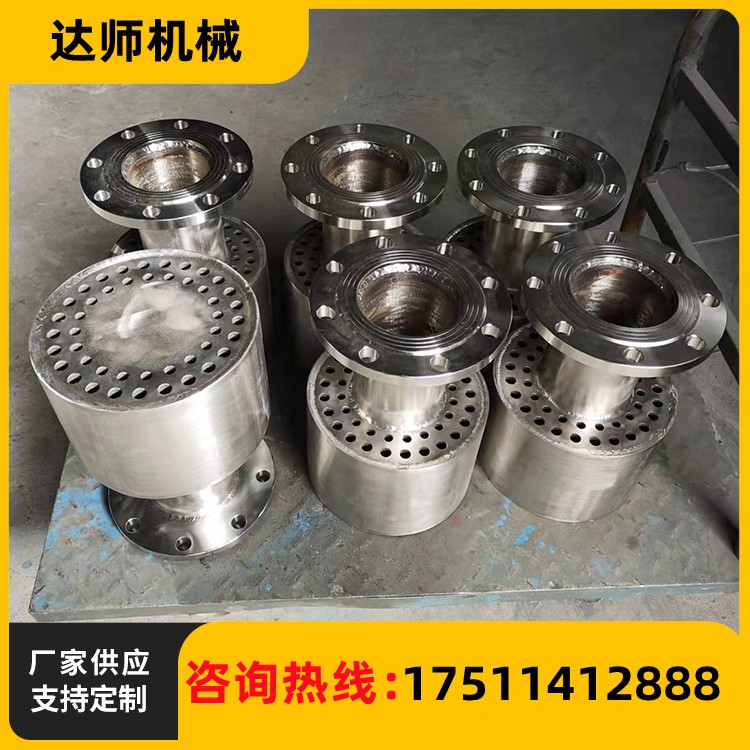

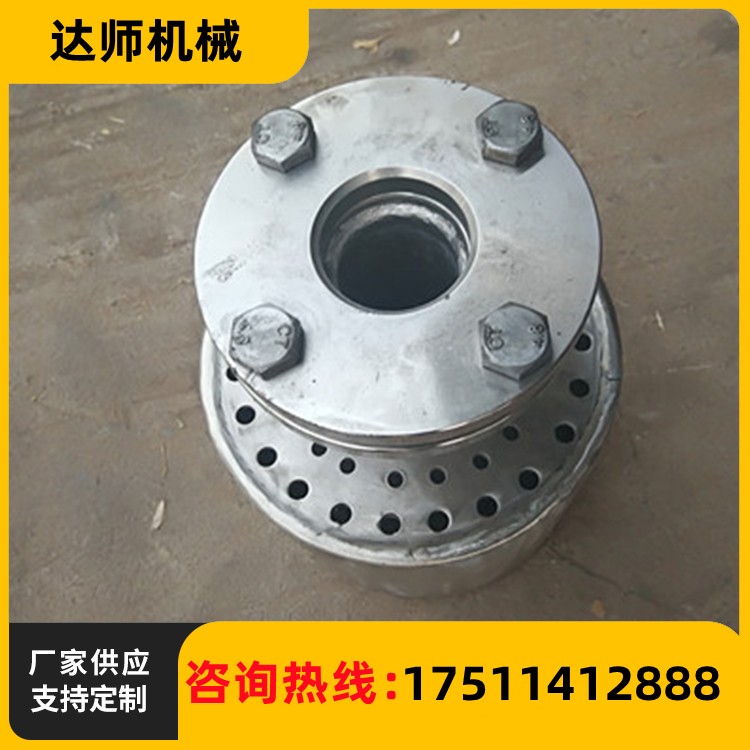

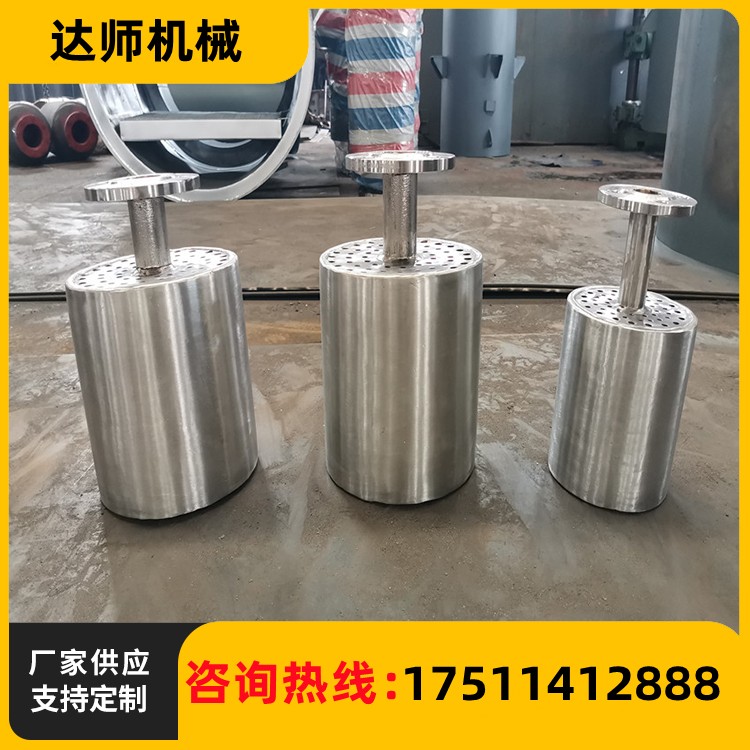

The steam heating muffler consists of an outer shell and a core, with small and large holes distributed on the upper and lower parts of the outer shell, and small inclined holes distributed around the core. The area between the outer shell and the core is a mixed heating zone. When the steam heating muffler is working, steam is sprayed into the heating area of the mixer at high speed from the small inclined holes in the core, pushing the water in the heating area to rotate at high speed, while completing the heat exchange of the steam water mixture. The heated water is continuously discharged from the upper hole of the shell during the upward rotation process, and the lower hole is replenished to circulate and heat the water in the water tank.The steam heating muffler is composed of ordered two-phase flow channels, heat exchange rings, soundproof cavities, etc. It is processed and formed from a single piece of raw material, with small volume, light weight, high flow rate, and long service life. Has good stirring energy. With the promotion of industrial applications, its classification is becoming increasingly refined and its varieties are becoming more complete.

IIISteam heating consumptionsounddeviceVarious classifications:

Steam heating consumptionSounders are divided into: resistant silencing, buffering silencing, beam source silencing, etc.

Buffer type mufflers are more like heat exchangers or radiators. They use a large contact surface to first transfer a small portion of the heat energy in the steam to the water, reducing the temperature and pressure of the steam. Then, the low-pressure steam and its condensate are input into the water to achieve the purpose of noise reduction and shock absorption. However, their drawbacks include high initial investment, high maintenance costs, short service life, and poor noise reduction effect. It is necessary to regularly remove scale and rust.

Steam heated silencers with resistance to noise reduction often use small holes to disperse and release steam. It is hoped that by reducing and dispersing noise sources, the noise and vibration generated by multiple sound sources can be cancelled out and suppressed within a certain range. However, this type of muffler is very difficult to manufacture, prone to failure, and highly sensitive to the effects of water temperature, steam pressure, scaling, and other factors. The vast majority of such mufflers can only reduce vibration within a certain range.

4Steam heating consumptionsounddeviceMain material classification:Steam heating mufflers are divided into:304 stainless steel type.

The standard specifies the emission limits and measurement methods for environmental noise at the boundary of industrial enterprises and fixed equipment factories(See Table 1)     Unit db (A)

Utility model name ：Cyclone type water tank steam heating mufflerZL 2021 2 3414886.1

Utility model name A split flow immersed steam mufflerZL 2023 2 0216671.6

Utility model name An anti surge mufflerZL 2023 2 0132403.6

Utility model name Diesel engine exhaust mufflerZL 2022 2 0134004.9

Utility model name Composite fan mufflerZL 2021 2 3414428.5

Utility model name Roots blower silencerZL 2022 2 0968087.1

Utility model name ：A safety valve muffler ZL 2023 2 0108105.3

Utility model name ：An anti clogging mufflerZL 2023 2 0164254.1

Utility model name A blast furnace discharge mufflerZL 2022 2 1154284.6

Utility model name A microporous mufflerZL 2022 2 1030485.5

Utility model name A compressed air mufflerZL 2022 2 0919627.7

Utility model name ：Vacuum pump exhaust mufflerZL 2022 2 1066202.2

Utility model name Automatic temperature control soundproof roomZL 2022 2 1224857.8

Utility model name A pipeline blowing muffler ZL 2023 2 0294171.4
