Low-Noise Diesel Generator Set Product Features

Characteristics of Low Noise Diesel Generators

Product Advantages:

1. The base panels are made of 2.5mm cold rolled steel, the bottom oil tank is constructed with 4mm hot rolled steel, and the outer layer is composed of polyester powder, offering excellent corrosion resistance. The entire tank is secured with screws for easy installation and maintenance.

2. Built-in silencer; the interior wall of the box is lined with a new type of specialized sound-absorbing material. During operation, the noise level is below 75dB(A) within a 1-meter radius.

3. The air outlet features a recirculating duct design, ensuring smooth exhaust and cooling.

4. Built-in large fuel tank, sufficient for the diesel generator set to run for 8-10 hours (larger fuel tanks available upon request).

5. The product warranty is for 1 year, and after the three-year warranty period, our company will provide lifetime follow-up service to customers.

Operating Principle:

Acoustic enclosures offer excellent noise reduction in noise control applications. Based on the distribution and control characteristics of the noise source, the noise within the enclosure is divided into four control zones. Different noise control techniques such as sound insulation, absorption, and attenuation are applied in each zone according to the characteristics of the noise within them. Under the constraint of limited enclosure dimensions, a significant noise reduction has been achieved within a compact space, yielding good results.

Product Features:

One. High Corrosion-Resistant Construction

1. The canopy is made of steel, with a zinc-phosphate coated exterior paint and a polyester powder component layer, boasting strong corrosion resistance.

2. All screws are galvanized for excellent corrosion resistance.

All locks are made of stainless steel.

Highly SAFE performance:

1. Excellent ventilation system and heat radiation prevention structure.

2. Effective shock absorption measures ensure smooth operation of the unit.

3. Built-in exhaust muffler system for operator safety.

4. Each door is equipped with a stainless steel lock, allowing for easy maintenance of the diesel generator set by opening the door.

5. An emergency stop button is externally located for the immediate shutdown of the generator set.

3. Easy operation and maintenance:

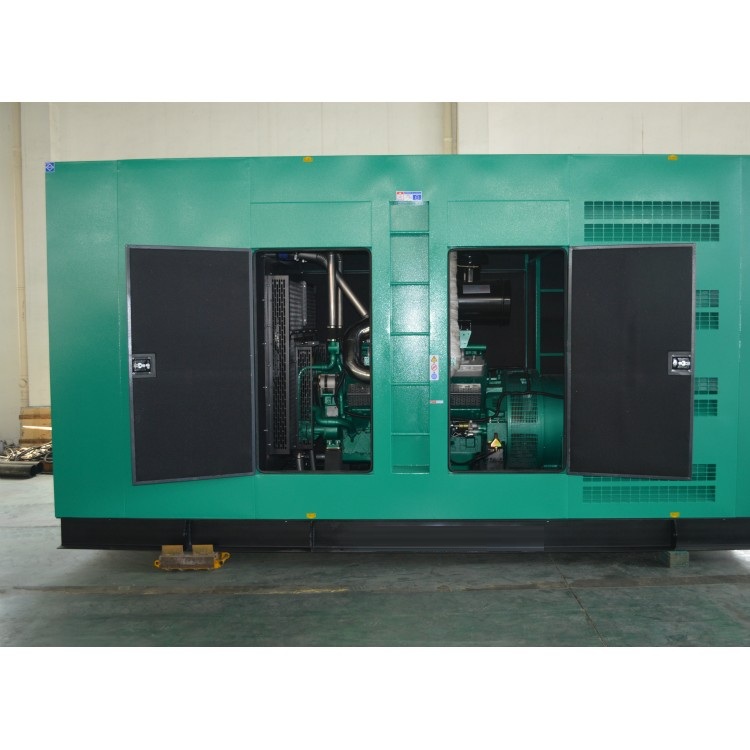

1. Equipped with an access door for installation, observation, maintenance, and operation.

2. Control screens and observation windows are located at the door and other appropriate positions, through which the control panel can be monitored.

3. Lubricating oil drain tubes extend outside the soundproofing cover (for easy replacement of diesel engine lubricating oil).

Four: Low noise, economic and environmentally friendly:

1. The air outlet is a recirculating duct design, ensuring smooth exhaust and heat dissipation.

2. Equipped with a silencer and using advanced, specialized sound-absorbing materials, the unit operates quietly with noise levels below 75dB(A), ensuring it does not disrupt daily life.

3. Simple to operate, convenient, no need to build a machine room, suitable for outdoor use.

4. Equipped with a large fuel tank, providing up to 8-10 hours of operation for the diesel generator set.
