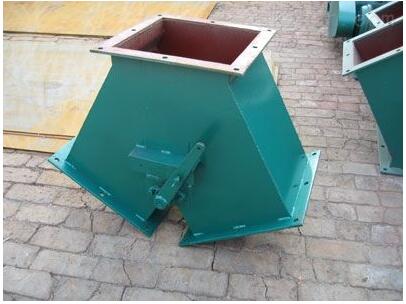

DSF Type Electro-Hydraulic Three-Way Diverting Valve, Discharge Three-Way Chute, Coal Mine Electric Dust Discharging Valve

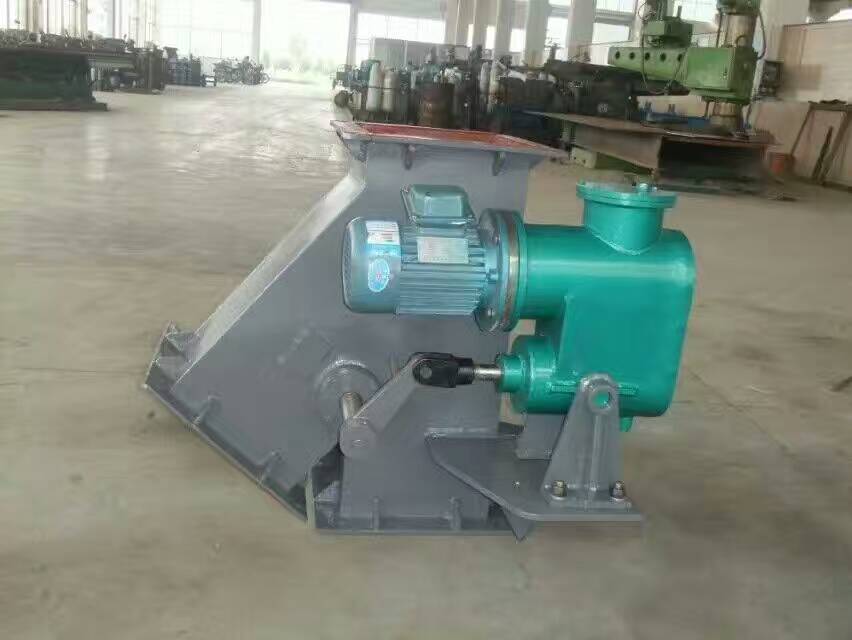

Three-way分流阀分为正、侧两种，available in electro-hydraulic, electric, pneumatic, and manual types. Product Introduction:The DSF-A (B, C, D, E) type electro-hydraulic three-way manifold divider utilizes an electro-hydraulic push rod as its power source. It features automatic overload protection, where if the operation is obstructed, the oil circuit pressure increases to the set limit, and the overflow valve quickly and accurately releases, implementing overload protection. The motor operates within its rated values without burning out. When the push rod reaches the set stroke limit, an automatic locking mechanism is designed in the oil circuit module of the electro-hydraulic push rod, stopping the motor and locking the piston rod in place, maintaining pressure.

The DSF-A (B) type electro-hydraulic three-way diverting valve is suitable for material reversing/diverting processes and allows reversing while material flow is present. The DSF-C (D, E) type electro-hydraulic three-way diverting valve is also used for material reversing/diverting processes and features gate kinetic energy; it simultaneously controls the cutting off or concurrent flow of materials.

Among themDSF-A(B) type electro-hydraulic three-way分流阀 is suitable for material reversing/diversion processes. It allows for directional changes while material flow is present; it also has the kinetic energy of gates; and it controls the cutting off or simultaneous flow of materials.

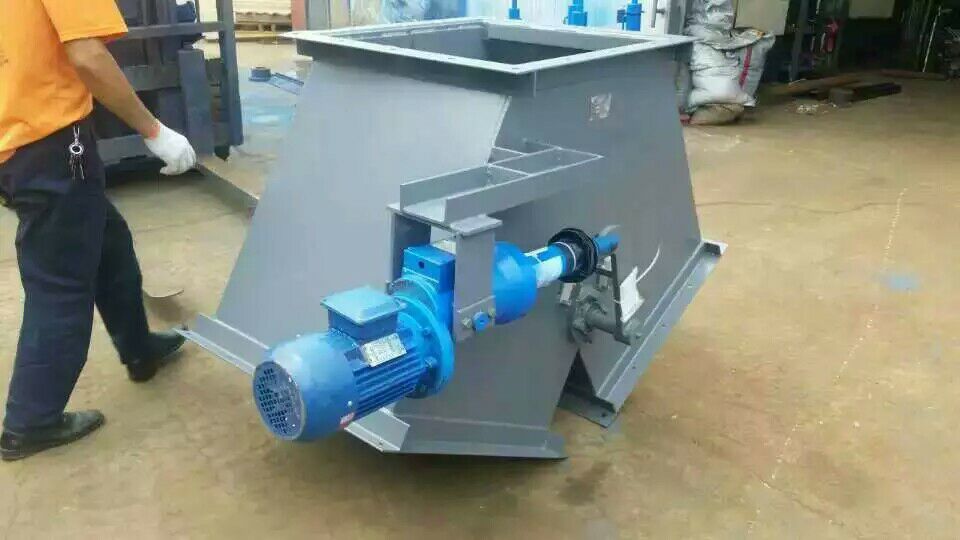

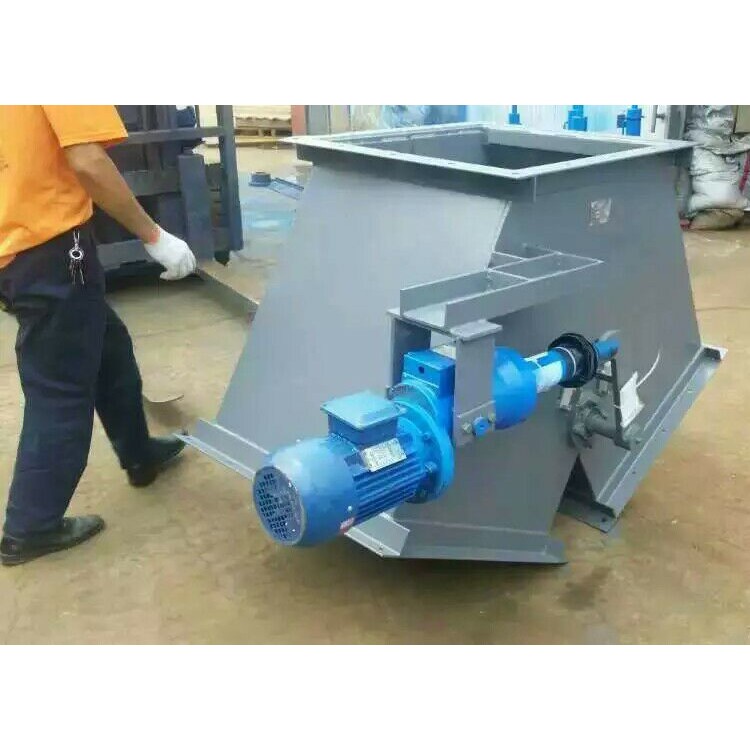

The working principle is to control the flipping of the flip valve by actuating the rotating mechanism of the three-way diverter with an electro-hydraulic rod, thereby achieving the function of changing the material direction.

This product can directly connect the top flange to the hopper below the tape machine head or to the feeding interface of other equipment. It is generally used for applications where the bulk density is less than or equal to2.8t/m, with high abrasiveness and harsh working conditions. Due to its large structural dimensions and weight (thicker wear-resistant lining), the upper flange cannot bear its own weight. Additional support is required based on actual conditions.

1. Electro-hydraulic three-way manifold; compact, lightweight, and low resistance.

2. Smooth operation

3. Low failure rate

4. Quick disconnection of material available.

 Star discharger, screw conveyor, dust humidifier, heavy-duty flip gate valve, electro-hydraulic three-way分流 valve, electro-hydraulic jaw valve, pneumatic sector valve, air ventilation butterfly valve, explosion-proof door, manual plug gate, dust removal frame, dust filter bags, and other full range of dust removal accessories in various models.
