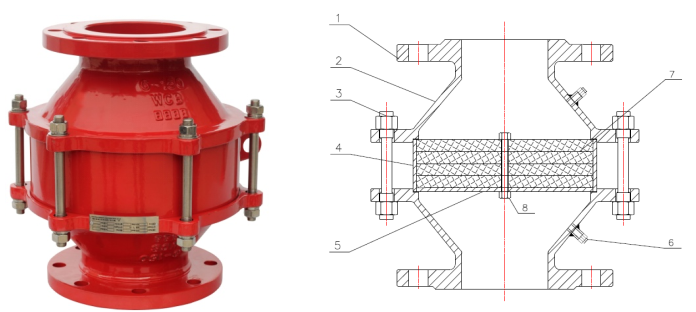

Component Description:

1. Flanged Connection2. Valve body3. Fasteners4. Firestop box5. Fixed panels6. Blow-off port7. Wavy fire-retardant board8. Fasteners

I. Product Introduction

The ADZHQ-B-2 Type Large Cylinder Storage Tank Flame arrester is a safety device installed at the top of atmospheric storage tanks to prevent the spread of flames from flammable gases and liquid vapors, and to guard against backfire that could cause an explosion.

The ADZHQ-B-2 type large-diameter cylinder fire damper is cast, featuring a large cylinder diameter, low pressure drop, high reliability, and easy disassembly. It is commonly paired with breath valves, elbows, and rain caps.

2. Operating Principle

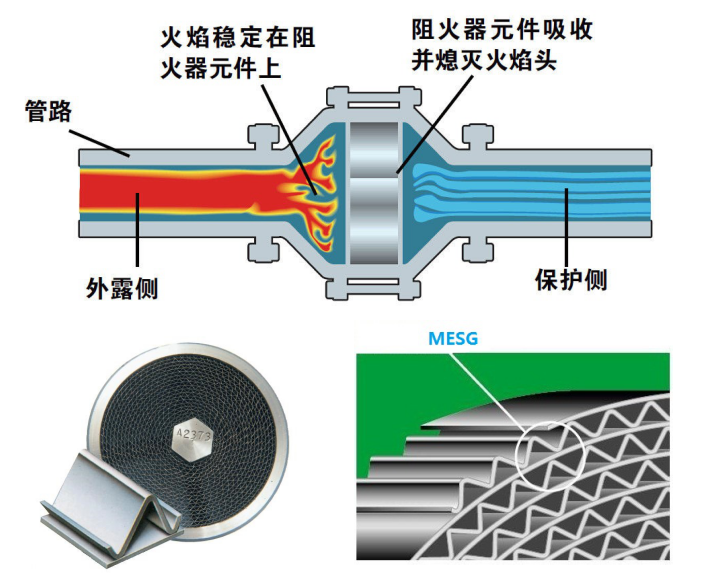

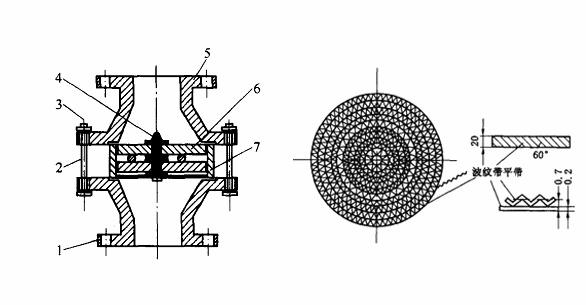

The core of the ADZHQ-B-2 type large-drum fire arrester is the corrugated flame arrester plate, composed of a type of stainless steel material that allows gases to pass through, featuring numerous tiny channels or gaps. The requirement is for the gaps or channels in the corrugated flame arrester plate to be as small as possible. Consequently, upon the flame entering the fire arrester, it is divided into many small flame streams by the flame-retarding elements. Due to the heat transfer effect (cooling of the gas) and the wall effect, the flame streams are extinguished.

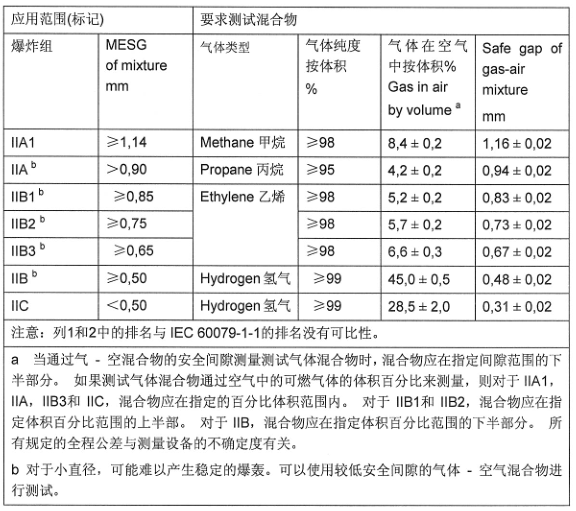

Section 3: Gas Types and Flame arrester Spacing Refer to the Data Table

Four, Product Advantages

1. Provide professional fire arrester calculations and CAD drawings based on the data sheet provided by the customer and the operating conditions.

2. Eddy has obtained the IIA fire damper and patent certificate.

3. The flame arrester components are made of stainless steel corrugated flame arrester plates, featuring compact structure, high flow capacity, low pressure drop, and high reliability.

4. Carbon steel valve bodies are internally and externally coated with anti-rust primer, with an epoxy topcoat applied; stainless steel valve bodies are sandblasted.

5. Packaging is统一in standard wooden crates.

V. Relevant Standards for the Product

• SH/T 3413-2019 --- "Selection, Inspection, and Acceptance of Flame Retardant Devices for Petroleum and Petrochemical Gas Pipelines"

• GB5908-2005——Flame arrester for oil storage tanks

• ISO16852-2016——International Standard for Fire Resistant Cable Tester

• GB/T 13347-2010 ---- "Petroleum Gas Pipeline Flame arrester"

• GB5908-2005--------Flame arrester for oil storage tanks

• HG/T20570-95------- "Technical Specification for Engineering Design of Process Systems"
