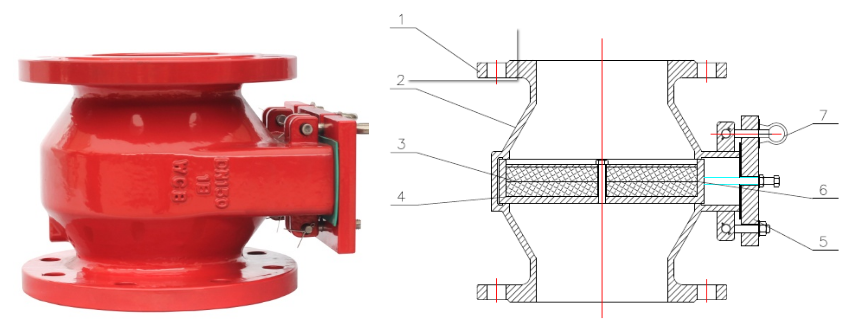

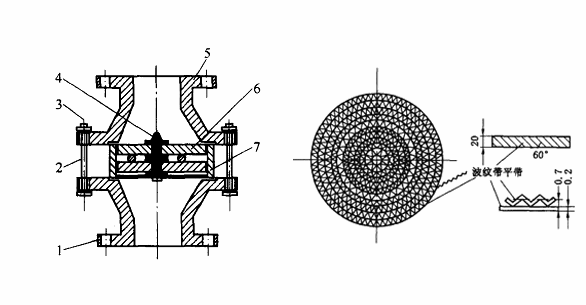

Part Description:

1. Flanged Connection2. Valve body3. Corrugated fire-retardant board4. Fixed panel5. Fire-retardant box door cover6. Fire-retardant box7. Quick-release bolts

I. Product Introduction

The ADZHQ-B-3 drawer-type fire arrester is a safety device installed at the top of atmospheric storage tanks to prevent the spread of flames from flammable gases and liquid vapors, as well as to avoid backfire that could lead to explosions.

The ADZHQ-B-3 drawer-type fire damper is cast, featuring a large cylinder diameter, low pressure drop, high reliability, and easy disassembly. It is commonly used with breathing valves, elbows, and rain caps.

II. Working Principle

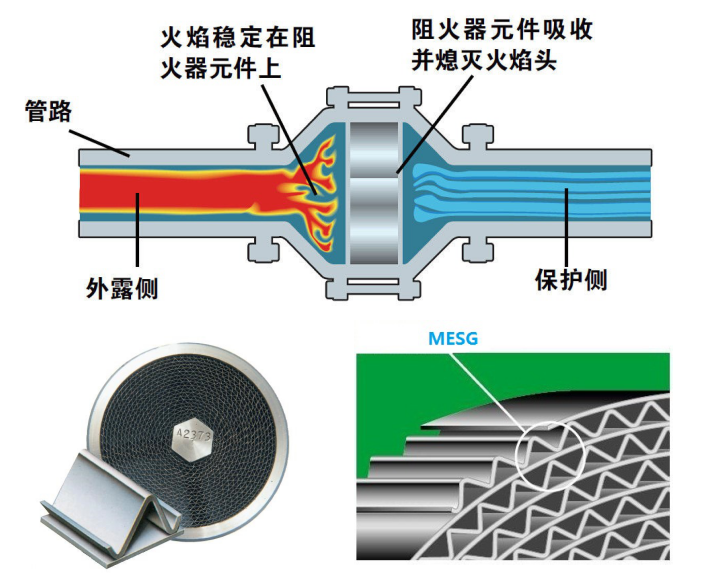

The core of the ADZHQ-B-3 drawer-type fire damper is the corrugated fire damper plate, composed of a type of stainless steel material that allows gas passage and has numerous tiny channels or gaps. The requirement is for the gaps or channels in the corrugated fire damper plate to be as small as possible. Consequently, when flames enter the fire damper, they are divided into many small flame streams by the fire-retarding elements. Due to the heat transfer effect (gas cooling) and the wall effect, the flame streams are extinguished.

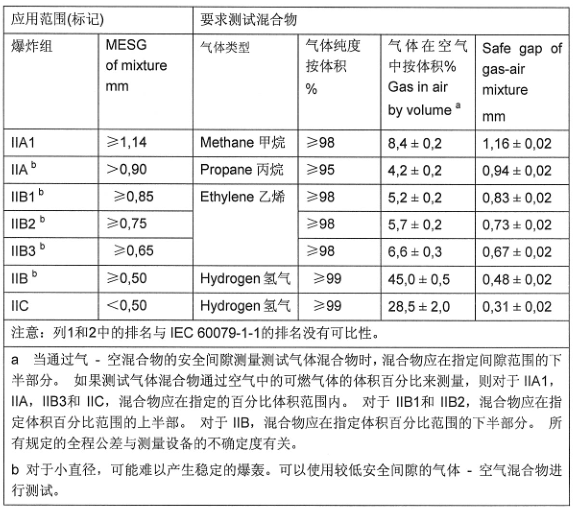

Section 3: Gas Types and Flame arrester Clearance Refer to Data Sheet

Four, Product Advantages

1. Provide professional fire arrester calculation sheets and CAD drawings based on the data table provided by the customer and the operating conditions.

2. Eddy has obtained the Fire Extinguisher IIA certification and the patent certificate.

3. The flame arrester elements are made of stainless steel corrugated flame arrester plates, featuring compact structure, high flow capacity, low pressure drop, and high reliability.

4. Carbon steel valve bodies are internally and externally coated with anti-rust primer, with an epoxy topcoat applied to the exterior; stainless steel valve bodies are sandblasted.

5. Packaging is uniformly done in standard wooden crates.

V. Relevant Regulations Pertaining to the Product

• SH/T 3413-2019 --- "Selection, Inspection, and Acceptance of Flame Retardant Devices for Petroleum and Petrochemical Gas Pipelines"

• GB5908-2005--------"Petroleum Storage Tank Fire Extinguisher"

• ISO16852-2016 ------ International Standard for Fire Resistant Cable Tester

• GB/T13347-2010 ---- Flammability Arrestor for Petroleum Gas Pipelines

• GB5908-2005--------Fire Extinguishing Device for Oil Storage Tanks

• HG/T20570-95 ------- "Technical Code for Design of Engineering of Process Systems"
