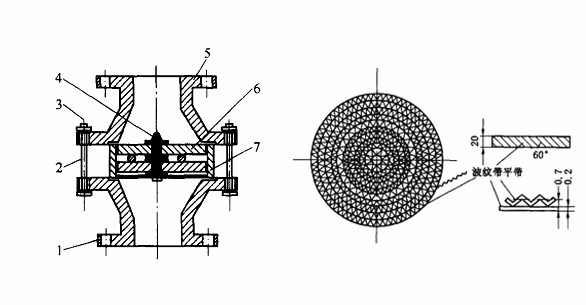

Part Description:

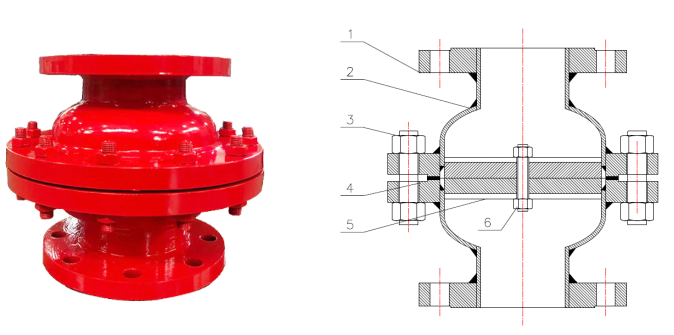

1. Flanged connection2. Valve body3. Fasteners4. Corrugated fire-resistant board5. Fixed plate6. Fasteners

I. Product Introduction

The ADGZJI-2 explosion-suppressing flame arrester is a safety device installed in the channels for conveying and discharging combustible gases, designed to prevent flames from spreading through the pipeline due to backfire. It is primarily composed of a flame arrester layer, housing, gaskets, and connecting parts.

The ADGZJI-2 explosion-proof flame arrester is a welded design with a large cylinder diameter, low pressure drop, high reliability, and easy disassembly.

Section 2: Working Principle

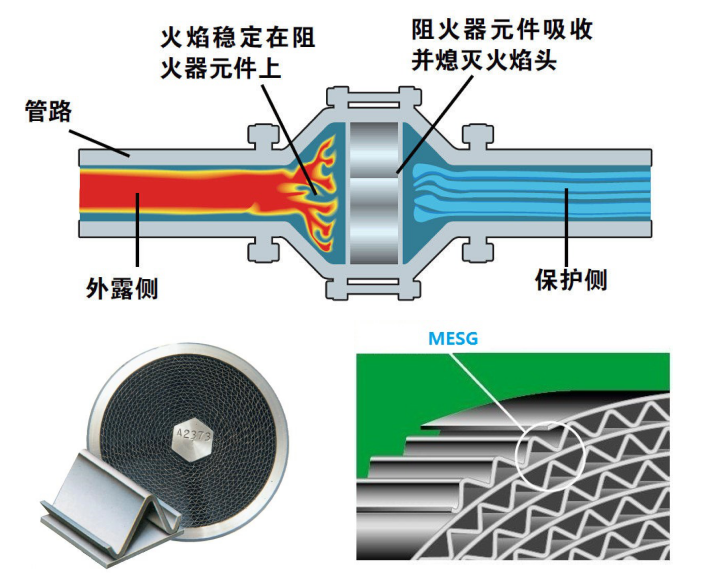

The core of the ADGZJI-2 flame arrester is a corrugated flame arrester plate, made of stainless steel material with numerous tiny channels or gaps that allows gas passage. The requirement is for the gaps or channels in the corrugated flame arrester plate to be as small as possible. Consequently, upon the flame entering the flame arrester, it is divided into numerous small flame streams by the flame arresting elements. Due to the heat transfer effect (gas cooling) and wall effect, the flame streams are extinguished.

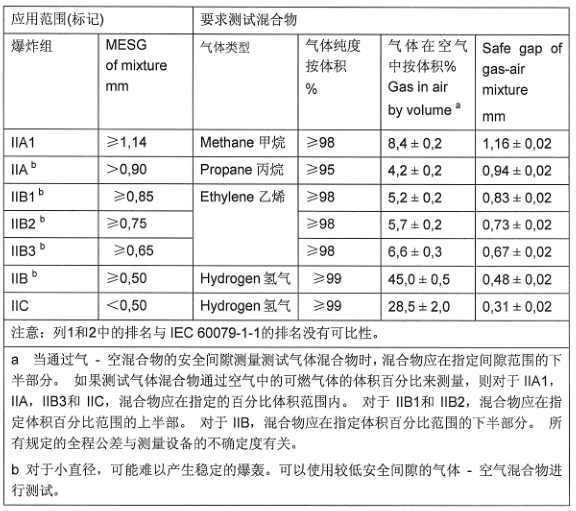

Section 3: Gas Types and Flame Retardant Spacing Refer to the Data Sheet

IV. Product Advantages

1. Provide professional fire arrester calculations and CAD drawings based on the data sheets and operating conditions supplied by the customer.

2. Eddy has obtained the IIA fire extinguisher certification and patent.

3. Fire arrester components are made of stainless steel corrugated flame arrester plates, featuring compact structure, high flow rate, low pressure drop, and high reliability.

4. Carbon steel valve bodies are internally and externally coated with rust-proof primer, with an epoxy topcoat applied; stainless steel valve bodies are sandblasted.

5. Uniformly packaged in standard wooden boxes.

V. Relevant Standards for the Product

• SH/T 3413-2019 --- "Selection, Inspection, and Acceptance of Flame Arresters for Petroleum and Petrochemical Gas Pipelines"

• GB5908-2005 - "Petroleum Storage Tank Fire Extinguisher"

• ISO16852-2016——International Standard for Fire Resistant Cable Tester

• GB/T 13347-2010 ---- "Petroleum Gas Pipeline Fire Extinguisher"

• GB5908-2005——Flame arrester for oil storage tanks

• HG/T20570-95 -- "Technical Specification for Engineering Design of Process Systems"
