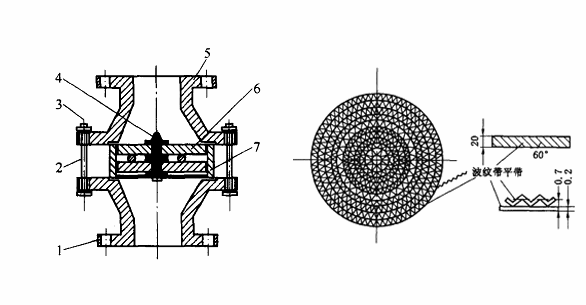

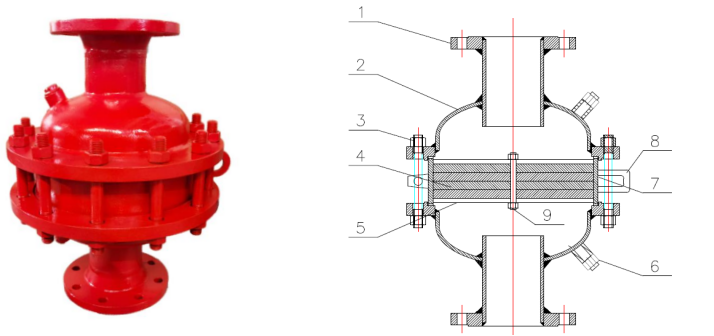

Part Description:

1. Flanged Connection2. Valve body3. Fasteners4. Wavy fire-retardant board5. Fixed plate6. Blow-off port7. Firestop box8. Eyelets9. Fasteners

I. Product Introduction

The ADGZJII-2 explosion-proof flame arrester is a safety device installed in the ducts for conveying and discharging combustible gases, designed to prevent flame propagation and spread through the pipeline due to backfire. It is primarily composed of a flame arrester element, housing, gaskets, and connecting parts.

ADGZJII-2 explosion-proof flame arrester is a welded construction with a large cylinder diameter, low pressure drop, high reliability, and easy disassembly.

Section 2: Working Principle

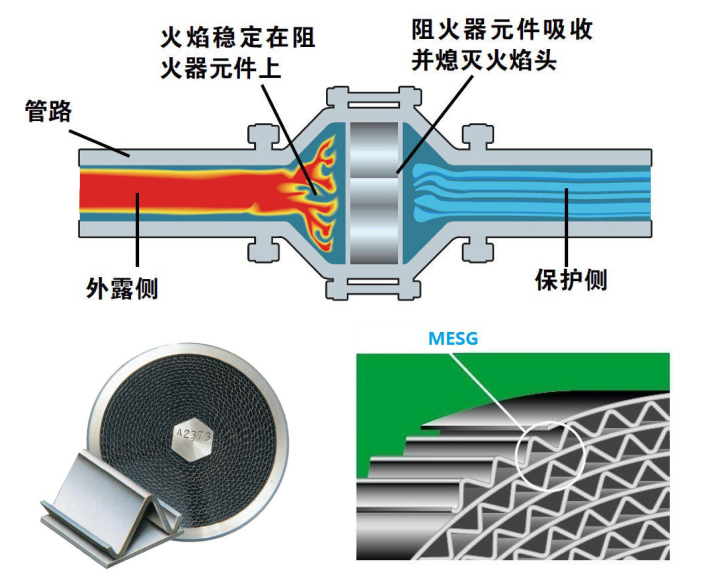

The core of the ADGZJII-2 explosion-suppressing flame arrester is the corrugated flame arrester plate, made of a type of stainless steel material that allows gas passage and features numerous tiny channels or gaps. The requirement is for the gaps or channels in the corrugated flame arrester plate to be as small as possible. Consequently, when the flame enters the flame arrester, it is divided into many small flame streams by the flame arrester elements. Due to the heat transfer effect (gas cooling) and wall effect, the flame streams are extinguished.

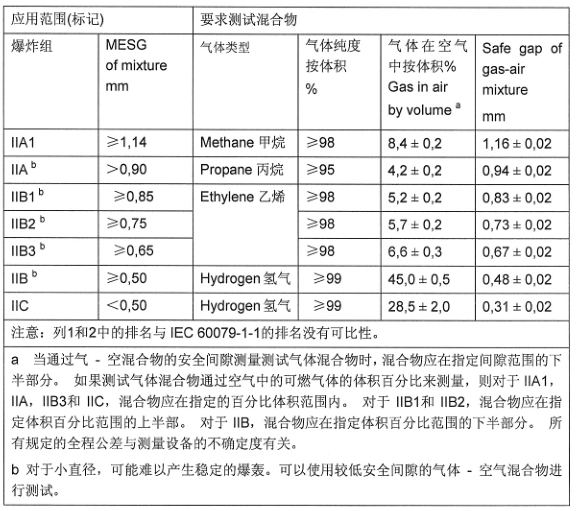

Section 3: Gas Types and Flame Retardant Spacing Refer to the Data Sheet

IV. Product Advantages

1. Provide professional fire arrester calculations and CAD drawings based on the data table provided by the customer and the operating conditions.

2. Eddy has obtained the IIA fire damper certification and the patent certificate.

3. The flame arrester components are made of stainless steel corrugated flame arrester plates, featuring compact structure, high flow capacity, low pressure drop, and high reliability.

4. Carbon steel valve bodies are internally and externally coated with rust-preventive undercoat, with an epoxy topcoat applied externally; stainless steel valve bodies are treated with sandblasting.

5. Packaging is统一 in standard wooden crates.

V. Relevant Standards for the Product

• SH/T 3413-2019 --- "Selection, Inspection, and Acceptance of Flame Retardant Devices for Petroleum and Chemical Industry Pipeline Gas"

• GB5908-2005——Flame Retardant Device for Oil Storage Tanks

• ISO16852-2016------- International Standard for Fire Extinguisher Testing

• GB/T 13347-2010 ---- "Petroleum Gas Pipeline Flame arrester"

• GB5908-2005--------Flame arrester for oil storage tanks

• HG/T20570-95 – Code for Technical Specification of Engineering Design of Process Systems
