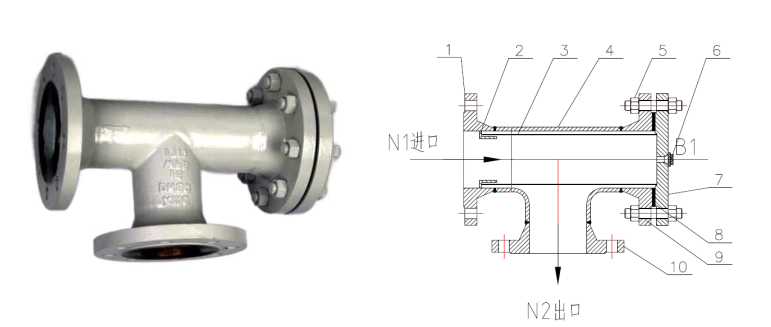

SRTIF Type Flanged Elbow T-Filter
Component Description: 1. Imported Flange; 2. Slope Plate; 3. Filter Core; 4. Valve Body; 5. Fasteners; 6. Drain Port.· 7. Blind flanges; 8. Gaskets; 9. Middle flanges; 10. Outlet flanges.

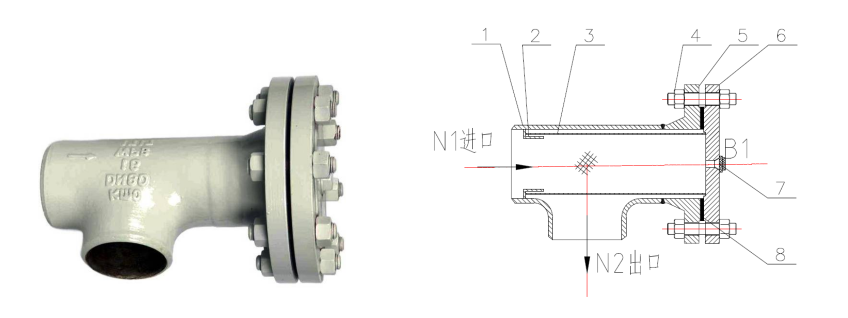

SRTIW Type Direct Welded Elbow T-Filter
Part Description:
1. Valve body; 2. Slope plate; 3. Filter element; 4. Fasteners; 5. Middle flange; 6. Blind plate; 7. Drain outlet; 8. Gasket.
I. Product Introduction
The SRTI Type Regular Crossflow T-Filter is a pipeline coarse filter, suitable for filtering large particles from liquids, gases, or other media. Installed on the pipeline, it can remove larger solid impurities from the fluid, ensuring normal operation and operation of machinery and equipment (including compressors, pumps, etc.) and instruments, achieving stable process operation, and ensuring safe production.
When fluid enters the filter housing equipped with a filter element of a specified mesh size, impurities are trapped, while the clean filtrate is discharged through the filter outlet. When cleaning is required, simply remove the detachable filter element, clean it, and reinsert it. Thus, maintenance is extremely convenient.
II. Product Advantages
1. The SRTI type right-hand T filter is manufactured using welding technology, composed of standard seamless tees and welding flanges.
2. The baffled T-type filter is typically installed at the right angle of the pipeline, featuring a small footprint, easy cleaning, and cost savings.
3. T-type filter valve bodies are sandblasted, and carbon steel requires two coats of primer and topcoat.
4. Packaging is uniformly done in standard wooden boxes.
Section 3: Installation Precautions
Install according to the arrow direction on the filter tube.

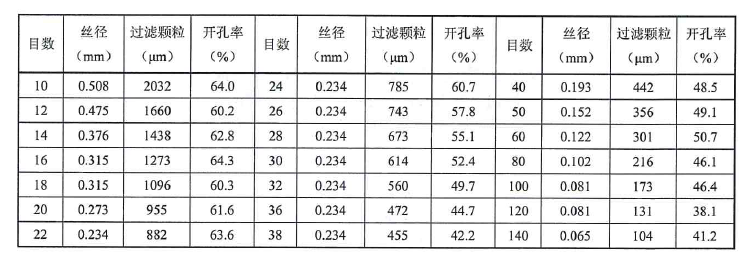

Section 4: Common Metal Wire Mesh Specifications Table

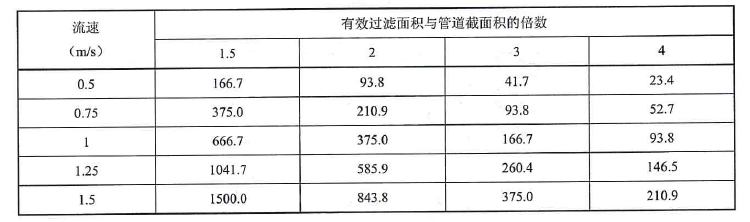

V. Pressure Drop Value of T-Type Filter
* Unit: Pa.
Section 6: Relevant Standards for the Product
• SH/T 3411-2017--------- "Selection, Inspection, and Acceptance Standard for Filters Used in Petrochemical Pumps"
• HG/T21637-2011--------"Chemical Pipeline Filter Series"
• GB/T5330-2003---------- "Industrial Metal Wire Woven Square Mesh Sieve"
• GB/T14382-2008——Pipe Filter for Three Pass
• SH/T3059-2012 -------------- Specification for Selection of Design Equipment for Petroleum Chemical Pipeline
