SRTIIIF Type Flange Connected DC T-Type Filter

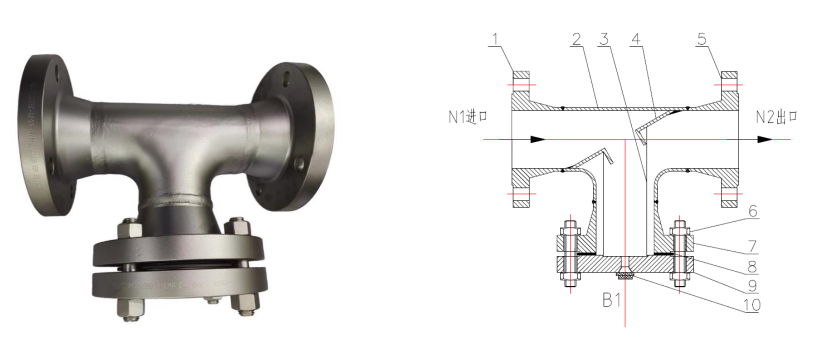

Part Description:

1. Imported Flanges 2. Valve Body 3. Filter Cartridge 4. Slope Plate 5. Export Flanges 6. Fasteners7. Mid-section Flange; 8. Gasket; 9. Blind Plate; 10. Drainage Port;

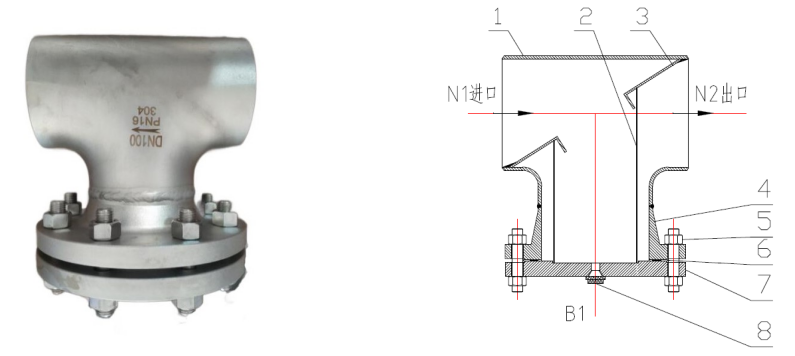

SRTIIIW Type Direct-Welding Direct Current T-Shape Filter

Part Description:

1. Imported Flanges 2. Valve Bodies 3. Filter Cartridges 4. Inclined Plates 5. Export Flanges 6. Fasteners7. Mid-section Flange; 8. Gasket; 9. Blind Plate; 10. Drainage Port;

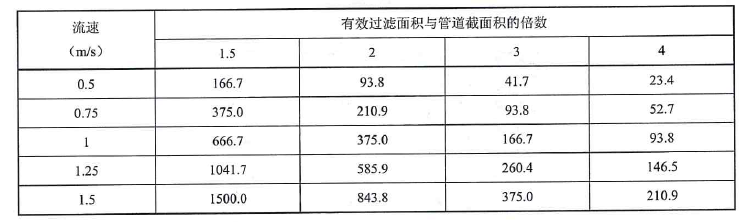

Section 5: Pressure Drop Value of T-Type Filter

*Unit: Pa.

VI. Relevant Regulations Regarding the Product

• SH/T 3411-2017---------"Specification for Selection, Inspection, and Acceptance of Filters for Petroleum Chemical Industry Pumps"

• HG/T21637-2011--------"Chemical Pipeline Filter Series"

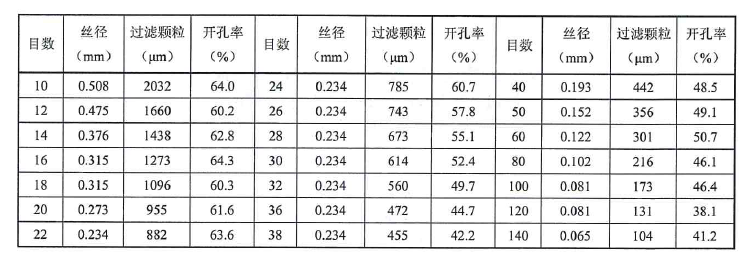

• GB/T5330-2003---------- "Industrial Metal Wire Woven Square Mesh Sieve"

• GB/T14382-2008——Pipe Use Triple Filter

• SH/T3059-2012 --------------- Specification for Selection of Design Equipment for Petroleum Chemical Pipeline
