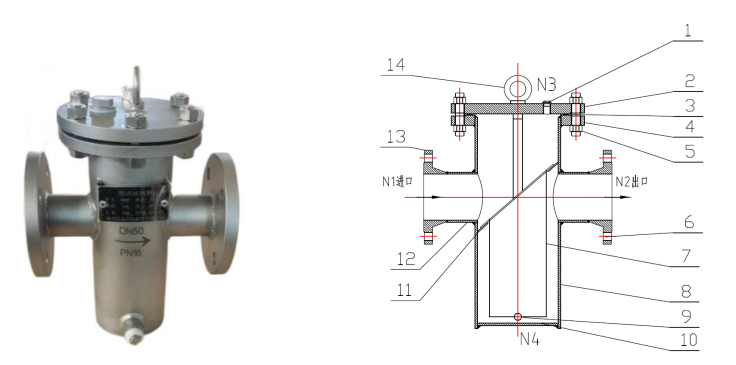

Part Description:

1. Exhaust Port 2. Cylinder Blind Plate 3. Gasket 4. Cylinder Flange 5. Fasteners 6. Outlet Flange 7. Filter Basket 8. Cylinder 9. Bleed Port 10. Base Plate 11. Slope Plate 12. Inlet and Outlet Connections 13. Inlet Flange 14. Lifting Ring

I. Product Overview

The SRBIF type straight-through flat-bottomed basket filter is a pipeline coarse filter, suitable for filtering large particle matter in liquids, gases, or other media. Installed on pipelines, it can remove larger solid impurities from fluids, ensuring that machinery and equipment (including compressors, pumps, etc.) and instruments operate normally, stabilizing the process and ensuring safe production.

When fluid enters the filter housing equipped with a specified mesh filter, impurities are blocked, while the clean filtrate is discharged from the filter's outlet. When cleaning is required, simply remove the detachable filter housing, clean it, and then reassemble it. Thus, the maintenance process is extremely convenient.

The basket filter has a larger filtering area compared to Y-type and T-type filters, which can prevent frequent cleaning of the filter element and ensures a more stable filtering effect during use.

II. Product Advantages

1. The SRBIF type straight-through flat-bottomed basket filter is manufactured using welding technology, consisting of a connector, main pipe, filter basket, flange, flange cover, and fasteners, etc.

2. The basket-type filter has a large filtering area, with a low frequency of cleaning and replacing the filter element, significantly reducing labor costs and also minimizing potential hazards during the replacement process.

3. Basket filter appearance is blast cleaned or polished; carbon steel material requires two coats of primer and topcoat.

4. Packaging is统一done in standard wooden crates.

Section 3: Installation Precautions

Install the pipeline according to the arrow indicated on the valve body.

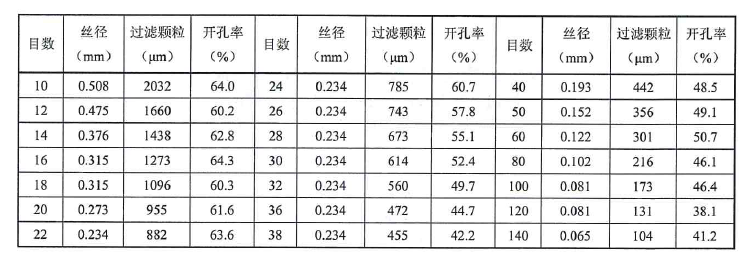

Section 4: Common Metal Wire Mesh Specifications Table

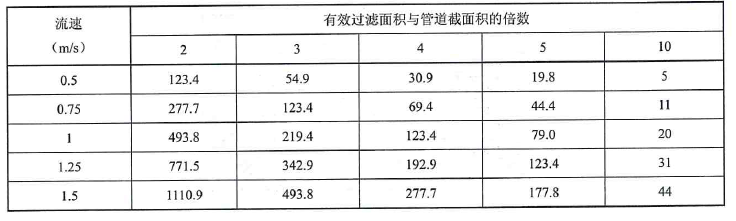

V. Pressure Drop Value of the Basket Filter

*Unit: Pa.

VI. Relevant Regulations Pertaining to the Product

• SH/T 3411-2017------- "Selection, Inspection, and Acceptance Standard for Filters Used in Petroleum and Chemical Industry Pumps"

• JB/T7538-2016——Pipe Basket Filter

• HG/T21637-2011--------"Chemical Pipeline Filter Series"

• GB/T5330-2003---------- "Industrial Metal Wire Woven Square Mesh Screen"

• GB/T14382-2008 - Pipe Three-way Filter

• SH/T3059-2012 -- Specification for Selection of Equipment for Petroleum Chemical Pipeline Design
