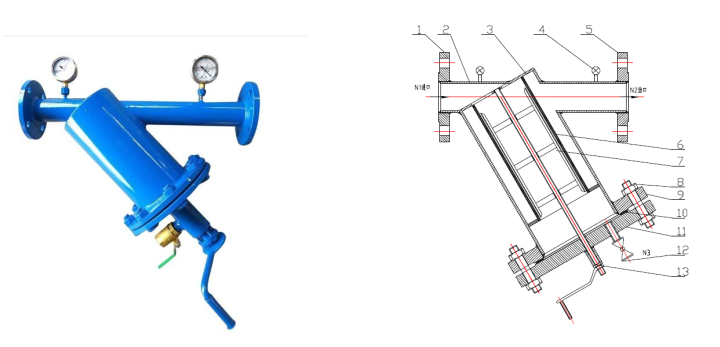

Part Description:

1. Imported Flanges 2. Import/Export Fittings 3. Cylinder 4. Import/Export Pressure Gauge 5. Outlet Flange 6. Filter Cartridge 7. Brush 8. Fasteners9. Cylinder Flange; 10. Gasket; 11. Cylinder Blind Plate; 12. Bleeding Port; 13. Hand Crank Mechanism.

I. Product Introduction

To overcome the inconvenience of cleaning existing filters, our company has developed the SSY manual brush filter. This filter eliminates the need to disassemble components such as the filter cylinder and mesh, allowing for direct cleaning of impurities from the filter on the pipeline without shutting down the system or initiating a backup process. It ensures continuous water supply and maintains the quality and quantity of filtered water, providing convenience and efficiency.

The SSY type hand-crank brush filter is primarily composed of components such as the cylinder, end cap, filter cylinder, filter mesh, stainless steel brush with a handle, drain valve, and pressure gauge. The end cap is connected to the cylinder with bolts, the filter cylinder is installed inside the cylinder, and the filter mesh is inside the filter cylinder. There is also a rotating shaft inside the filter mesh, with brushes mounted on it, which are tightly pressed against the filter mesh. The rotating shaft has a crank handle outside the cylinder, and there is a drain valve at the connection between the end cap and the rotating shaft, typically a manual ball valve. When it's necessary to clean the filter mesh of impurities, turn the crank handle to rotate the shaft and brush, which will brush the impurities off the filter mesh. Simultaneously, open the drain valve, and under the pressure of the pipeline medium, the impurities will be discharged through the drain valve, completing the cleaning process.

Section II: Product Advantages

1. The SSY type hand-crank brush filter allows for online cleaning of the filter mesh, ensuring production continuity, reducing safety hazards during disassembly, and cutting labor costs.

2. The SSY type hand-crank brush filter features Johnson filters, which are robust and durable, and easy to clean.

3. The SSY type hand-cranked brush filter is blast cleaned or polished. Carbon steel requires two coats of primer and topcoat.

4. Packaging is统一 in standard wooden crates.

Section 3: Installation Precautions

The hand-crank brush filter can be installed horizontally or vertically. However, attention should be paid to ensure that the water flow direction aligns with the arrow direction on the housing. When installed vertically, the water flow should be from top to bottom.

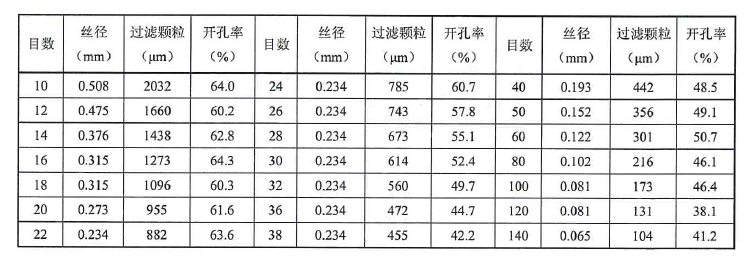

Section 4: Common Metal Wire Mesh Specifications Table

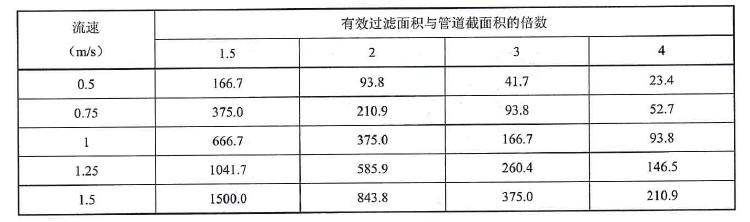

Section 5: Pressure Drop Value of Hand-Cranked Brush Filters

*Unit: Pa.

Section 6: Relevant Standards for the Product

• SH/T 3411-2017-------- Specification for Selection, Inspection, and Acceptance of Filters for Petroleum Chemical Pumps

• HG/T21637-2011--------"Chemical Pipeline Filter Series"

• GB/T5330-2003 ---------- Industrial Metal Wire Woven Square Mesh Sieve

• GB/T14382-2008--------Pipe Three-way Filter

• SH/T3059-2012-----------"Code for Selection of Equipment for Petroleum and Chemical Pipeline Design"
