I. Product Overview

The ADSB type plate-and-frame filter is suitable for solid-liquid separation in various suspended liquids. The suspended liquid is pumped into each sealed filter chamber of the filter machine. Under pressure, the filtrate passes through the filter layer and filter cloth, and is discharged through the outlet of the filter cloth. The filter cake is formed within the filter frame, leaving the filter residue. This product is widely used in industries such as food, chemicals, environmental protection, and water treatment.

Section 2: Product Advantages

1. The ADSB type plate-and-frame filter has a wide application range and is easy to operate.

2. The ADSB type plate-and-frame filter offers high flow rate and short filtration cycles, with a flow capacity up to 15T/h, significantly enhancing work efficiency.

3. The ADSB type plate frame filter occupies less space, has a larger filtering area, and can hold a larger volume of filter residue in one go, thus saving the process of opening and cleaning in between.

4. The ADSB type plate and frame filter is suitable for various filter media, and additional sealing design can be added to prevent material leakage.

5. Filter Appearance: Stainless steel polished finish, PP material glossy treatment.

6. Packaging is unified with standard wooden crates.

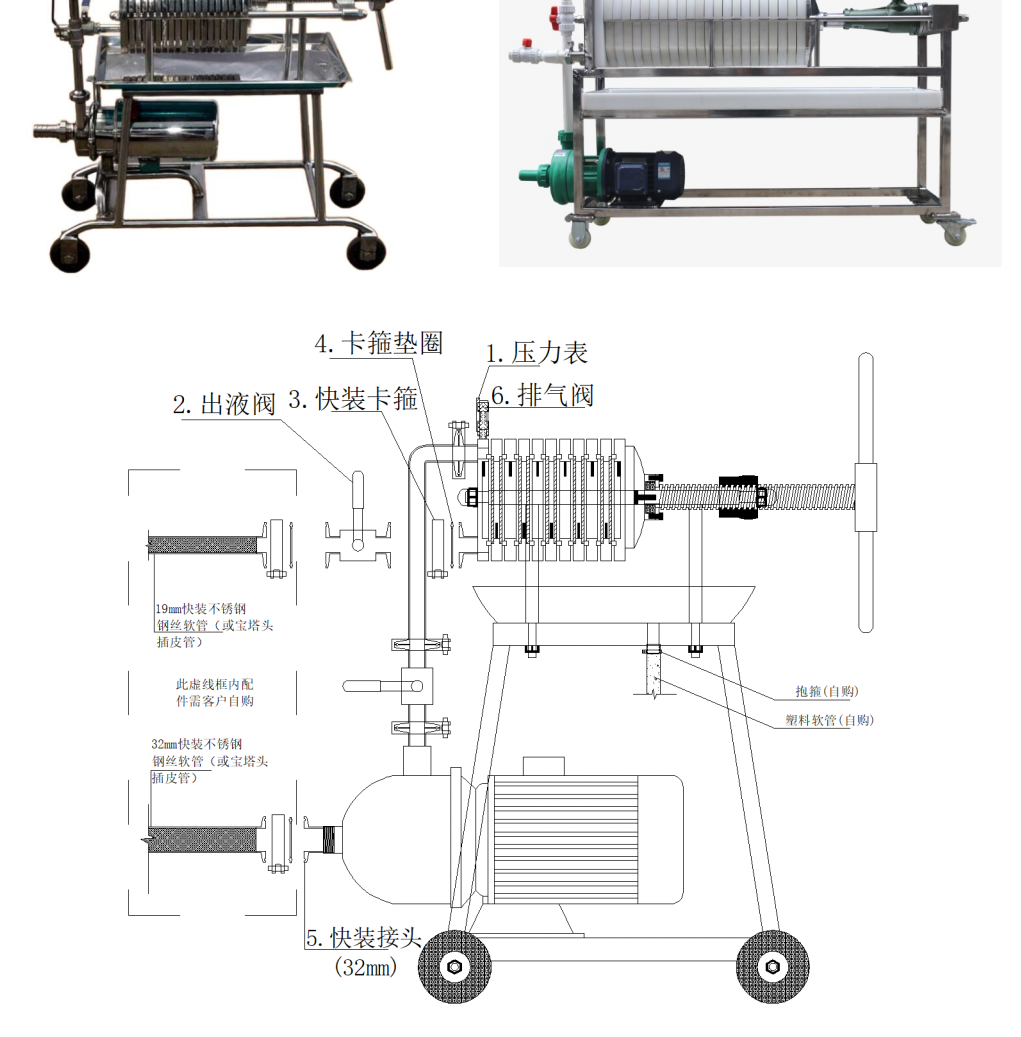

III. Installation Precautions

Horizontal installation, connect the pipeline according to the valve body inlet and outlet markings.

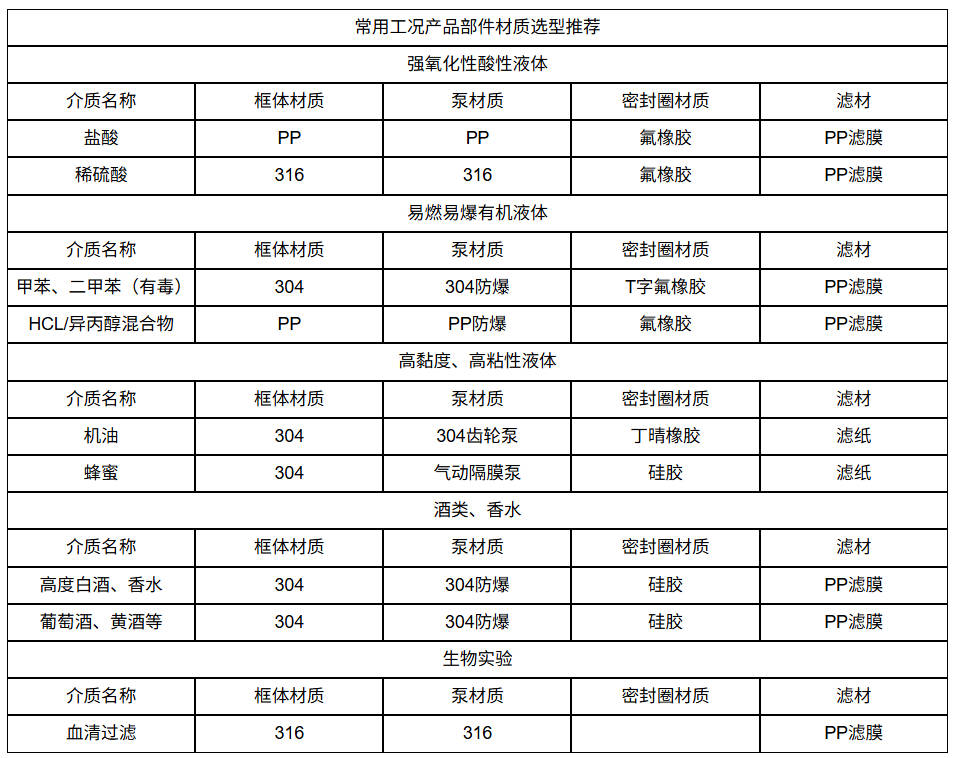

Section 4: Recommended Common Operating Conditions

V. Filter Material Introduction

Nylon filter cloth: Light and thin texture, high precision level, even yarn diameter, smooth surface, large impurities retained, small impurities pass through, good transparency. (200-400 mesh)

2. Stainless Steel Wire Mesh Filter Fabric: Withstanding high temperatures and corrosion resistance, it is washable multiple times and an excellent choice for pre-filtration in materials with high impurity content. (200-400 mesh)

3. Oily Filter Paper: Peanut oil, soybean oil, etc., for edible oil filtration; Water Filter Paper: Traditional Chinese medicine oral liquid, biological experiment filtration; Quick Filter Paper: Industrial heavy oil, chemical industry filtration.

4. Filter plates are suitable for coarse filtration of high-viscosity liquids, pre-coated support filtration of filter aids, and polishing, clarification, and fine filtration in various industries.Commonly used for oils, wines, juices, etc.

5. PP Membrane: Made from polypropylene, this product is formed by winding continuous polypropylene long fibers produced through meltblowing technology. It boasts high filtration precision, large flow rate, uniform structure, high pollution capacity, and long service life. It has excellent chemical compatibility, is additive-free, and the fibers are not easily shed.
