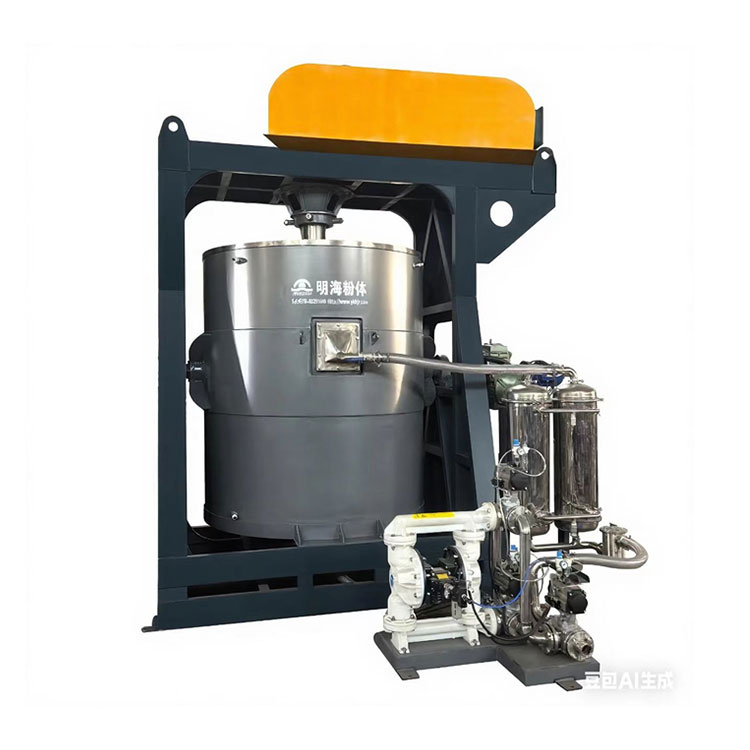

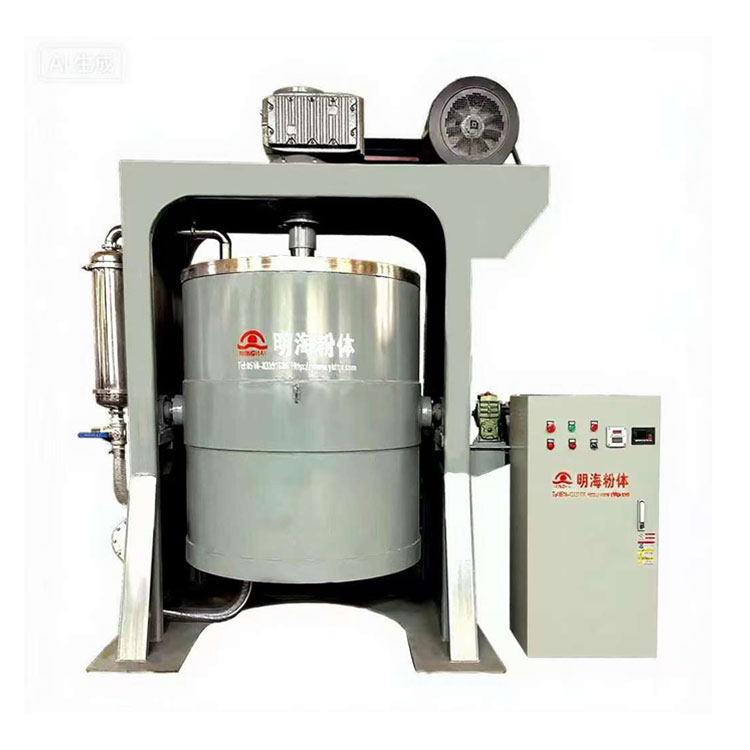

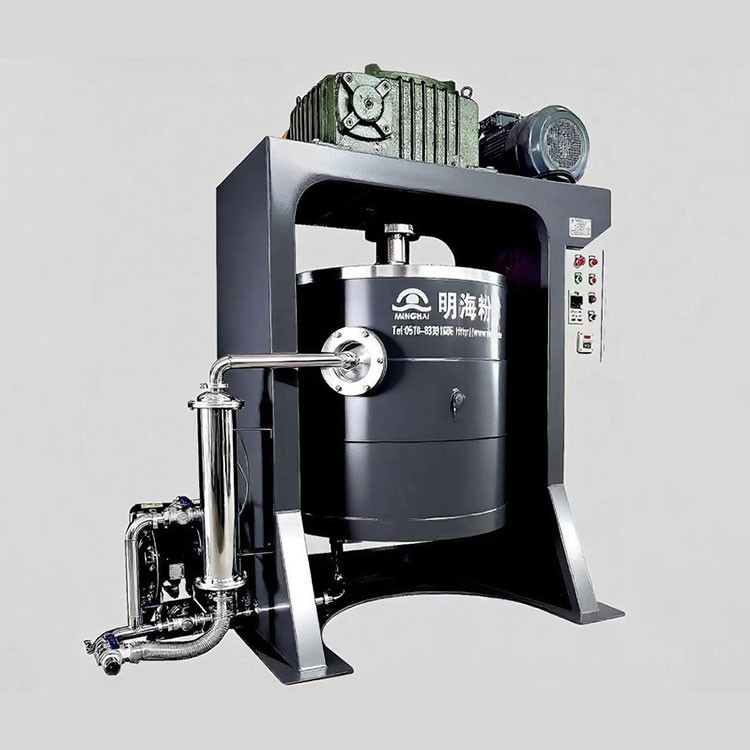

AXT Series Mixing Ball Mill

Product Overview:
Vertical ball mill is an efficient grinding equipment, widely used in industries such as chemicals, mining, building materials, electronic materials, ceramics, etc. It can finely grind and disperse various materials to meet the requirements of different production processes for particle size. It is mainly composed of key components such as the drum, stand, agitator, driving unit, and pneumatic diaphragm pump (available on some models).

Operating Principle:
During operation, the drive unit powers the agitator to rotate at high speed, causing the agitator to stir the grinding medium in a涡流 pattern within the drum. Under the action of compressive forces, shearing forces, and collision forces generated by the movement of the grinding medium, the material is continuously ground and crushed to achieve the desired grinding effect. Simultaneously, the stirring shaft drives the grinding medium for forced mechanical shearing and grinding, as the material is pumped from the bottom filter screen of the mill drum through pipes to the top of the mill cylinder, ensuring thorough contact and grinding. This completes one cycle, which is repeated until the desired fineness is achieved.

Product Features
1. Grinding: The special design of the mixer ensures a rational path for the steel balls, resulting in intense impacts of the grinding medium, significantly enhancing the grinding efficiency. It can grind materials to the desired fineness in a shorter period of time, with production rates several times that of traditional drum ball mills.
2. Wide Application Range: Suitable for high viscosity and difficult-to-grind materials; can also process materials of different hardness, shapes, and properties, meeting diverse production requirements.
3. Excellent homogenization effect: The grinding drum has no dead corners, ensuring that materials are fully and evenly processed during grinding, guaranteeing stable product quality and uniform particle distribution.
4. Easy Operation: The equipment features a compact overall structure with a straightforward and easy-to-understand operation process. The control system is designed with user-friendliness in mind, facilitating worker operation and parameter settings, thereby reducing labor costs and intensity.
5. Special agitator shaft structure: Increases the collision rate of grinding media, enhancing the number of grinding cycles, and further improving the grinding effect, allowing the material to be ground and refined more thoroughly.
6. Easy production adjustment and control: Highly adaptable to various raw materials, it can flexibly meet different production process requirements by adjusting parameters such as the stirrer speed, grinding time, and the ratio of material to grinding medium.
7. Superior cooling performance: Equipped with a double-shell design (except for aluminum oxide lining) and a special cooling circulation system, it effectively dissipates heat generated during the grinding process, preventing material from undergoing property changes due to high temperatures. Particularly suitable for grinding heat-sensitive materials; also features fast discharge, easy cleaning, and convenience for material changeover and equipment maintenance.

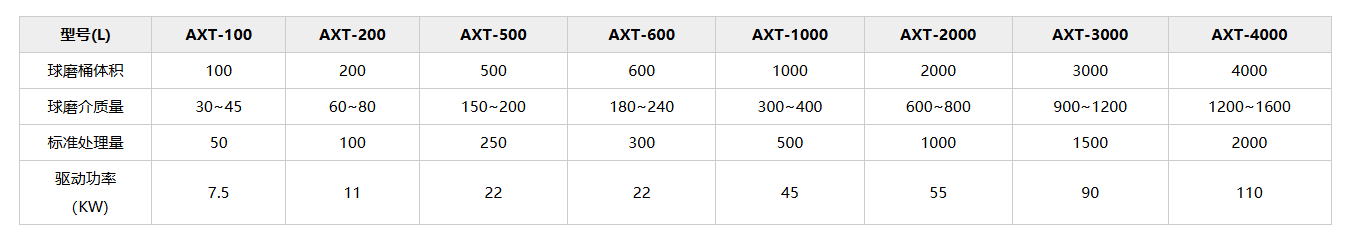

Technical Specifications:
