E-Series Material Storage Tank Blender
The E-type material blending machine is user-friendly, fast, and offers excellent mixing results. It is widely used in a variety of industries such as magnetic materials, powder metallurgy, welding materials, pharmaceuticals, chemicals, food, electronics, and ceramics, making it an ideal mixing equipment.
Operating Principle
This equipment is a self-developed product of our factory. It uses mechanical grippers to lift and secure the material tank, then the base automatically raises, allowing the tank to rotate 360 degrees. Since the tank is made with a single cone shape, as the mixing frame rotates, the material undergoes decomposition to combination and back, with horizontal forces acting due to the different material planes, further promoting lateral material interaction. This results in a horizontal and radial mixing of the material, with decomposition and combination occurring simultaneously, achieving an extremely even mixing effect.

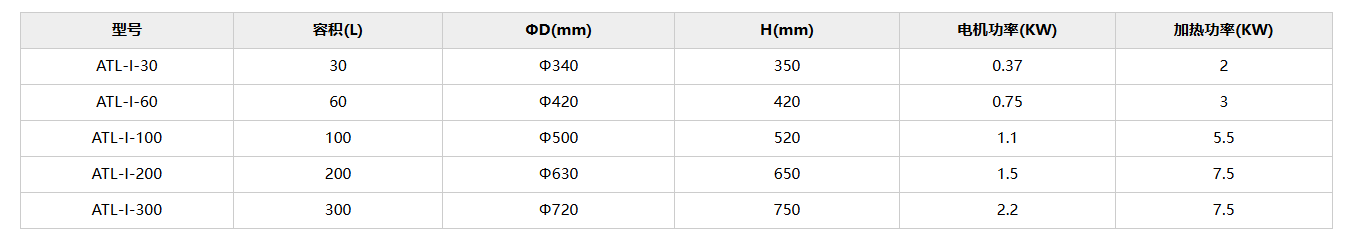

Technical Specifications:
