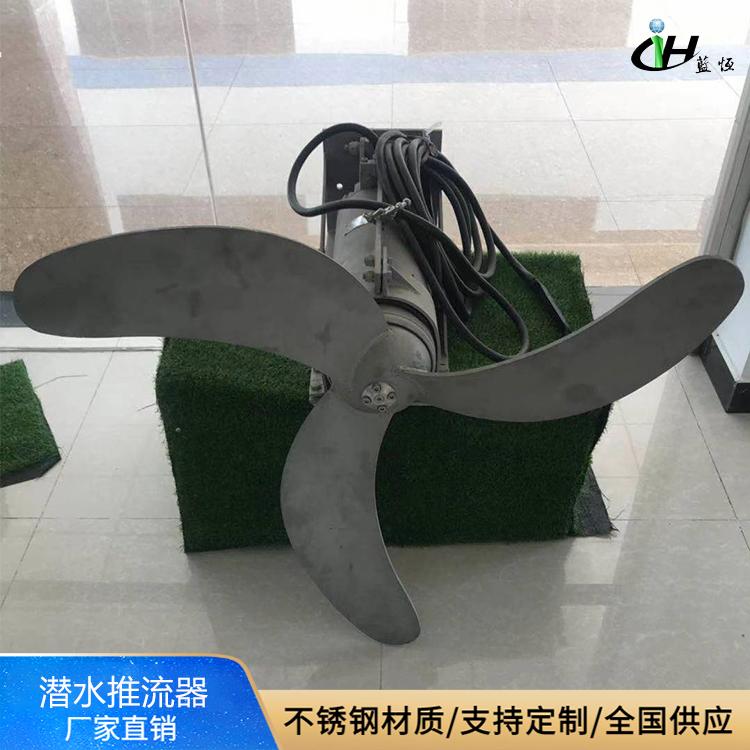

High-speed Submersible Flow Injector

LanhengBrandDive Propulsion DeviceIs引进GermanySealed with diving motor technology assembly. After years of practical exploration, thanks to its innovation in form, structure, and testing methods, Blue恒Diving Propulsion DeviceOverall performance has reached the level of similar products internationally.
  QJBTypeDiving ImpellerIt can be divided into two major series: mixed agitation and low-speed plug flow.
  The Mixed Series Agitators are suitable for mixing suspended liquid in wastewater treatment plants and industrial processes.

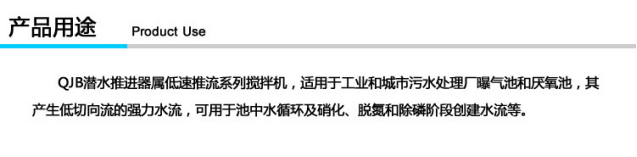

  Low-speed Turbulence Series Mixers are suitable for industrial and urban wastewater treatment plant aeration basins.and oxidation ditch,AAOPoolsA2OPonds, Anaerobic Ponds, Anaerobic PondsIts powerful water flow generates low-tangential flow, which is suitable for creating water currents in the stages of circulation, nitrification, denitrification, and phosphorus removal.

Application Scope:

  The blender should be capable of normal continuous operation under the following conditions:
  1Medium temperature not exceeding40°C；
  2MediumPHValue at5~9Please provide the Chinese content to be translated.
  3Liquid density does not exceed1150kg/m3；
  4Long-term dive operations, dive depths generally do not exceed20m。

Key Points to Note:

  Submersible mixerMust be fully submerged in water for work; cannot operate in environments with flammable, explosive, or highly corrosive liquids; steel expansion bolts must be securely fastened according to specifications; after installation, the cables must be pulled and securely fastened..
  Diving Propulsion DeviceWhen selecting, the diameter of the pulp blades exceeds2MIt is recommended to use a gearbox reducer..

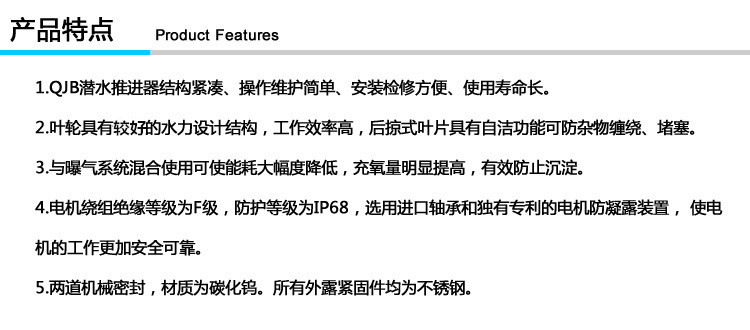

Performance Features:

  1Compact structure, easy operation and maintenance, convenient installation and repair, and long service life.
  2The impeller features an excellent hydraulic design structure, high work efficiency, and backward-curved blades with self-cleaning capabilities, preventing debris entanglement and blockage.
  3Using it in combination with an aeration system can significantly reduce energy consumption, increase oxygenation levels明显, and effectively prevent sedimentation.
  4Motor winding insulation gradeFGrade, Protection Grade:IP68Selecting anti-condensation devices for bearings and motors ensures safer operation of the motor.
  5Two mechanical seals; the mechanical seals are made of carbonizedSiliconThe material has been sealed, with the rubber being fluoro rubber.

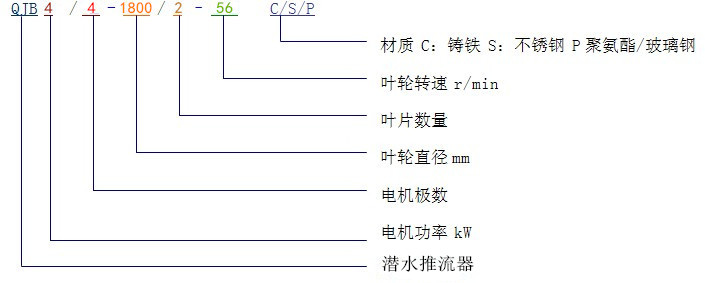

Model Representation Method:

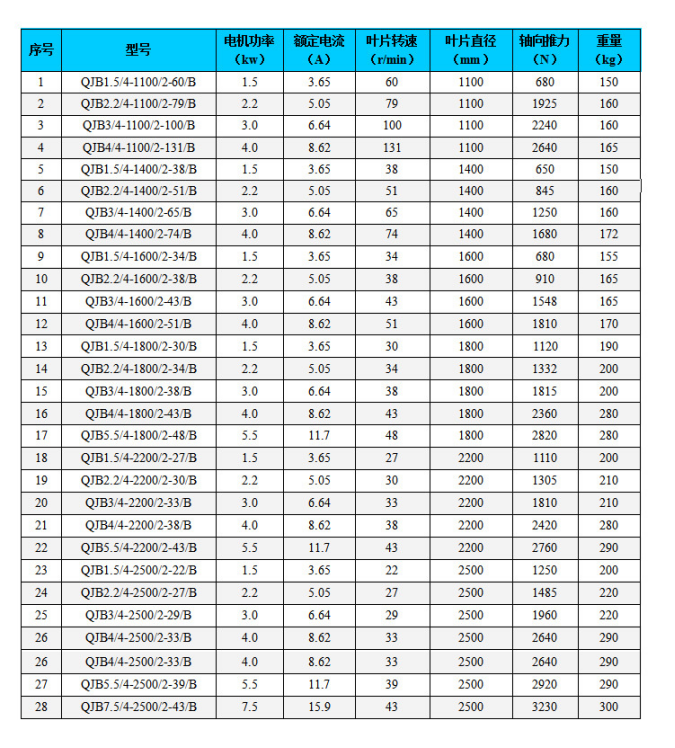

Performance Parameters:

  Mixers at rated voltage380VFrequency:50Hz,Winding insulation gradeFGrade, Protection LevelIP68Work systemⅠUnder the conditions.
