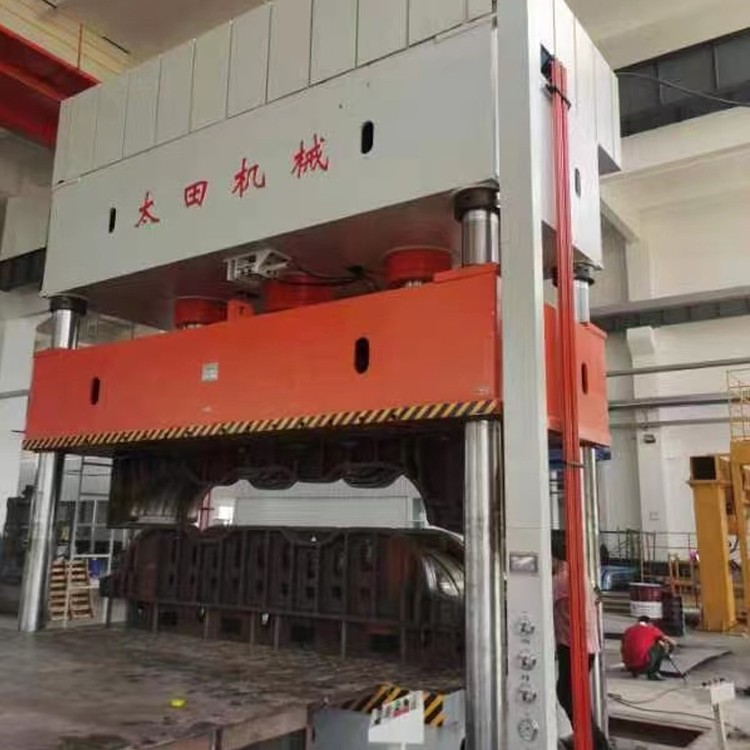

Single-acting hydraulic press

Performance Features:

New generation servo-driven hydraulic press; features a servo dual-body motor-pump system replacing the traditional hydraulic electrical system.

Reduce electricity consumption by 50%, hydraulic oil by 50%, and noise by an average of over 20dB.

Discontinue the electro-hydraulic proportional system, simplify the hydraulic system for higher reliability and ease of maintenance;

Servo motor and pressure sensor for closed-loop pressure control, servo motor and displacement sensor for closed-loop position control, achieving all parameters' numerical control.

Mold parameter storage function, fault diagnosis function;

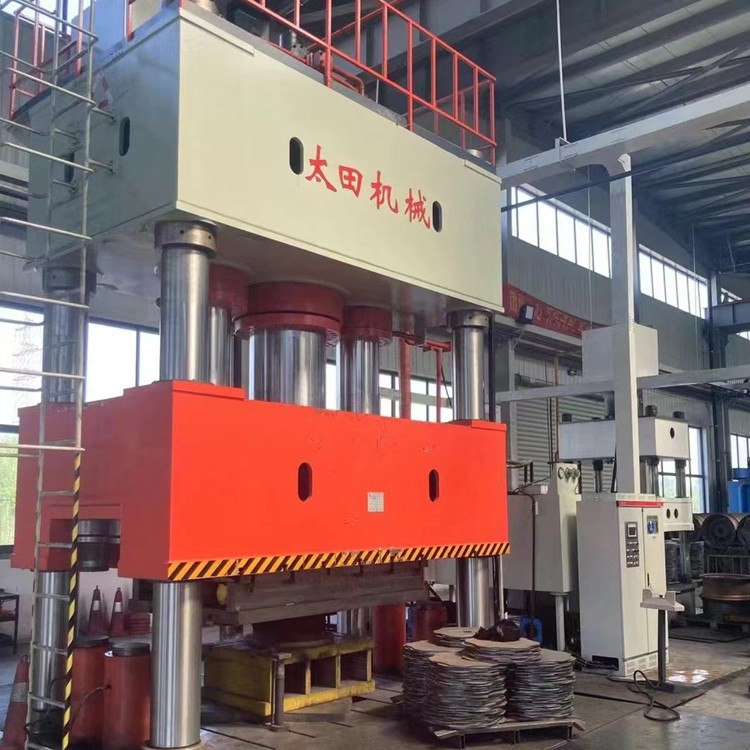

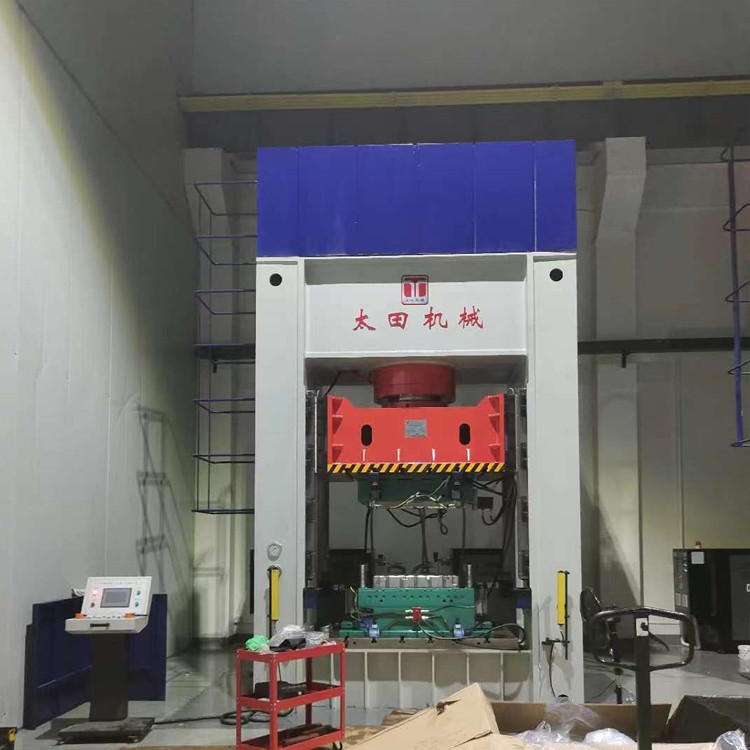

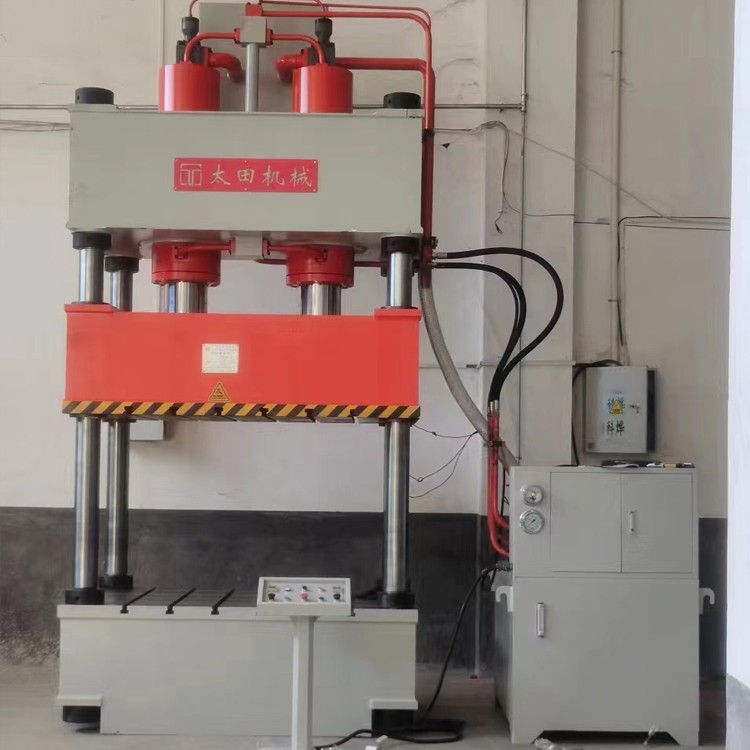

Two structural options available: Split frame structure, four-column structure.

Complete safety devices and control systems

Application Fields:

Suitable for various stamping processes such as stretching, bending, forming, blanking, and flanging, particularly applicable in the following fields:

Automotive Parts: Body panels, brake pads, fuel tanks, undercarriages, axle housing, bumpers, etc.

Household Appliances: Washing machine parts, rice cooker parts, TV parts, refrigerator parts, etc.

Kitchenware; washing machine trays, utensils, stainless steel items, other various containers;

Others: Tractors, motorcycles, aerospace, aviation, etc.
