SK100 Laser Distance Measurement
Negotiable
Single-point | Pulsed laser dista
Negotiable
25° Angle, 4-meter Measurement,
Negotiable
14-meter laser distance sensor av
Negotiable
Single Point | Phase | Laser Rang
Negotiable
Single-point | TOF High-frequency
Negotiable
Small size; low cost; high precision; wide range
Detection Distance: 0.03~100m (outdoor: 60m)
Accuracy: ±2mm
Frequency: 3Hz/25Hz

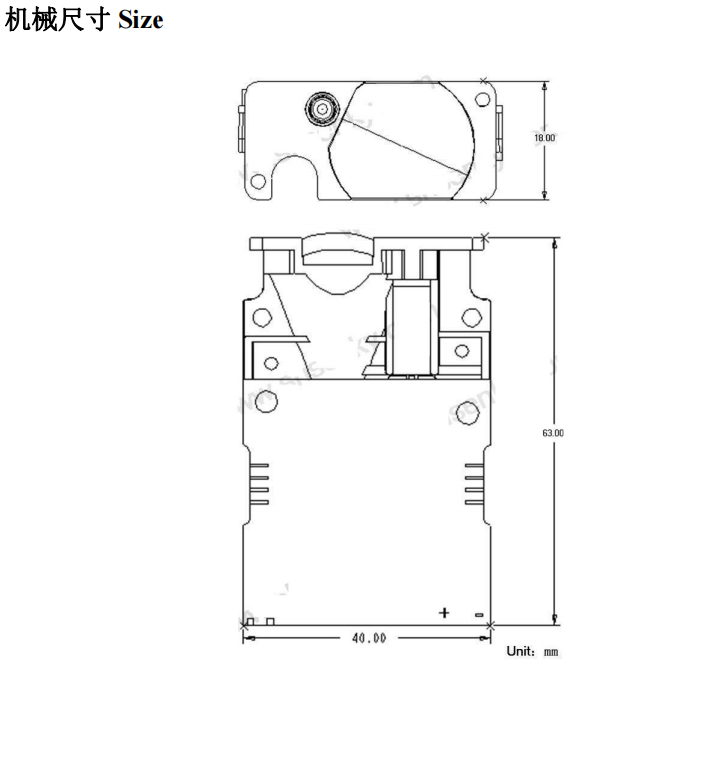

>Dimensions: 63*40*18mm
Data Interface: TTL/RS232/485/4-20mA/0-5V
Technical Specifications

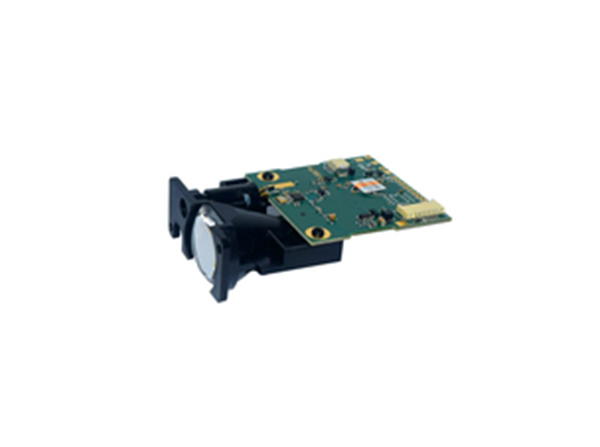

The SK100 single-point laser distance measurement module is a product developed for rapid distance measurement. Utilizing the phase flight time principle, it can measure distances over 100 meters (combined with a target with 90% reflectivity/indoor), achieving accuracy up to the millimeter level. It can accurately measure the distance between targets without contact. The measurement frequency ranges from 0.1 to 4 Hz, with a fast response time, and can be set by the upper computer. The SK100 module uses a 635nm red laser for measurement and can be integrated into high-precision phase measurement applications, including level gauge measurements (with cooperative targets), positioning of large indoor equipment, material level gauges, and more.
