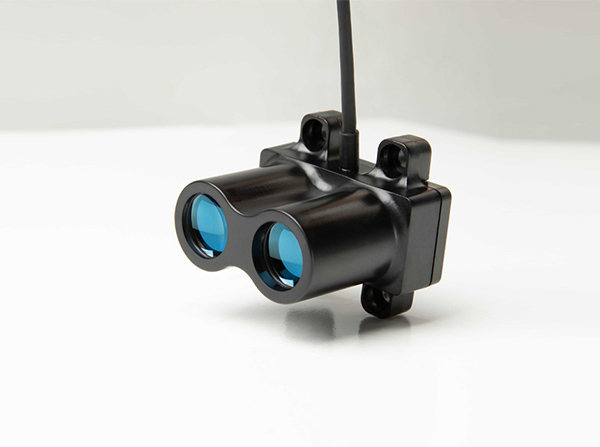

SKP Series Laser Distance Radar

TOF principle; Outdoor type; Suitable for dynamic target positioning

Detection Range: 20/40/70m; Blind Spot: 0.05m

Measurement Rate: 4500Hz adjustable; Response Time <1ms

> Accuracy: 3-5cm; Repeatability: 2cm

Data Interface: UART/RS232/RS485/IO/PWM/4-20mA

Operating Temperature: -40~85℃

Light Source: 905nm Infrared Laser

Technical Specifications

The SKP series single-point distance measurement LiDAR is a device capable of measuring the distance from an object to the LiDAR front end, suitable for industrial measurement, robot obstacle avoidance, and car collision prevention scenarios. The SKP series has a range of 70 meters and maintains centimeter-level accuracy across the entire range. The new DeTOF technology enables stable operation in outdoor bright sunlight. The measurement frequency of the SKP series can reach 4.5kHz, making it applicable for dynamic target detection, such as contour measurement and single-line scanning LiDAR DIY designs.
