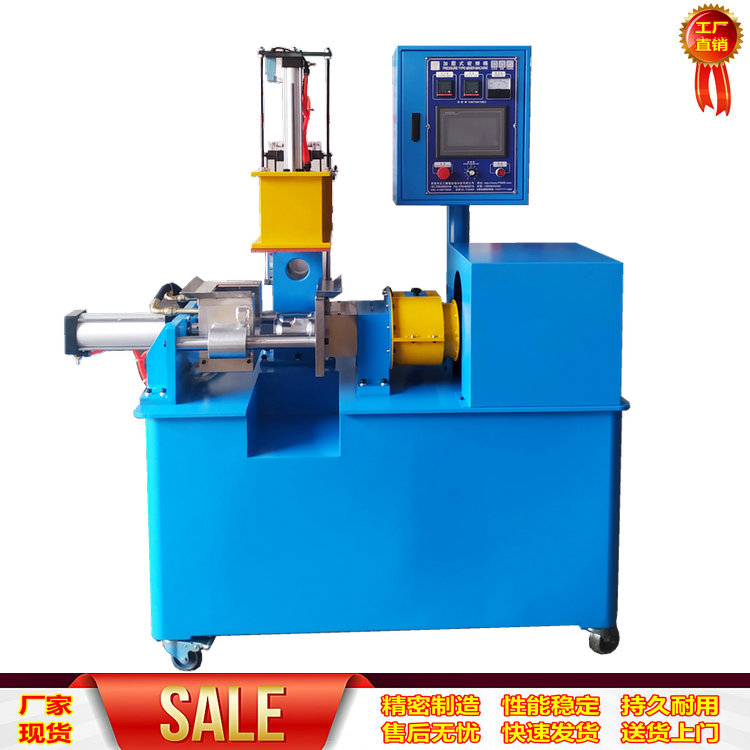

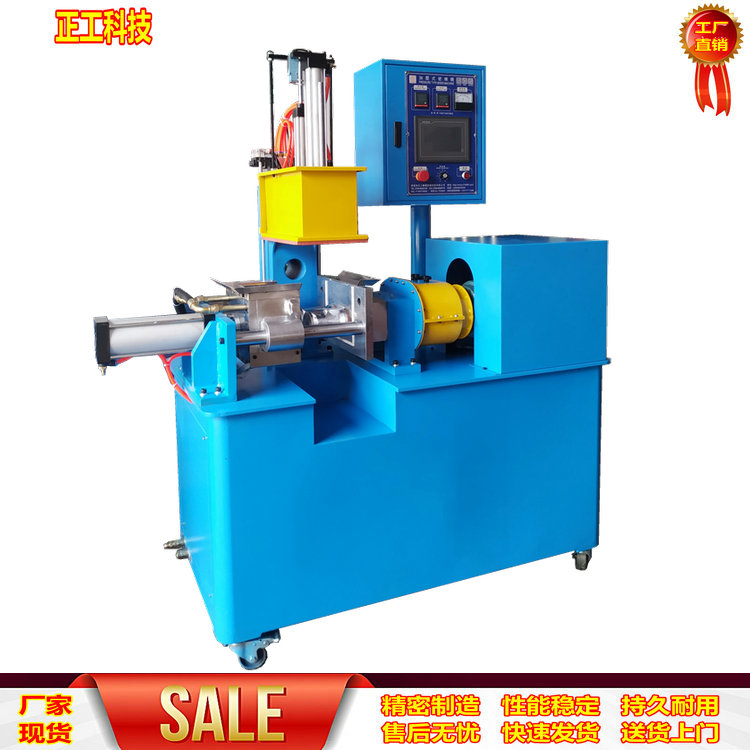

ZG-1LKH Laboratory Small Electric Heating Water-Cooled Open-Closed Mixing Mill
1. Compounding Chamber Volume: 1L
2. Main Motor: AC motor, 3.7 kW power
3. Gearbox: Base and frame made of low-carbon steel structure, equipped with a forced lubrication circulation system.
4. Rotor: Double-edge, synchronous rotor structure (also available for custom design according to customer-provided rotor structure drawings), front-to-back rotor speed ratio of 1:1.20 or ST synchronous rotor; specific parameters can be customized to meet customer requirements. Cast steel quench hardening treatment, surface hard chrome plating; ball roller bearings for bearings; bearing lubrication bath; rotor speed: 1L: 36 rpm; specific speed can be customized according to customer requirements.
5. Wall Treatment: Steel structure, drilling and heat treatment, hard chrome plating on the inner surface; Bracket: Steel structure, hard chrome plating on the inner surface for hardening.
6. Top Bolt: Cylinder-driven, surface hard chrome plated. End face sealing: high-wear-resistant material sealing ring, self-lubricating bearing, hinge spring pressure-sealed
7. Filling hopper: manual operation. Control method: manual or semi-automatic operation; High-temperature compounding machine temperature: normal temperature +10° to high temperature compounding machine with 650° after heat treatment
8. Base: The frame is constructed using steel beams and plates,焊接而成，经过加工制成.
9. The mixing chamber's middle slot is made of wear-resistant alloy steel. The side walls are made by welding medium carbon steel plates and then processed.
10. Mixing shaft - The shaft and blades are made of alloy steel. The bearing housing is made of ZG20 steel, and the bearings are roller bearings.
11. Feed Device - This machine is designed with a front-loading feed device, and the pressure can be arbitrarily adjusted by the user through an air valve.
12. Leak Prevention Device - The side end of the agitator shaft is equipped with a mechanical shaft seal, with the leak-proof structure certified.
13. Pressure Cap Assembly: Made of alloy steel, applies pressure to the raw materials during mixing operations, utilizing a pneumatic cylinder for vertical up and down movement.
14. Discharging Device: Structure - Open and close the mixing chamber for discharging. Discharging Method - Side panels, the W-shaped section of the intensive mixer can be fully and flexibly opened for quick 1-minute disassembly. Discharging Power - Cylinder-driven or manual.
15. Transmission Structure: Main Motor - 3.7KW AC, Voltage 380V. Transmission Method: The main motor and the reducer are connected for integrated transmission.
16. Air Compressor Pipework: Compressed air accessories (3-point assembly, solenoid valve) and mechanical body pipework
17. Main Electrical Control Equipment: Temperature settings: both automatic and manual available. With alarm functions, various time settings, and capability for forward and reverse operation.
Advantages of the machine unit
18. The main electrical components are of imported brands, with the whole machine bearings using Timken TWB brand.
19. The stirrer shaft is made of alloy steel. Wear-prone areas are welded with imported German wear-resistant high-speed steel, providing enhanced strength and durability.
20. "Mountain" type mixing tank, the main body of the mixing tank is made of wear-resistant alloy steel, and the shearing section is surfacing with German high-speed steel.
21. Side wall leak-proof device made with high-tech materials: Leak-proof structure certified
22. The pressure cap features an "M" type structure for more even rubber compound mixing.
23. Volume: (W×D×H) 1450*600*1590MM
24. Weight: 450 kg
