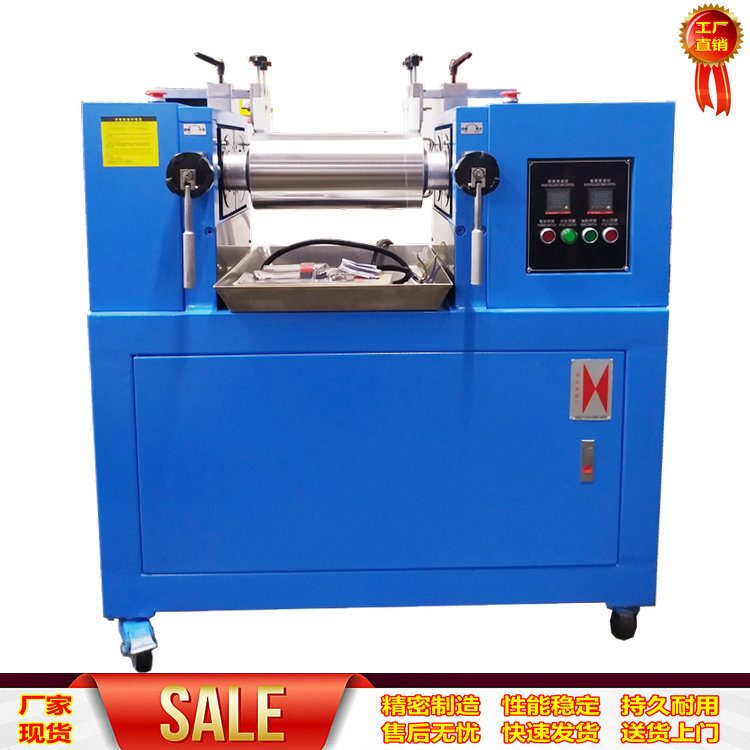

ZG-160D Twin-Roller Open Mill 6" Electrically Heated Open Mill

Mixed Capacity: 0.2—2kg

2. Drum Temperature: Room temperature to 300℃

3. Heating Method: Electric heating (new process design, electrically heated mill rolls, automatic constant temperature control)

4. Temperature Accuracy: ±2℃ (Equipped with a high-precision PID intelligent microcomputer control system for the thermostat, featuring automatic calculation of internal constants, providing higher accuracy than manual settings and saving time. Includes over-temperature protection to safeguard machinery and production materials.)

5. Roller Speed: Standard speed at approximately 19 RPM, variable speed available; other speeds can be customized.

6. Roller Speed Ratio: 1:1.35 ratio available for customization according to customer requirements.

7. Roller Dimensions: φ160mm x L 350mm (high hardness surface hard chrome plating, non-stick, non-peeling)

8. Roller spacing: adjustable from 0.1 to 6mm

9. Protection Device: Multiple push-button emergency stop switches (with reverse function, ergonomic design, ensuring no worker injuries)

10. Motor: 2.2KW, 1 unit

11. Power: 5KW

12. Volume: (W×D×H) 1100×550×1380mm - Smaller than traditional technology with the same function 13. Roller Lubrication: The superior wear-resistant bearing has a contact area that extends the lifespan of the traditional copper sleeve by 2/3.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume than cast iron using traditional methods, with higher mechanical strength and better toughness)

15. Power: 5 poles, AC 380V

16. Weight: Approximately 400 kg
