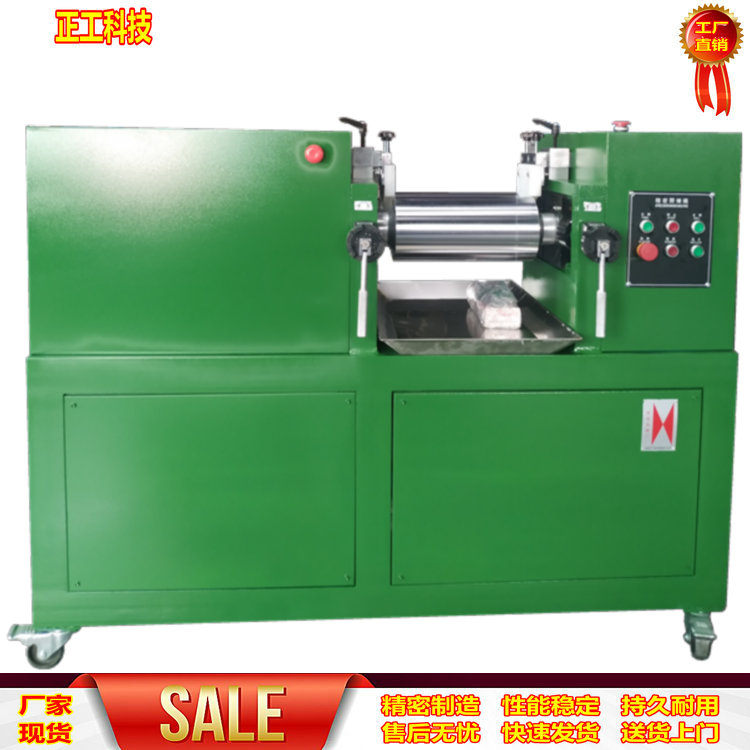

ZG-160 Rubber Mixing Machine 6" Small Water-Cooled Open Mill

Features and Uses: Its primary function is to ensure the product meets the customer's required quality and color. To achieve this, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly mix the test raw materials and additives.

Technical Specifications:

Mixed Capacity: 0.5—3 kgs

2. Roller Temperature: Room Temperature ~ Tap Water °C

3. Heating Method: Friction Heating

4. Temperature Accuracy: No Requirement

5. Drum Speed: Fixed speed (approx. 19 RPM, variable speed available; other speeds can be customized)

6. Roller speed ratio: 1:1.35 (other ratios available upon customization)

7. Roller Size: φ160mm x L 350mm (High hardness surface chrome plating treatment, non-stick, non-delamination)

8. Roller Spacing: adjustable from 0.1 to 6mm; roller material is tool steel (with hard chrome plating on the surface)

9. Protection Device: Multiple touch-type emergency stop buttons (with reverse function, ergonomic design, no worker injuries)

10. Motor: 5.5KW, 1 unit (New process design, mechanical structure adjustment, provides the same output torque as the traditional process machinery with 7.5KW, achieving energy-saving goals)

11. Power: 5.5 kW

12. Volume: (W×D×H) 1600×580×1380mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearing with a larger contact area, offering a lifespan 2/3 longer than traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, and higher in mechanical strength than cast iron used in traditional processes, with better toughness)

15. Power: 5 poles, AC 380V

16. Weight: 740 kg
