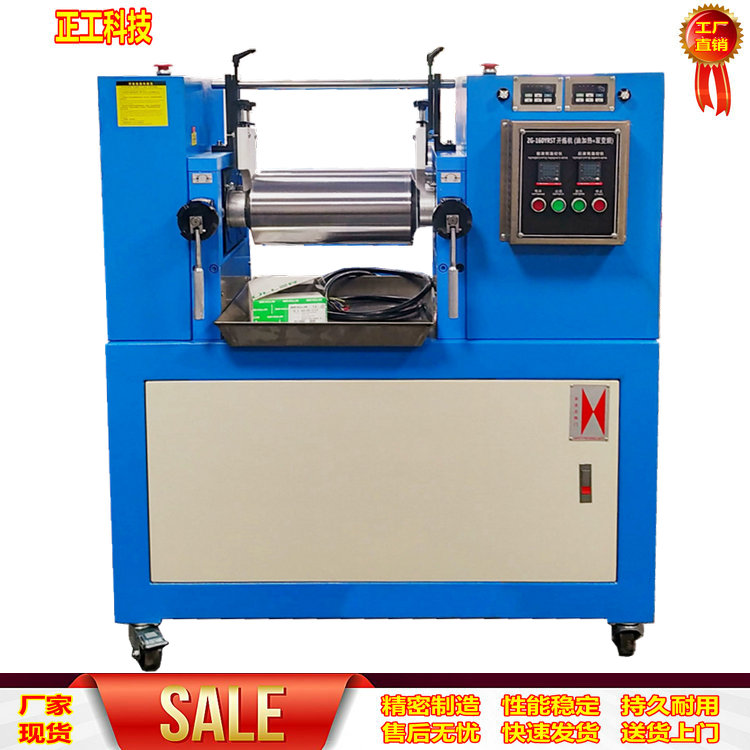

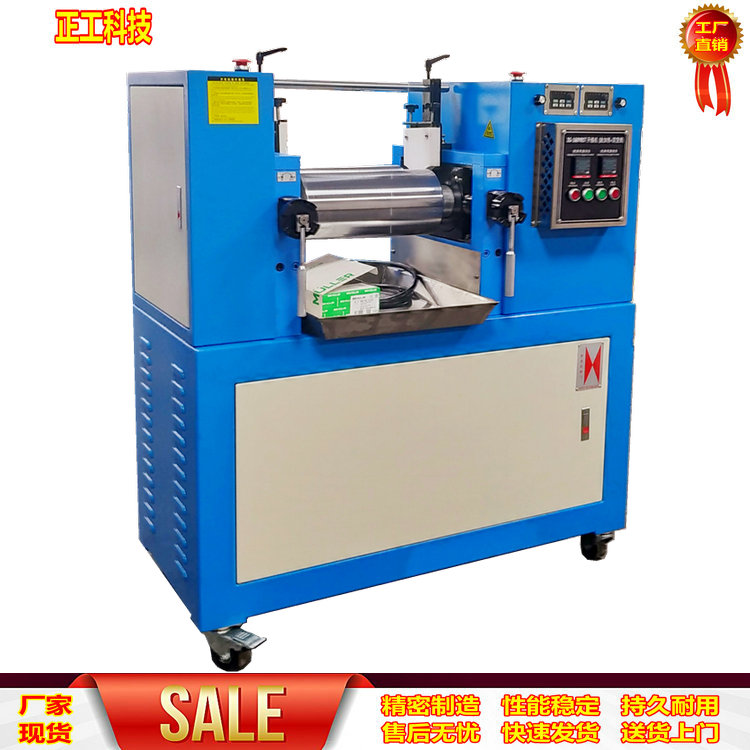

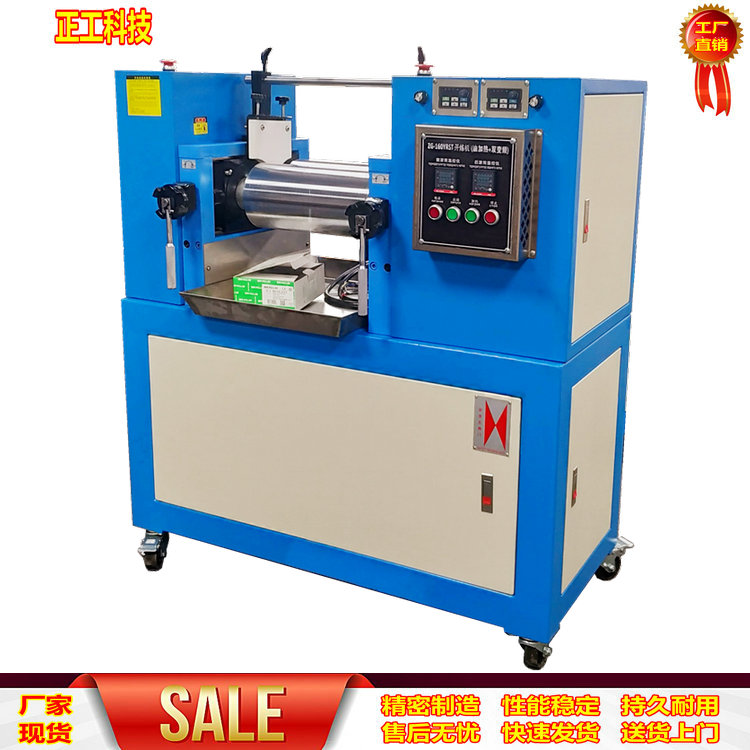

ZG-160 Twin-Spindle Open Mill, 6-inch Small Oil-Heated Open Mill

Mixed Capacity: 0.2—2.8 kgs

2. Roller Temperature: Room temperature to 300℃

3. Heating Method: Oil Heating (New process design, oil heated mill product, automatic constant temperature control)

4. Temperature Accuracy: ±2℃ (High-precision PID intelligent microcomputer control system with automatic calculation of internal constants, offering higher accuracy than manual settings and saving time. Includes over-temperature protection function to safeguard machinery and production materials.)

5. Roller Speed: Dual Frequency, Dual Speed Control

6. Roller Speed Ratio: 1:1.35 ratio available for customization according to customer requirements.

7. Drum Size: φ160mm × L 350mm (High hardness surface treated with hard chrome plating, non-stick, non-peeling)

8. Roller spacing: adjustable from 0.1 to 6mm

9. Safety Device: Multiple touch-sensitive emergency stop buttons (with reverse function, ergonomic design, no worker injuries)

10. Motor: 2.2KW, 1 unit (New process design, mechanical structure adjustment, with the same output torque as the traditional process machinery at 5.5KW, achieving energy-saving goals)

11. Power: 15KW

12. Volume: (W×D×H) 1100×550×1380mm - Smaller in volume compared to traditional processes, while maintaining the same functionality.

13. Roller Lubrication: Excellent wear-resistant bearing with a large contact area. Offers a lifespan extended by two-thirds compared to traditional copper bushes.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron used in traditional processes)

Power supply: 5φ, AC380V

16. Weight: Approximately 460 kg
