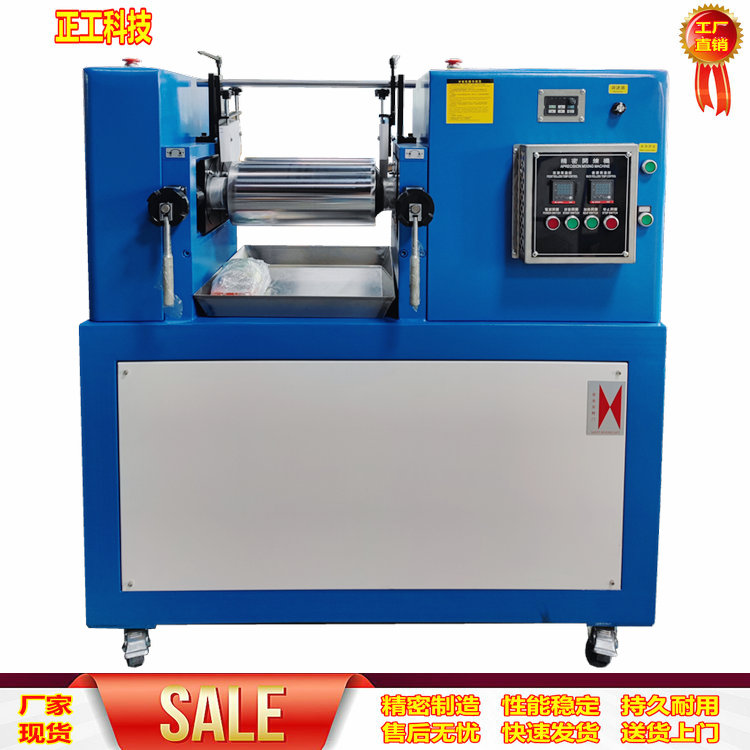

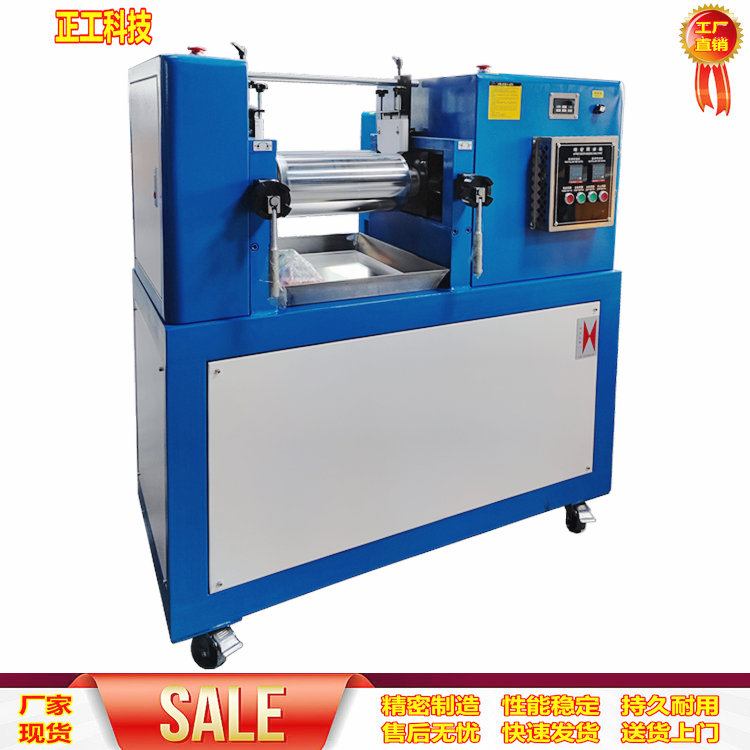

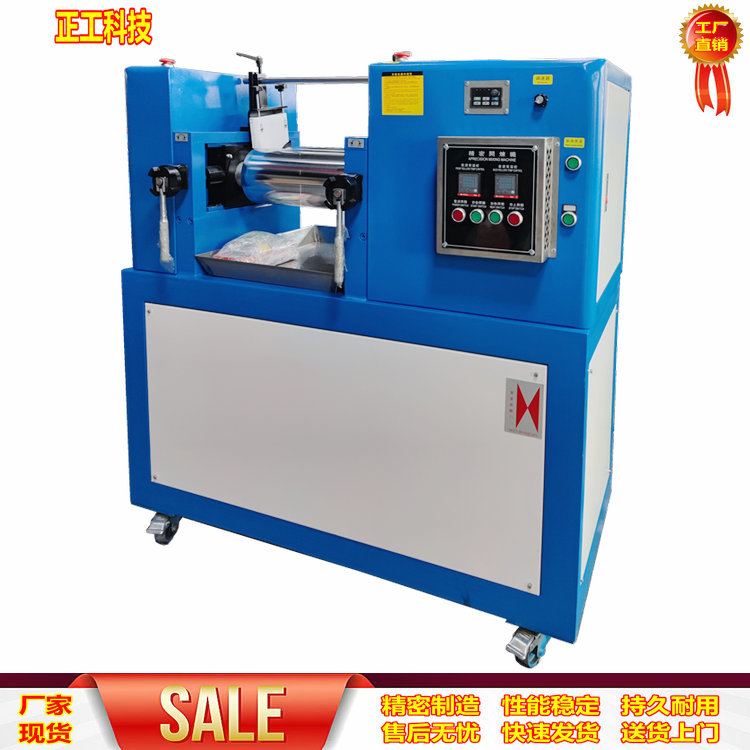

ZG-160YRL Double-Spindle Open Mill, 6-Inch Small Oil-Heated Open Mill (Condenser)

Mixed Capacity: 0.2—2.8 kgs

2. Roller Temperature: Room temperature to 300℃

3. Heating Method: The new design of the oil pump incorporates a heat-conductive oil circulation heating system with a condenser for cooling (new process design, oil hot-rolling machine product, automatic temperature control)

4. Temperature Accuracy: ±2℃ (Equipped with a high-precision PID intelligent microcomputer control system, automatic calculation of internal constants, higher accuracy than manual settings, time-saving. Features over-temperature protection to safeguard machinery and production materials)

5. Roller Speed: Single-speed with variable speed (1x 2.2KW variable frequency inverter)

6. Roller Speed Ratio: 1:1.35 ratio available for customization according to customer requirements.

7. Roller Size: φ160mm x L 350mm (high hardness surface hard chrome plated treatment, non-stick, non-peel)

8. Roller Spacing: adjustable from 0.1 to 6mm

9. Protection Device: Multiple touch-type emergency stop buttons (with reverse function, user-friendly design, no workplace injuries for operators)

10. Motor: 2.2KW, 1 unit

11. Power: 10KW

12. Volume: (W×D×H) 1100×550×1380mm; smaller in volume compared to traditional technology for the same functionality. 13. Roller Lubrication: Exceptionally wear-resistant bearings with a large contact area, extending the service life by two-thirds compared to traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron used in traditional processes)

15. Power: 5 poles, AC380V

16. Weight: Approximately 660 kg
