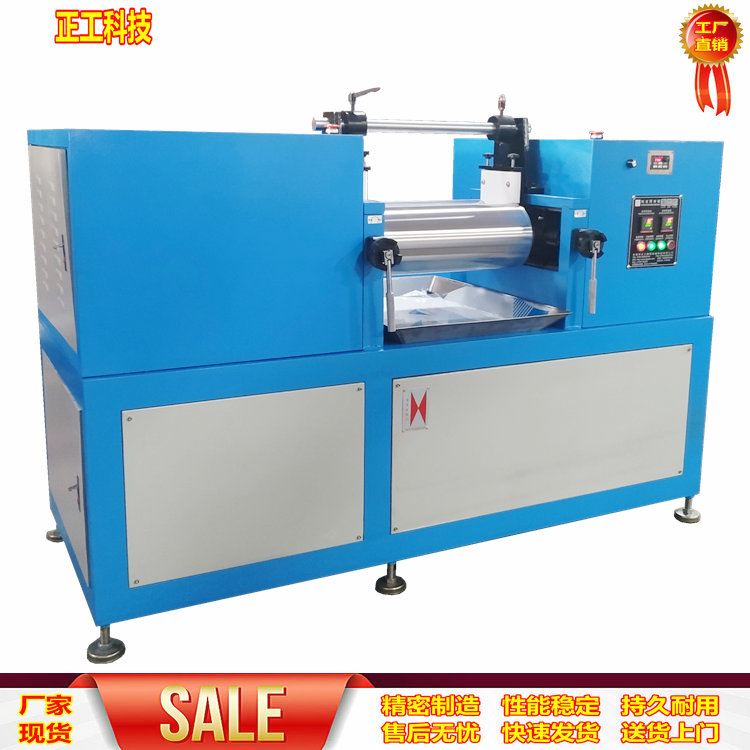

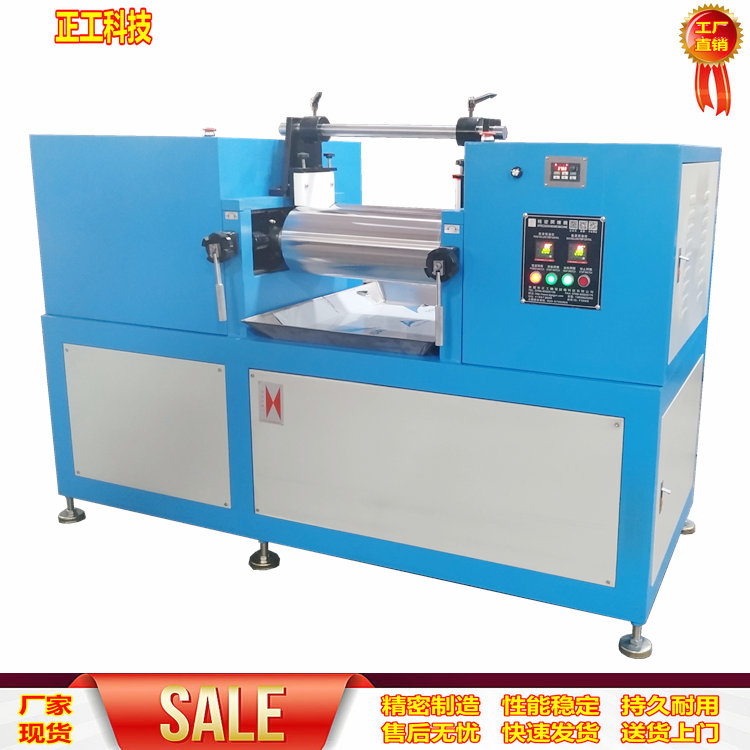

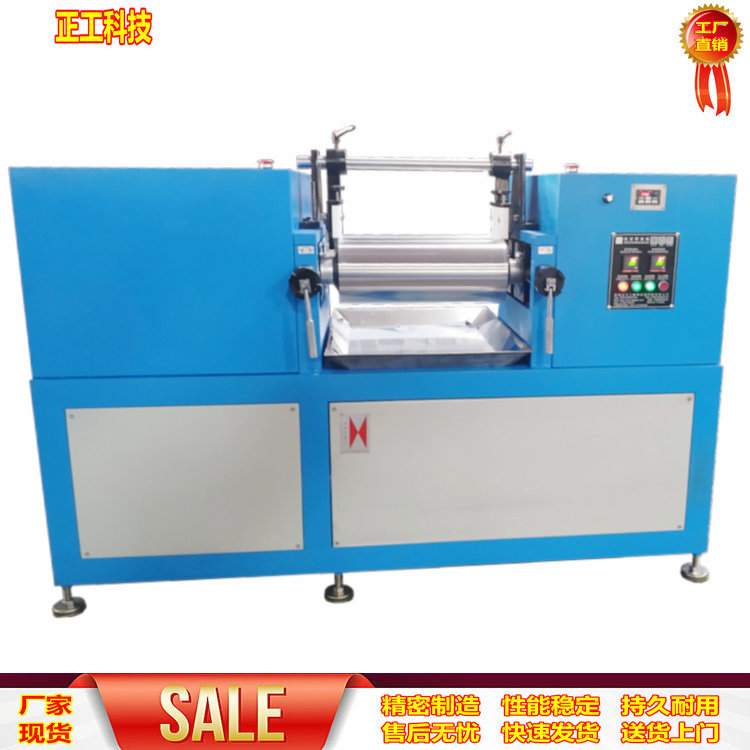

ZG-200D Double-Spindle Open Mill, 8-Inch Electrically Heated Open Mill

Mixed Capacity: 0.2—5 kgs

2. Drum Temperature: Room Temperature ~ 300℃

3. Heating Method: Electric Heating (New process design, electrically heated drum of the open mill, automatic temperature control)

4. Temperature Accuracy: ±2℃ (Equipped with a high-precision PID intelligent microcomputer control system, featuring automatic calculation of internal constants, offering higher accuracy than manual settings and saving time. Includes over-temperature protection function to safeguard machinery and production materials.)

5. Roller Speed: Single frequency variable speed around 19 RPM

6. Roller Speed Ratio: 1:1.27 ratio available for customization according to customer requirements

7. Roller Dimensions: φ200mm x L 500mm (high hardness surface coated with hard chrome, non-stick, non-peel)

8. Roller Spacing: adjustable from 0.1 to 8mm

9. Protection Device: Multiple touch-sensitive emergency stop buttons (with reverse function, user-friendly design, no worker injuries)

10. Motor: 7.5KW unit (New process design, mechanical structure adjustment, delivering 11KW output torque equivalent to traditional process machinery, achieving energy-saving goals)

11. Power: 22 kW

12. Volume: (W×D×H) 1900×850×1380mm; smaller than the traditional process, while maintaining the same functionality.

13. Roller Lubrication: Exceptional wear-resistant bearing with a contact area 2/3 longer than traditional copper sleeve, extending service life.

14. Mechanical Structure: Steel plate (lighter, smaller in volume than cast iron used in traditional processes, with higher mechanical strength and better toughness)

15. Power: 5∮, AC380V, 10A

16. Weight: Approximately 1190 kg
