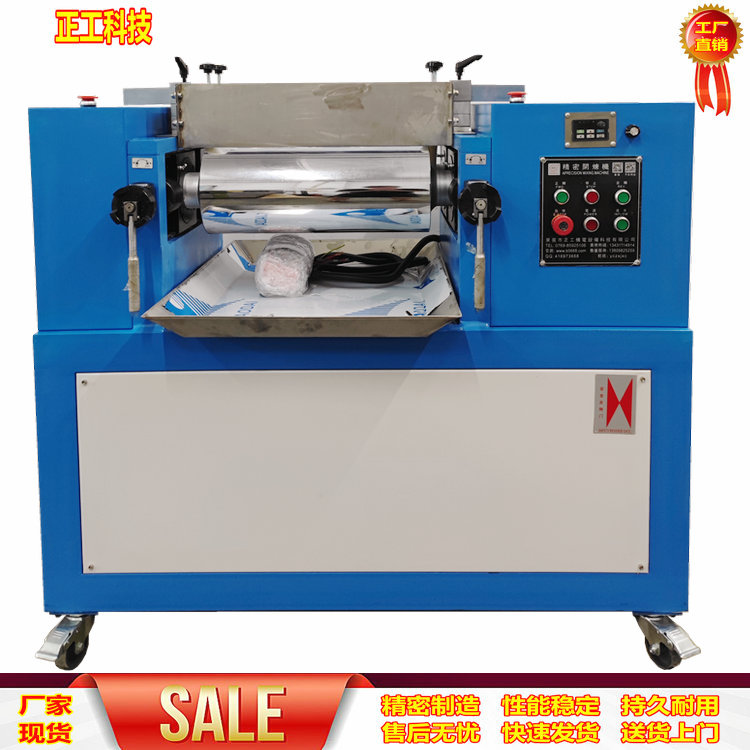

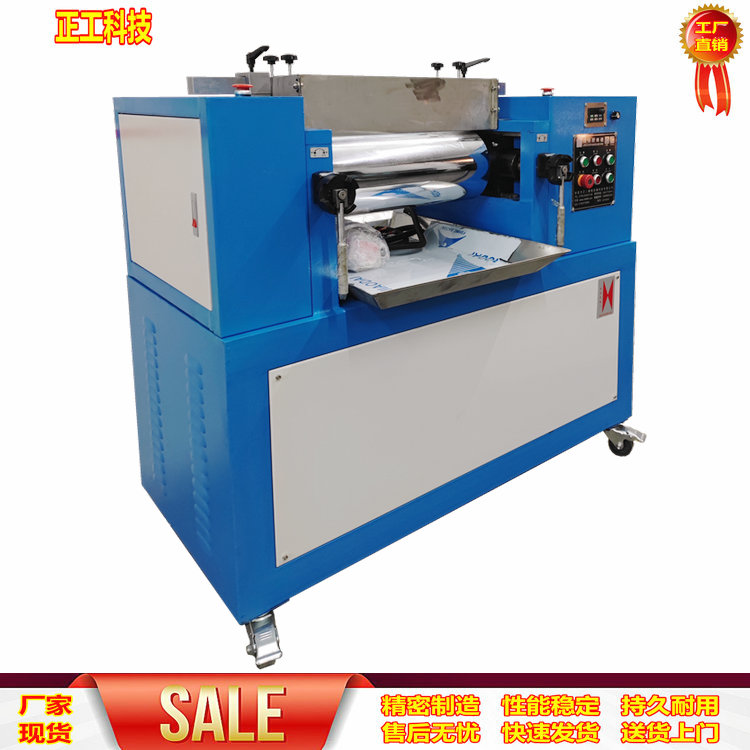

ZG-200 Double Roll Open Mill, 8-inch Small Water-Cooled Open Mill

Features and Uses: Its primary function is to ensure the product meets the quality and color requirements of the customer. To achieve this, the results of experiments and their ratios are applied to the production line. This machine, specifically, is an equipment that uniformly blends the test raw materials and additives.

Technical Specifications:

Mixed Capacity: 1-5 kgs

2. Drum Temperature: Ambient ~ Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No specification required

5. Roller Speed: Single variable speed around 19 RPM

6. Roller Speed Ratio: 1:1.35

7. Roller Size: φ200mm x L 500mm (High-hardness surface coated with hard chrome, non-stick, non-peeling)

8. Roller Spacing: adjustable from 0.1 to 10mm; roller material is tool steel (with surface hard chrome plating)

9. Protection Device: Multiple touch-sensitive emergency stop buttons (with reverse function, user-friendly design, no worker injuries during operation)

10. Motor: 1 unit, 11KW (New process design, mechanical structure adjustment, with the same output torque as traditional process machinery at 15KW, achieving energy-saving goals)

11. Power: 11KW

12. Volume: (W×D×H) 2000×780×1480mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Excellent wear-resistant bearing with a large contact area; extends the service life by two-thirds compared to traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, and higher in mechanical strength than cast iron in traditional processes, with better toughness)

15. Power supply: 5φ, AC 380V

16. Weight: 1800 kg
