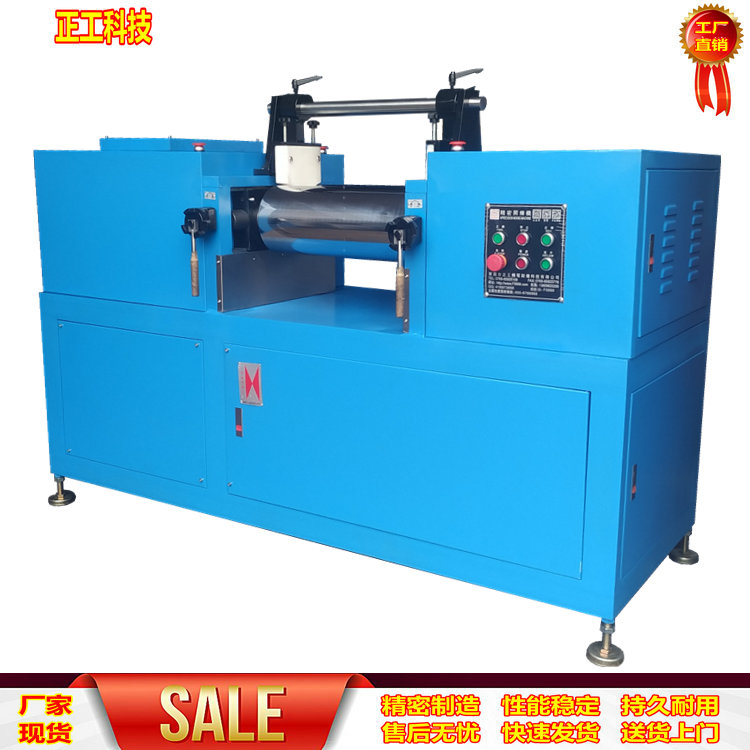

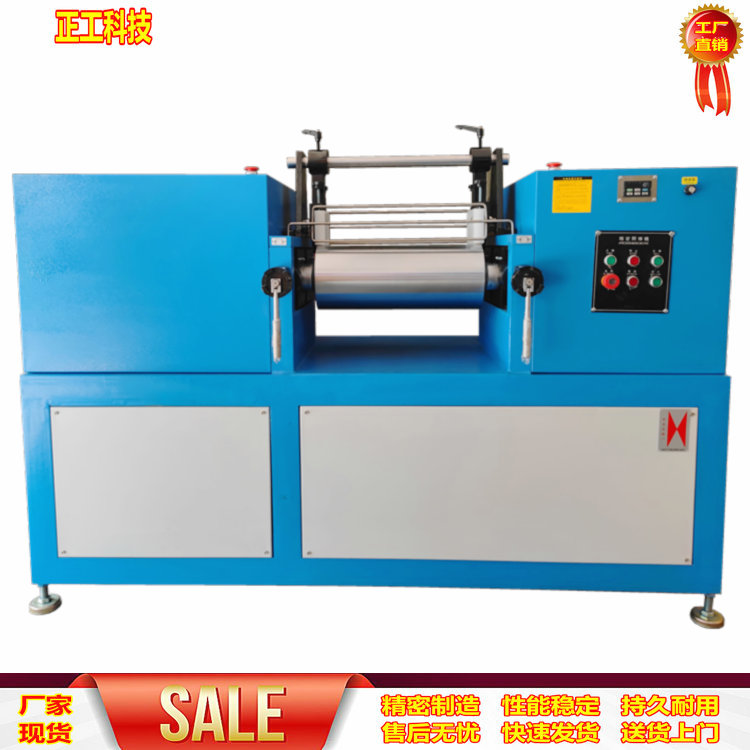

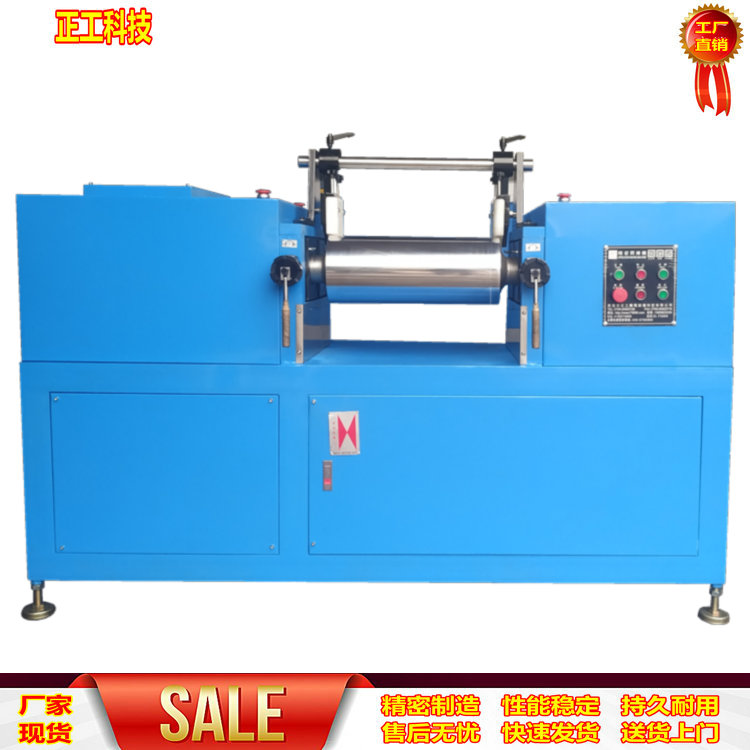

ZG-200 Double Roller Open Mill, 8-inch Small Water-Cooled Open Mill

Features and Uses: Its primary function is to ensure the product meets the quality and color requirements of the customer. To achieve this, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed for mixing the test materials and additives uniformly.

Technical Specifications:

Mixed Capacity: 1-5 kgs

2. Roller Temperature: Room Temperature to Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No Specific Requirement

5. Roller Speed: Approximately 19 RPM

6. Roller Speed Ratio: 1:1.35

7. Roller Size: φ200mm x L 500mm (high-hardness surface hard chrome plating treatment, non-stick, non-peeling)

8. Roller spacing: adjustable from 0.1 to 10mm; roller material is tool steel (with surface electroplated hard chrome)

9. Safety Device: Multiple touch-type emergency stop buttons (with reverse function, user-friendly design, no worker injuries)

10. Motor: 1 unit, 11KW (New process design, mechanical structure adjustment, providing the same output torque as the traditional process machinery with 15KW, achieving energy-saving goals)

11. Power: 11KW

12. Volume: (W×D×H) 2000×780×1480mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptionally wear-resistant bearings with a larger contact area, offering a 2/3 increase in lifespan compared to traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter, smaller in volume than cast iron used in traditional processes, with higher mechanical strength and better toughness)

Power: 5 poles, AC380V

16. Weight: 1000 kg
