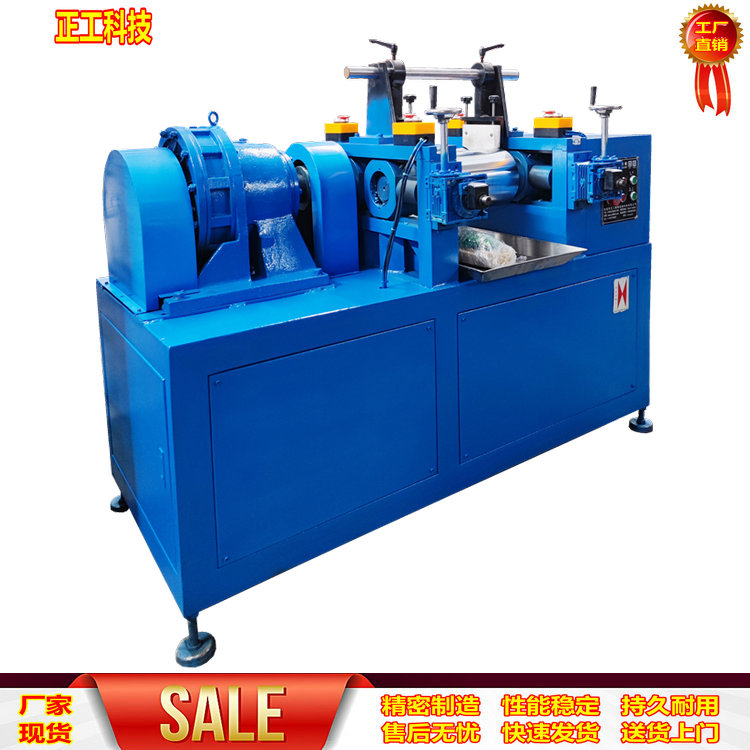

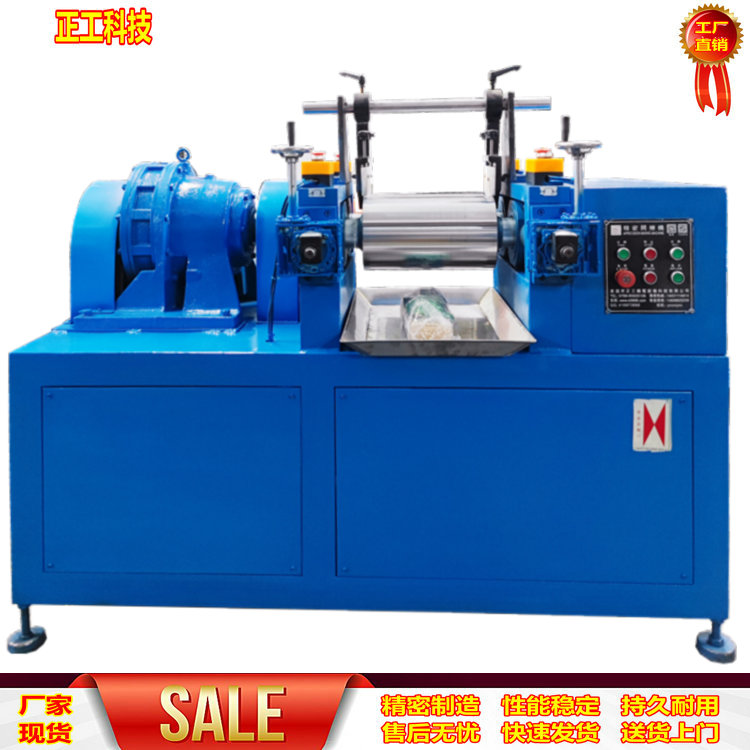

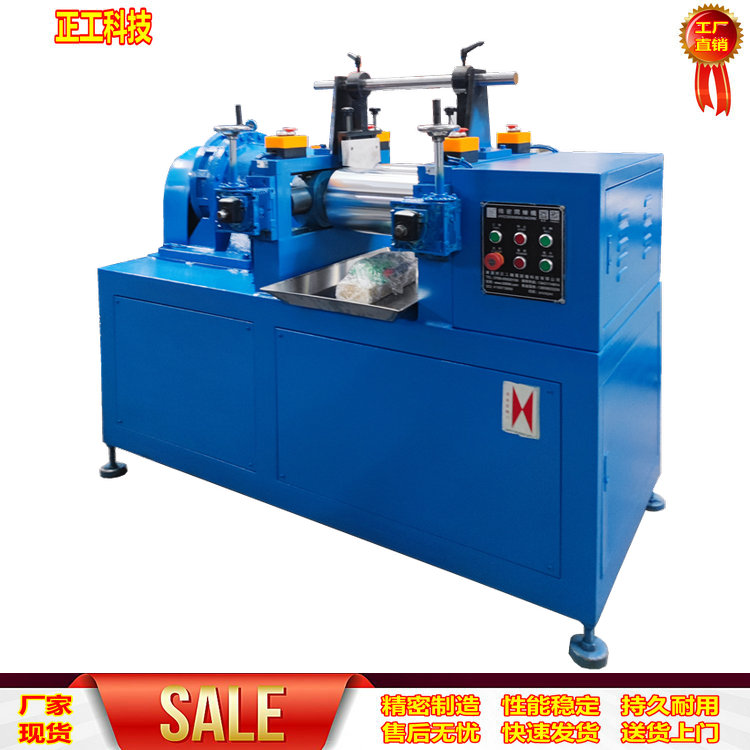

ZG-200L Rubber Mixing Machine 8-inch Small Water-Cooled Open Mill

Features and Uses: Its primary function is to ensure the product meets the client's required quality and color standards. To achieve this, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly mix the test raw materials and additives.

Technical Specifications:

Mixed Capacity: 1-5 kgs

2. Roller Temperature: Room Temperature ~ Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No specification required

5. Roller Speed: Approximately 19 RPM

6. Roller Speed Ratio: 1:1.35

7. Roller Size: φ200mm x L 500mm (High hardness surface hard chrome plating, non-stick, non-peel)

8. Roller spacing: adjustable from 0.1 to 10mm

9. Protection Device: Multiple push-button emergency stop buttons (with reverse function, ergonomic design, ensuring no worker injury)

Motor: 7.5KW, 1 unit

11. Power: 7.5 kW

12. Volume: (W×D×H) 1580×780×1380mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: The highly wear-resistant bearings have a larger contact area, extending the service life by 2/3 compared to traditional copper bushes.

14. Mechanical Structure: Steel plate (lighter, smaller in volume, and higher mechanical strength than cast iron in traditional processes, with better toughness)

15. Power: 5 poles, AC 380V

16. Weight: 800 kg
