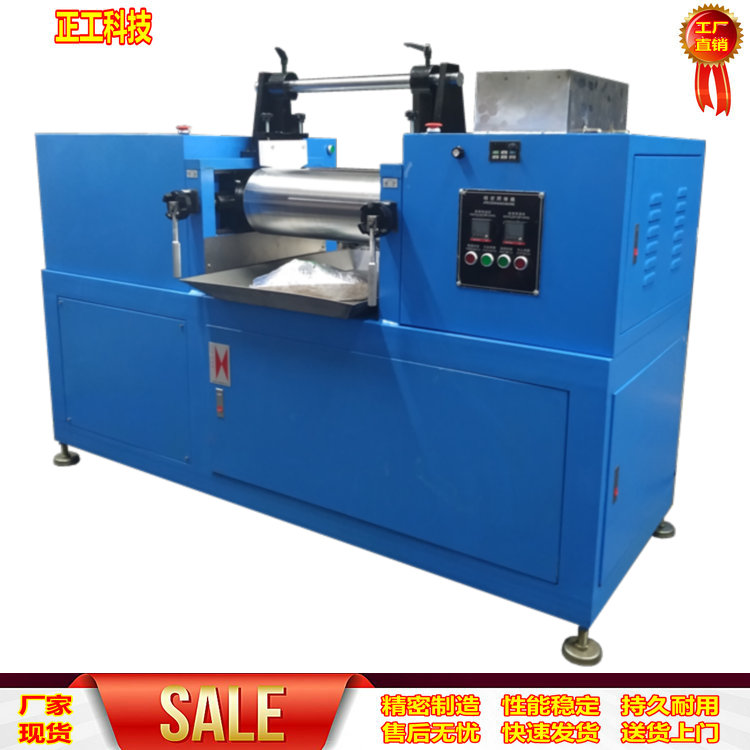

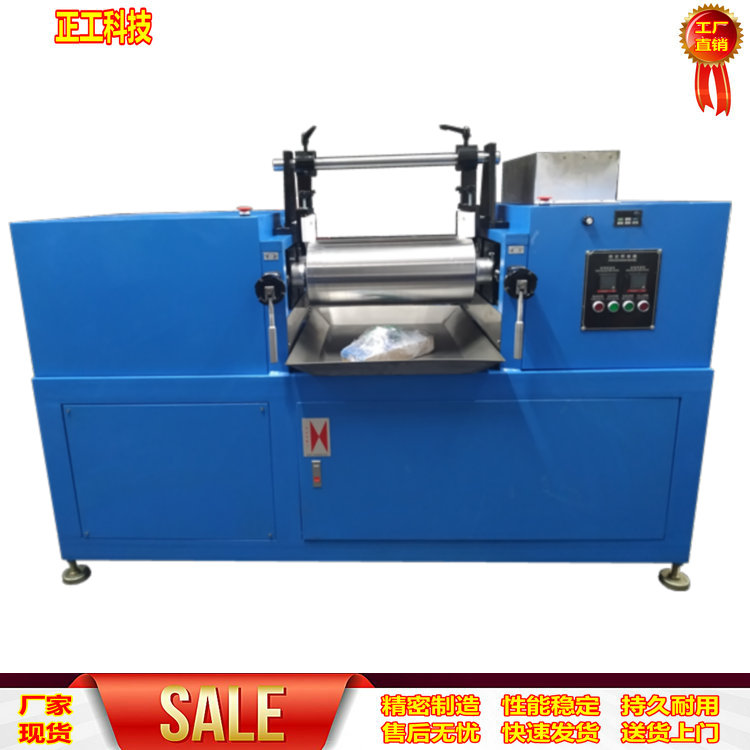

ZG-200 Two-Roller Open Mill, 8-inch Small Oil-Heated Open Mill

Mixed Capacity: 0.2—5 kgs

2. Roller Temperature: Room temperature to 300℃

3. Heating Method: Oil Heating (Process Design, New Oil Heating Products, Automatic Constant Temperature Control)

4. Temperature Accuracy: ±2℃ (Equipped with a high-precision PID intelligent microcomputer control system, featuring automatic calculation of internal constants, offering higher accuracy than manual settings and saving time. Includes over-temperature protection to safeguard machinery and production materials.)

5. Roller Speed: Single-frequency variable speed around 19 RPM

6. Roller Speed Ratio: 1:1.27 ratio available for customization according to customer requirements.

7. Roller Size: φ200mm x L 500mm (high-hardness surface coated with hard chrome, non-stick, non-peel)

8. Roller Spacing: adjustable from 0.1 to 8mm

9. Safety Device: Multiple push-button emergency stop switches (with reverse function, ergonomic design, ensuring no worker injuries)

10. Motor: 7.5KW unit (New process design, mechanical structure adjustment, provides the same torque output as traditional process machinery at 11KW, achieving energy-saving goals)

11. Power: 22 kW

12. Volume: (W×D×H) 1900×850×1380mm - Smaller than traditional technology for the same function

13. Roller Lubrication: Exceptional wear-resistant bearings with a large contact area. Increases service life by 2/3 compared to traditional copper bushes.

14. Mechanical Structure: Steel plate (lighter, smaller in volume, higher mechanical strength, and better toughness than cast iron in traditional processes)

15. Power: 5 poles, AC 380V

16. Weight: Approximately 1190 kg
