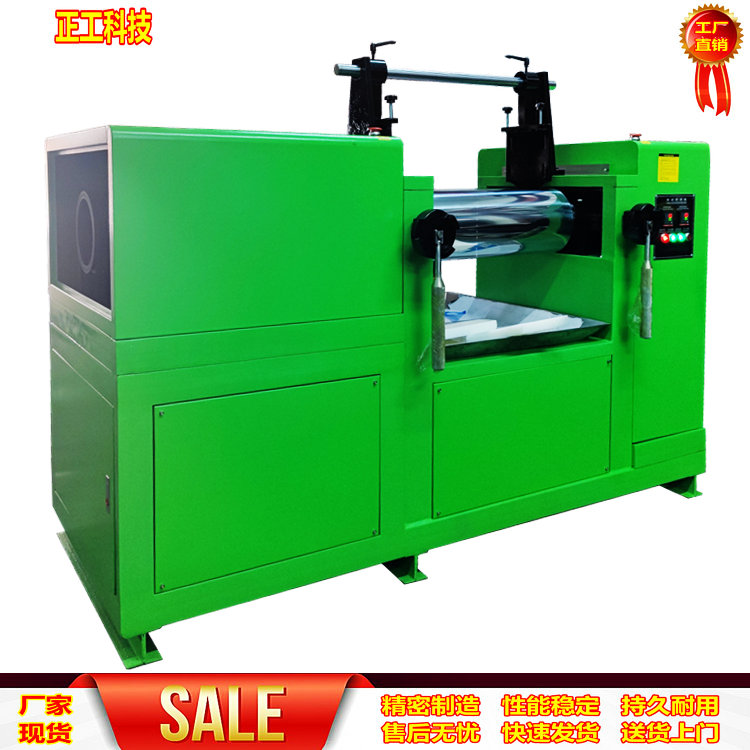

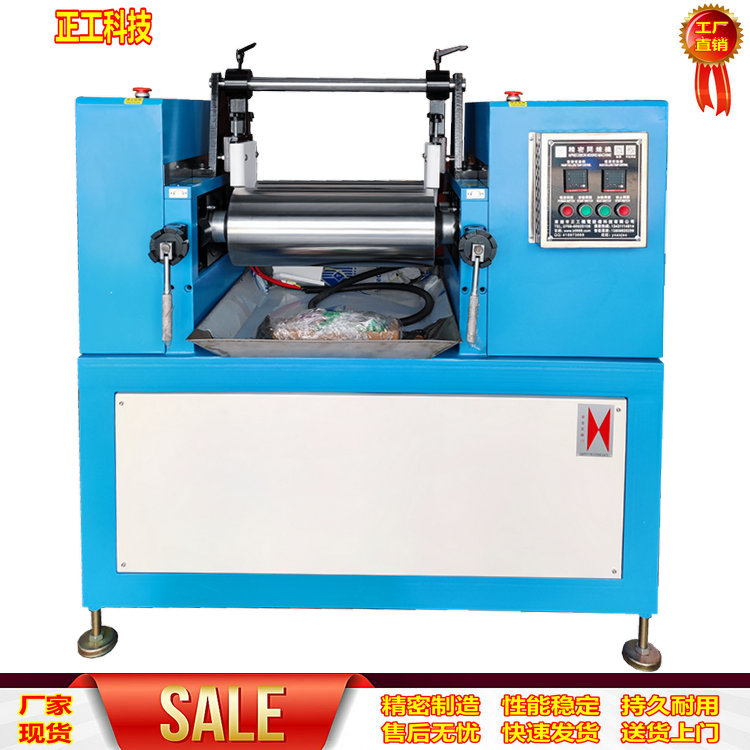

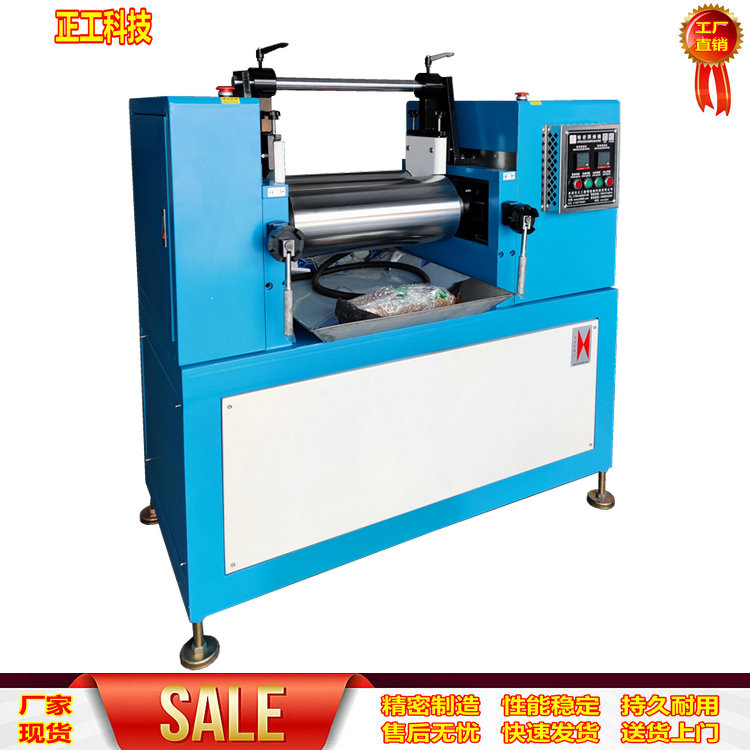

ZG-200YR Twin-Roller Open Mill, 8" Mini Oil-Heated Open Mill

Mixed Capacity: 0.2—5 kgs

2. Roller Temperature: Room temperature ~ 300℃

3. Heating Method: Oil Heating (Process Design, New Oil Heating Products, Automatic Temperature Control)

4. Temperature Accuracy: ±2℃ (Utilizes a high-precision PID intelligent microcomputer control system with automatic calculation of internal constants, offering higher accuracy than manual settings and saving time. Includes over-temperature protection to safeguard machinery and production materials.)

5. Drum Speed: Fixed speed at approximately 19 RPM, variable speed available; other speeds can be customized.

6. Roller Speed Ratio: 1:1.27 ratio available for customization according to customer requirements.

7. Roller Size: φ200mm x L 500mm (high-hardness surface chrome plating treatment, non-stick, non-peel)

8. Roller spacing: adjustable from 0.1 to 8mm

9. Safety Device: Multiple touch-type emergency stop buttons (with reverse function, ergonomic design, no worker injuries)

Motor: 5.5KW, 1 unit

11. Power: 15 kW

12. Volume: (W×D×H) 1580×850×1380mm; smaller in volume compared to traditional processes for the same functionality.  13. Roller Lubrication: The superior wear-resistant bearing has a large contact area, extending the service life by 2/3 compared to traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron used in traditional processes)

15. Power Supply: 5φ, AC380V

16. Weight: Approximately 590 kg
