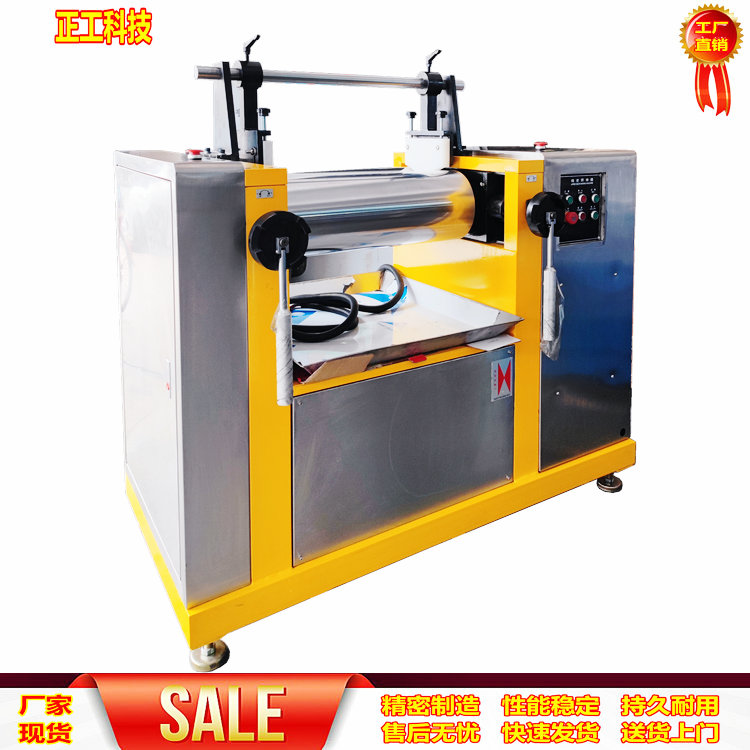

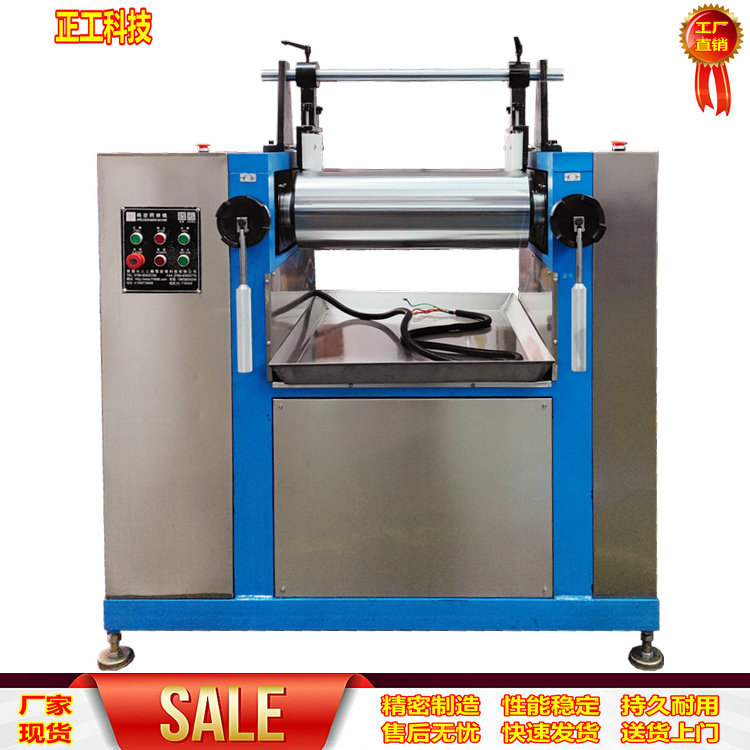

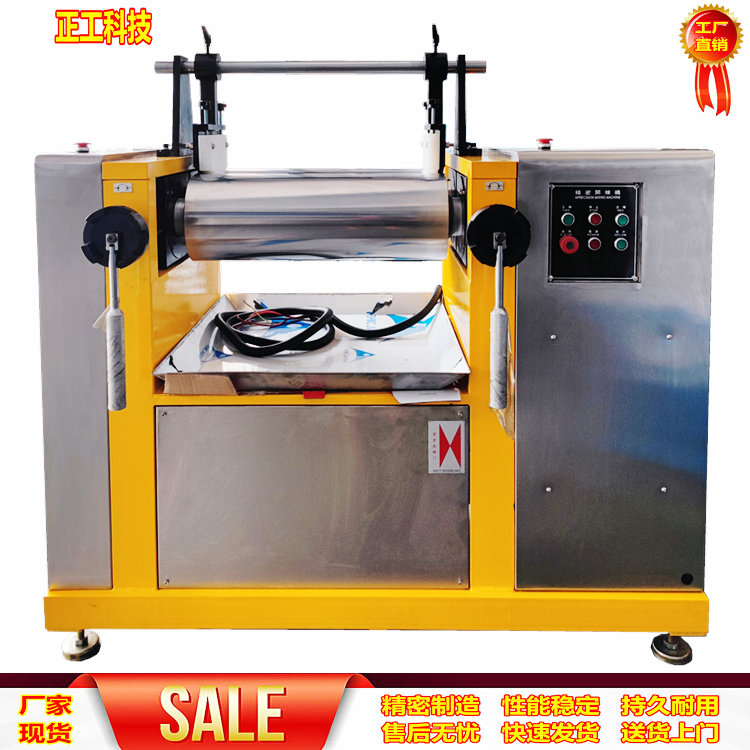

ZG-230L Rubber Mixing Machine, 9-inch Water-Cooled Open Mill (Stainless Steel Shell)

Features and Applications: The primary function is to ensure the product meets the required quality and color specifications. To achieve these standards, the results of the experiments and their ratios are applied to the production line. This machine specifically blends the raw materials and additives uniformly.

Technical Specifications:

Mixed Capacity: 2-10 kgs

2. Roller Temperature: Ambient to tap water ℃

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No requirement

5. Drum Speed: Fixed speed (approx. 19 RPM, variable speed available; other speeds can be customized)

6. Roller speed ratio: 1:1.35 (other ratios available upon customization)

7. Roller Dimensions: φ230mm × L 650mm (High-hardness surface chrome plated treatment, non-stick, non-peeling)

8. Roller Spacing: adjustable from 0.1 to 10mm

9. Safety Device: Multiple touch-type emergency stop buttons (with reverse function, ergonomic design, no worker injuries)

10. Motor: 11KW, 1 unit

11. Power: 11KW

12. Volume: (W×D×H) 1520×960×1580mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearing with a large contact area... Offers a 2/3 longer service life than traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter, smaller in volume, higher mechanical strength, and better toughness than cast iron in traditional processes) stainless steel housing, door panels

15. Power: 5∮, AC380V, 20A

16. Weight: 800 kg
