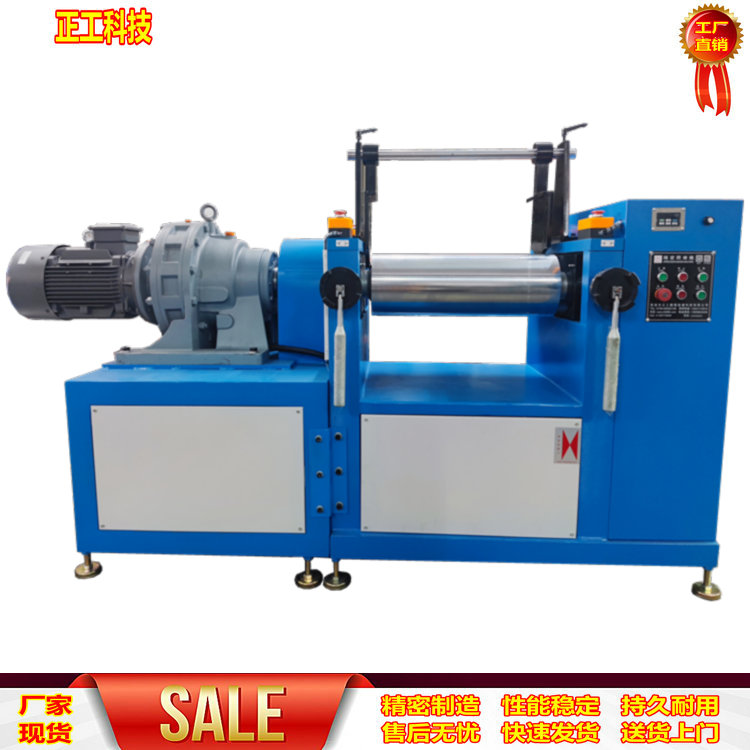

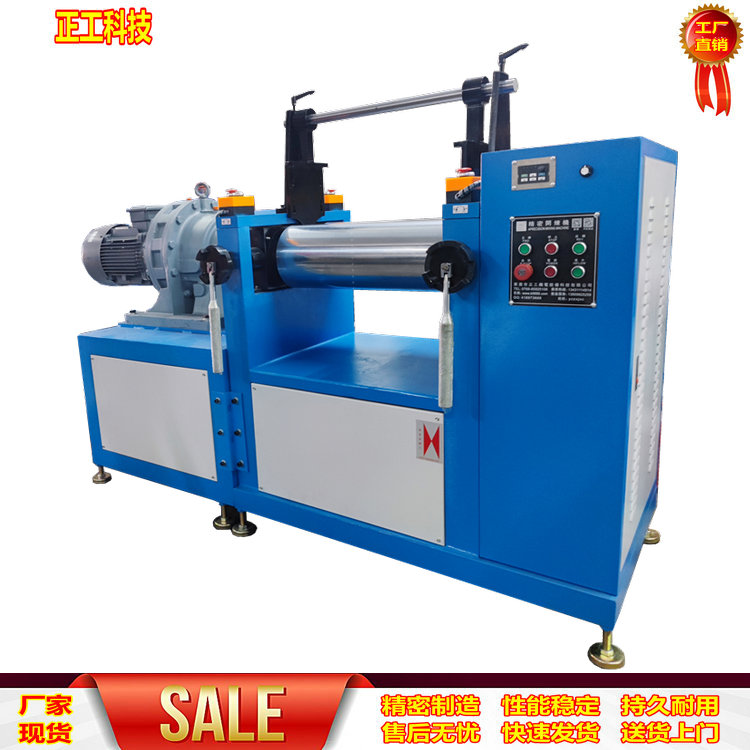

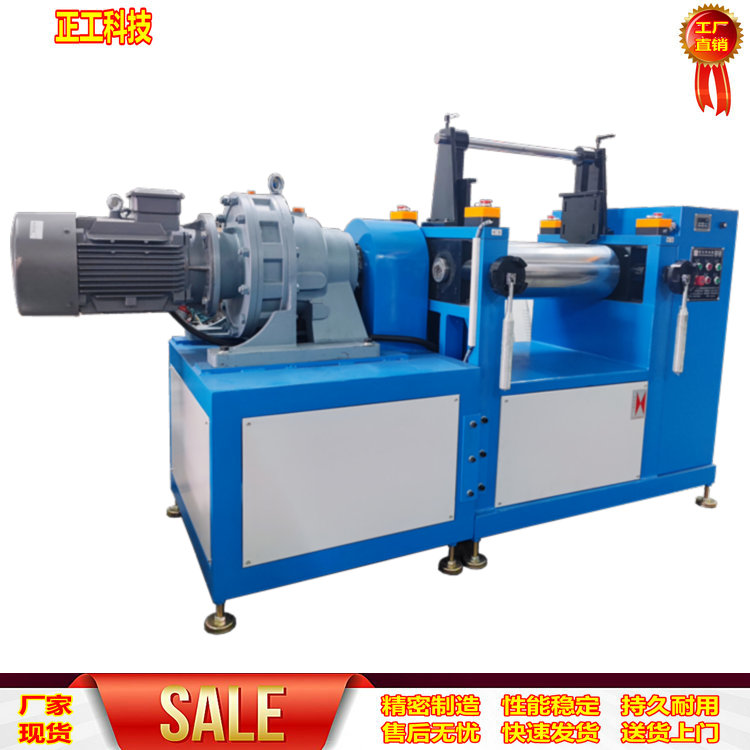

ZG-230 9-inch Small Water-Cooled Open Mill

Features and Uses: Its primary function is to ensure the products meet the quality and color requirements of the customers. To achieve this, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly mix the test raw materials and additives.

Technical Specifications:

Mixed Capacity: 2—10 kgs

2. Roller Temperature: Room Temperature to Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No specification required

5. Roller Speed: Single variable speed around 19 RPM

6. Roller speed ratio: 1:1.35 (other ratios available upon customization)

7. Roller Size: φ230mm x L 650mm (high hardness surface hard chrome plated treatment, non-stick, non-peel)

8. Roller spacing: adjustable from 0.1 to 10mm; roller material: tool steel (with hard chrome plating on the surface)

9. Protection Device: Multiple push-button emergency stop switches (with reverse function, user-friendly design, no worker injuries during operation)

10. Motor: 11KW, 1 unit (New process design, mechanical structure adjustment, achieves the same torque output as traditional process machinery with 15KW, with the purpose of energy saving)

11. Power: 11KW

12. Volume: (W×D×H) 2200×880×1480mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearings with a large contact area... Offers a 2/3 longer lifespan than traditional copper bushes.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron using traditional technology)

Power supply: 5φ, AC380V, 20A

16. Weight: 1500 kg
