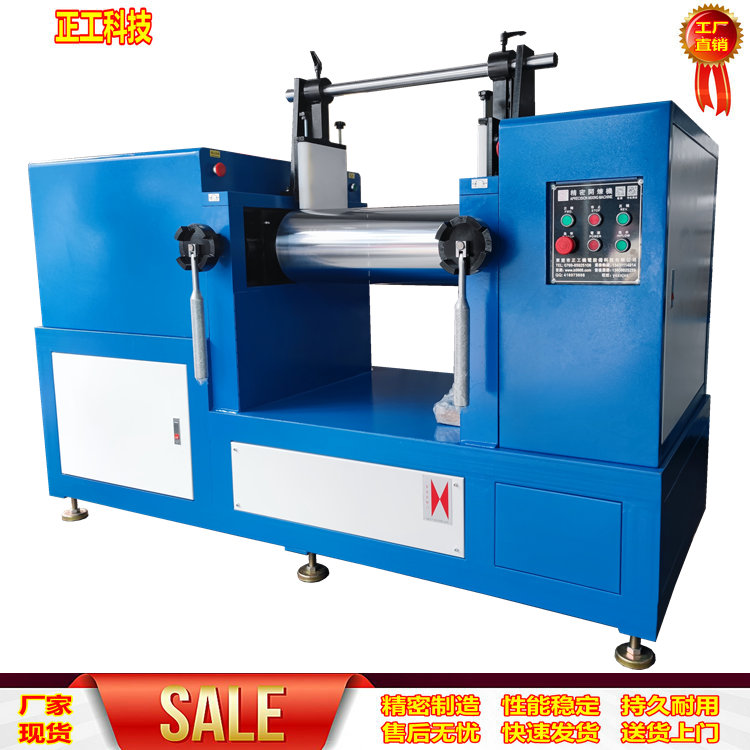

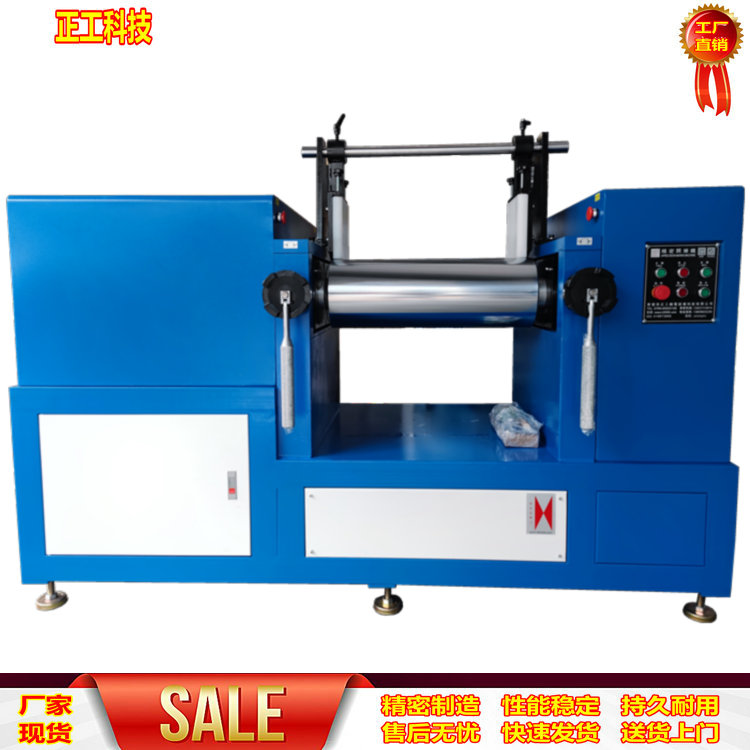

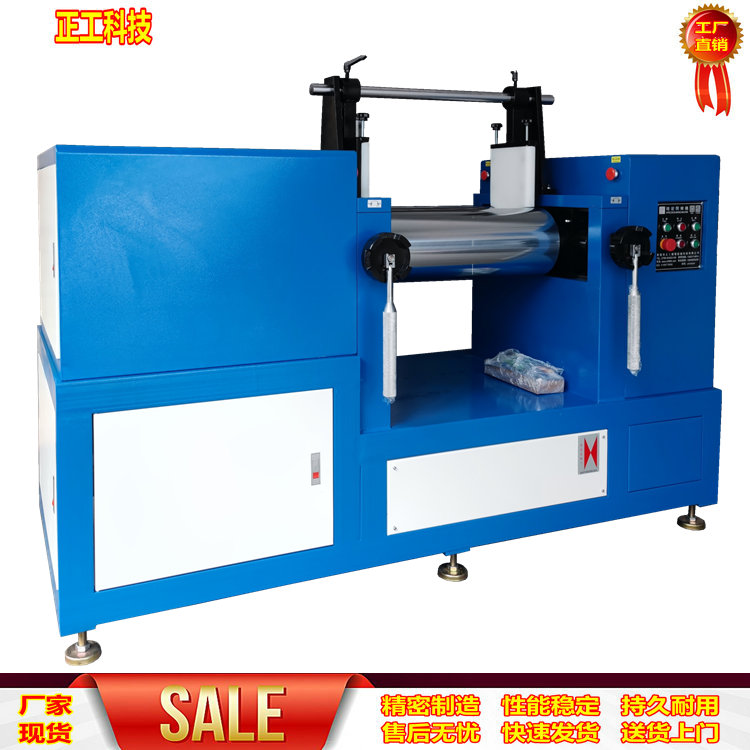

ZG-230L Rubber Mixing Machine, 9-inch Water-Cooled Open Mixing Mill

Features and Uses: Its primary function is to ensure the product meets the customer's required quality and color. To achieve this, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly mix the test raw materials and additives.

Technical Specifications:

Mixed Capacity: 2-10 kgs

2. Drum Temperature: Room Temperature ~ Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No Specific Requirement

5. Roller Speed: Fixed speed (approx. 19 RPM, variable speed available; other speeds can be customized)

6. Roller Speed Ratio: 1:1.35 (other ratios available for customization)

7. Roller Size: φ230mm x L 650mm (high hardness surface hard chrome plating, non-stick, non-peel)

8. Roller Spacing: adjustable from 0.1 to 10mm

9. Safety Device: Multiple touch-sensitive emergency stop buttons (with reverse function, ergonomic design, no worker injuries)

10. Motor: 11KW, 1 unit

11. Power: 11KW

12. Volume: (W×D×H) 2200×880×1480mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearing with a large contact area... extends the service life by 2/3 compared to traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter, smaller in volume, higher mechanical strength, and better toughness than cast iron used in traditional processes)

15. Power Supply: 5φ, AC 380V, 20A

16. Weight: 1100 kg
