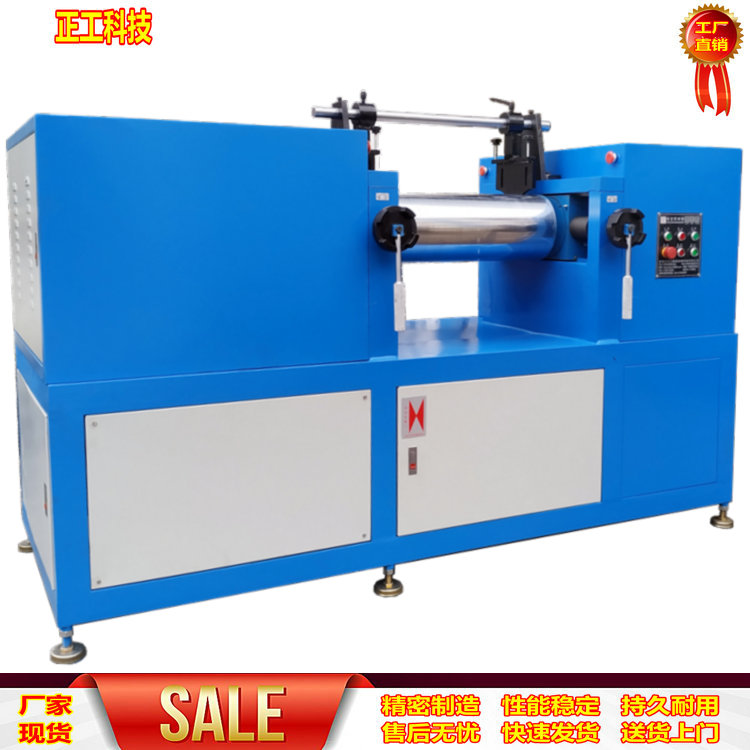

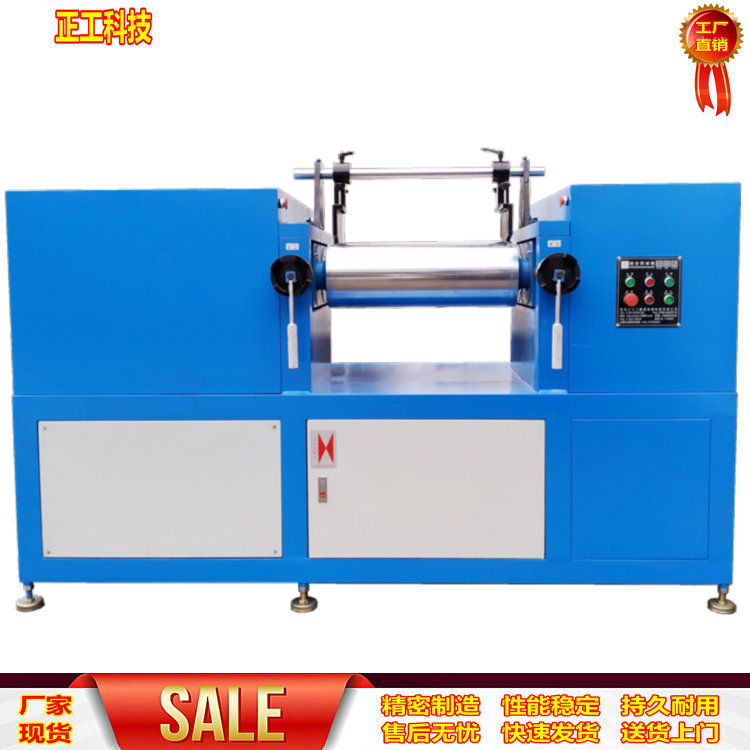

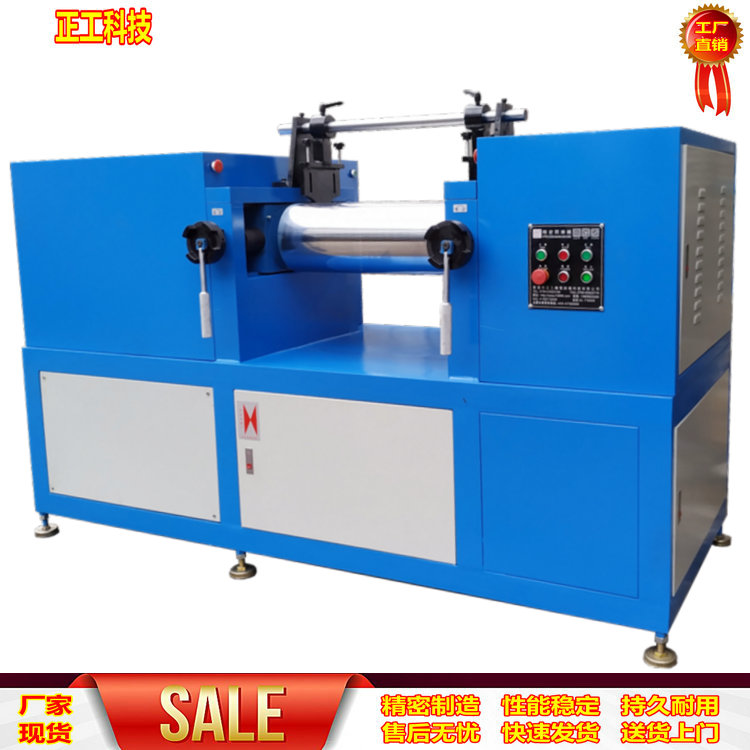

ZG-250 Double-Screw Open Mill, 10-Inch Water-Cooled Open Mill

Features and Uses: The primary function is to ensure the products meet the customer's required quality and color standards. To achieve this, the results of experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly blend the raw materials and additives used in the experiments.

Technical Specifications:

Mixed Capacity: 2—12kgs

2. Roller Temperature: Room Temperature to Tap Water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No Specific Requirement

5. Roller Speed: Fixed speed (approx. 19 RPM, variable speed available with other speeds upon request)

6. Roller speed ratio: 1:1.35 (other ratios available upon customization)

7. Roller Size: φ250mm x L 650mm (high-hardness surface hard chrome plated treatment, non-stick, non-peel)

8. Roll spacing: adjustable from 0.1 to 12mm; roller material is tool steel (hard chrome plated surface)

9. Safety Device: Multiple push-button emergency stop switches (with reverse function, ergonomic design, ensuring no worker injuries)

10. Motor: 15KW, 1 unit (New process design, mechanical structure adjustment, with 18.5KW output torque as that of traditional process machinery, achieving energy-saving purposes)

11. Power: 15KW

12. Volume: (W×D×H) 2200×880×1480mm - Significantly smaller than the traditional process with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearing with a large contact area. Offers a 2/3 longer service life than traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron using traditional processes)

Power: 5 cores, AC380V

16. Weight: 1900 kg
