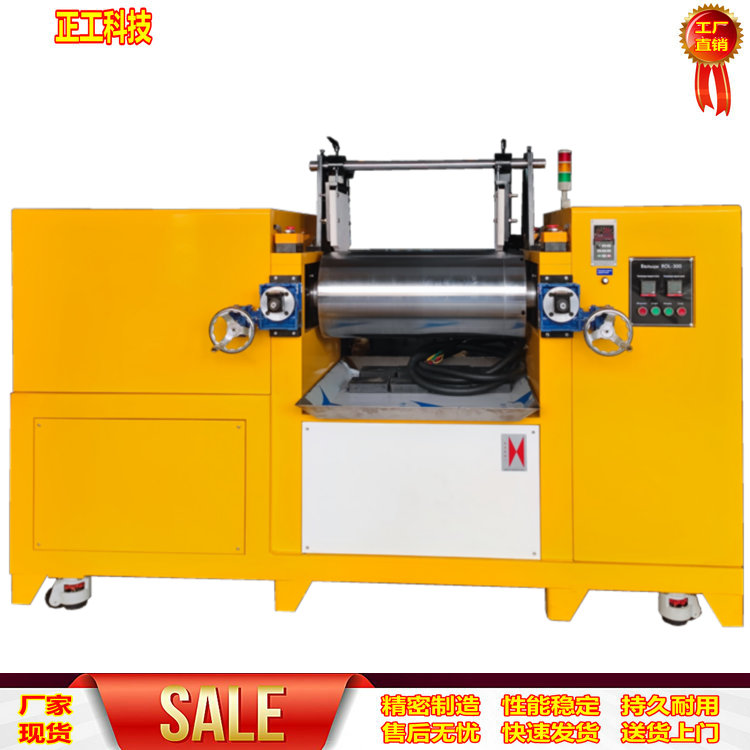

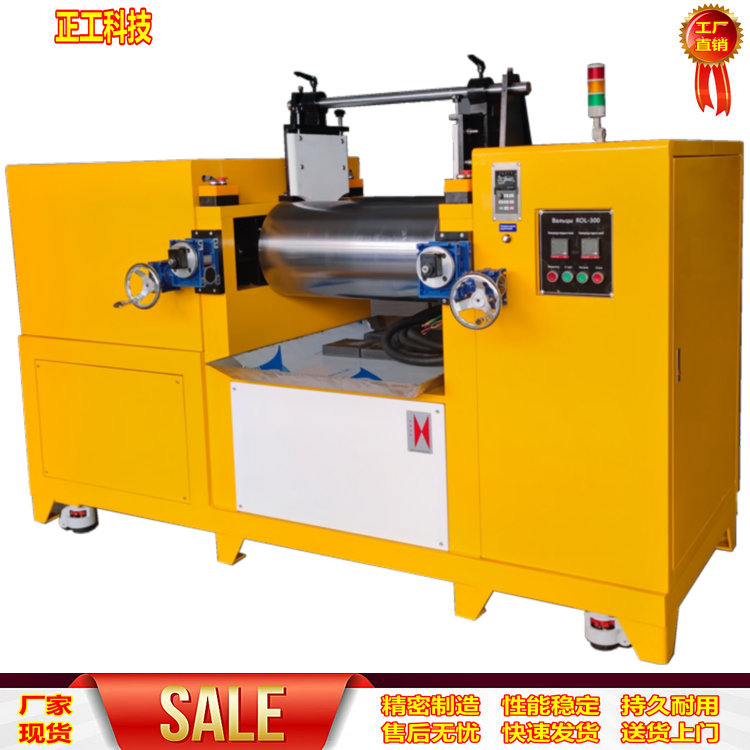

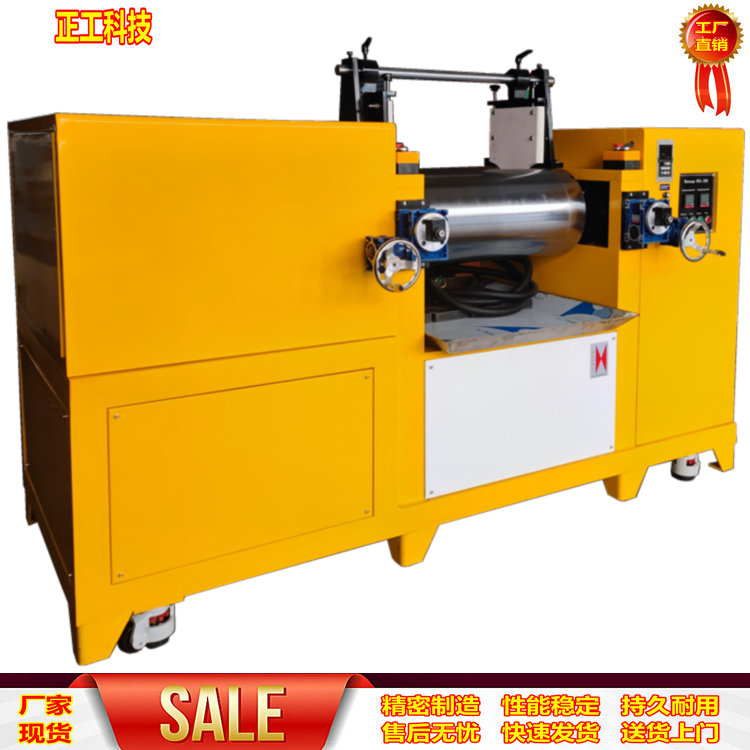

Model: ZG-300LRD 12" Single Frequency, Single-Speed Electric Heating Water-Cooled Open Mill (Safety Guard & Alarm Light)

Mixed Capacity: 0.2-10 kgs

2. Roller Temperature: Room temperature ~ 300℃ (Cooling with tap water)

3. Heating Method: Electric heating water-cooled dual-function unit (new process design, plastic blending machine, automatic constant temperature control)

4. Temperature Accuracy: ±2℃ (Equipped with a high-precision PID intelligent microcomputer control system, automatic calculation of internal constants, offering higher accuracy than manual settings and saving time. Includes over-temperature protection to safeguard machinery and production materials.)

5. Roller Speed: Single variable speed, single speed (with 1 15kW variable frequency inverter)

6. Roller Speed Ratio: 1:1.27 ratio available for customization according to customer requirements.

7. Drum Size: φ300mm × L720mm (high hardness surface hard chrome plated treatment, non-stick, non-delamination)

8. Roll spacing: adjustable from 0.1 to 10mm

9. Safety Device: Multiple push-button emergency stop buttons (with reverse function, ergonomic design, no worker injuries during operation)

10. Motor: 15KW unit (New process design, mechanical structure adjustment; provides the same torque output as the traditional process machinery with 30KW, achieving energy-saving goals)

11. Power: 15KW

12. Volume: (W×D×H) 2600×1150×1480mm - Smaller than that of traditional processes.

13. Roller Lubrication: Exceptional wear-resistant bearings

14. Mechanical Structure: Steel plate (lighter, smaller in volume than cast iron used in traditional processes, with higher mechanical strength and better toughness)

Power: 5∮, AC380V

16. Weight: Approximately 2,600 kg
