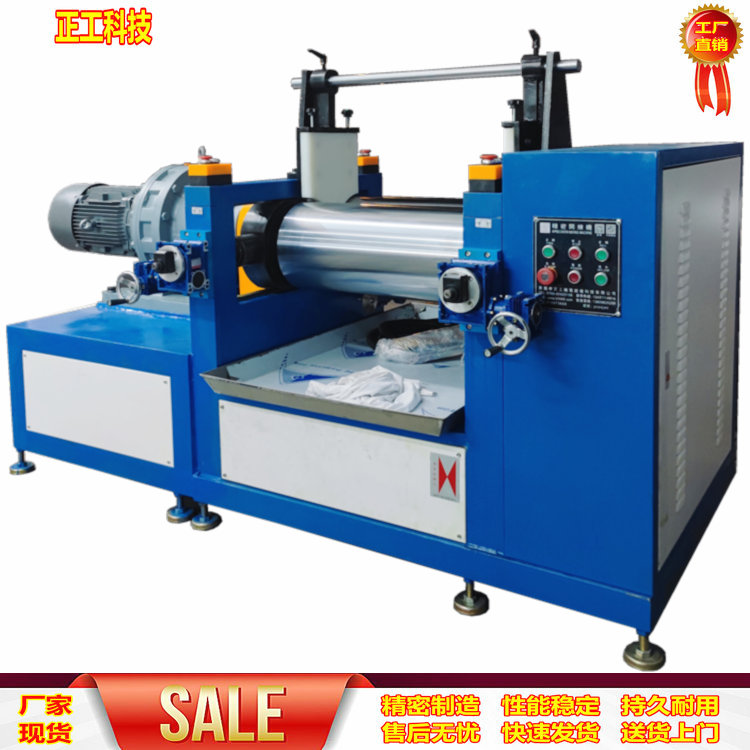

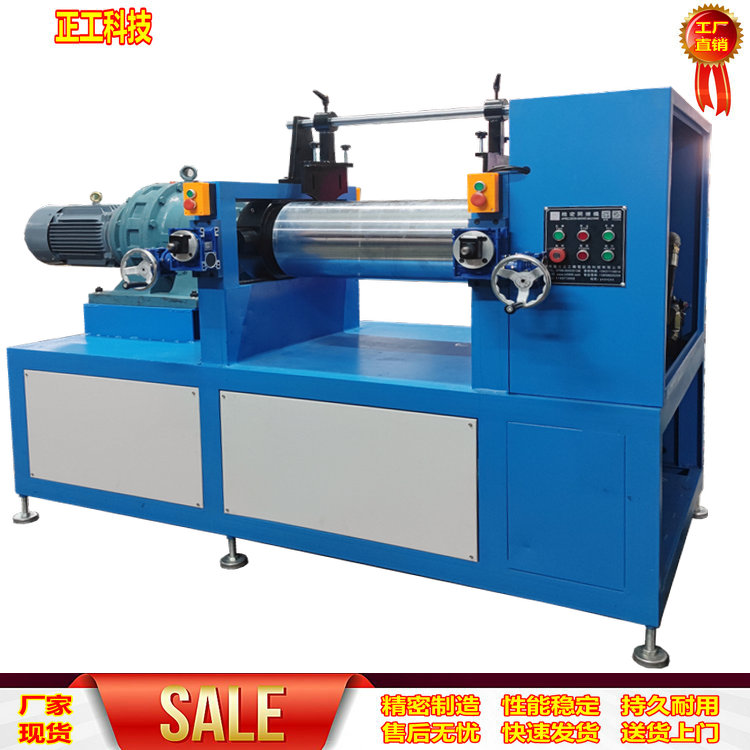

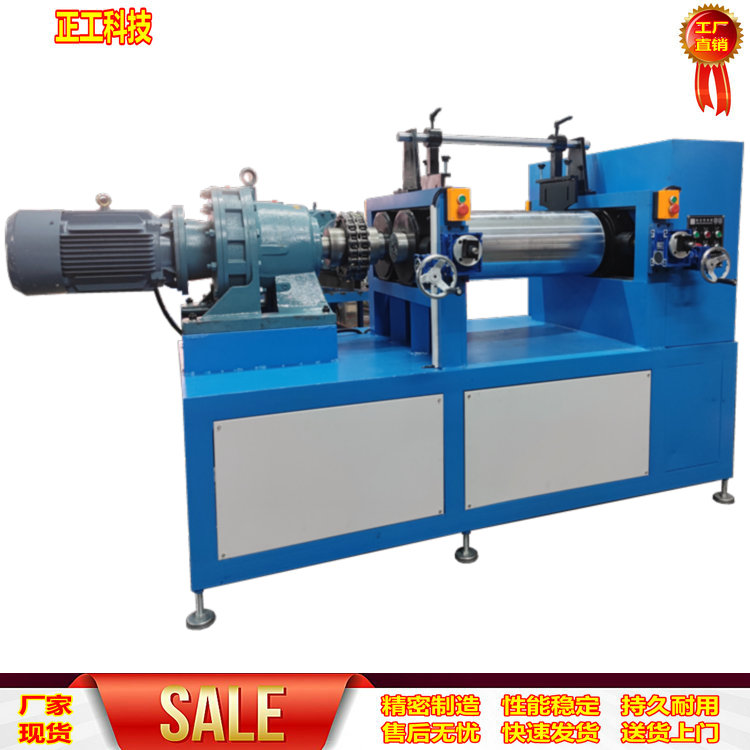

ZG-300 12-inch Water-Cooled Open Mill

Features and Uses: The primary function is to ensure the products meet the quality and color specifications required by the customers. To achieve these standards, the results of the experiments and their ratios are applied to the production line. This machine is specifically designed to uniformly mix the test materials and additives.

Technical Specifications:

Mixed Capacity: 2-25 kgs

2. Drum Temperature: Room temperature ~ Tap water °C

3. Heating Method: Frictional Heating

4. Temperature Accuracy: No specification required

5. Roller Speed: Constant speed at approximately 19 RPM

6. Roller speed ratio: 1:1.35

7. Roller Size: φ300mm × L720mm (high-hardness surface chrome plated treatment, non-stick, non-peel)

8. Roller Spacing: adjustable from 0.1 to 15mm; roller material is tool steel (with hard chrome plating on the surface)

9. Safety Device: Multiple touch-sensitive emergency stop buttons (with reverse function, user-friendly design, ensuring no worker injuries)

10. Motor: 15KW, 1 unit (New process design, mechanical structure adjustment, with the same output torque as the traditional process machinery with 45KW, achieving energy-saving purposes)

11. Power: 15KW

12. Volume: (W×D×H) 2600×1180×1680mm - Significantly smaller than traditional processes with the same functionality, reducing area waste.

13. Roller Lubrication: Exceptional wear-resistant bearing with a large contact area. Offers a lifespan 2/3 longer than traditional copper sleeves.

14. Mechanical Structure: Steel plate (lighter in weight, smaller in volume, higher in mechanical strength, and better in toughness than cast iron used in traditional processes)

15. Power Supply: 5φ, AC380V

16. Weight: 2000 kg
