Performance Features:

New generation servo-driven hydraulic press; utilizes a servo dual-body motor-pump system in place of the traditional hydraulic electrical system.

Reduce energy consumption by 50%, hydraulic oil by 50%, and noise by an average of over 20dB.

Discontinue the electro-hydraulic proportioning system, simplify the hydraulic system for higher reliability and ease of maintenance;

Pressure is controlled by a servo motor with a pressure sensor in a closed-loop system, while position is managed by a servo motor with a displacement sensor in a closed-loop system, achieving numerical control of all parameters.

Mold parameter storage function, fault diagnosis function;

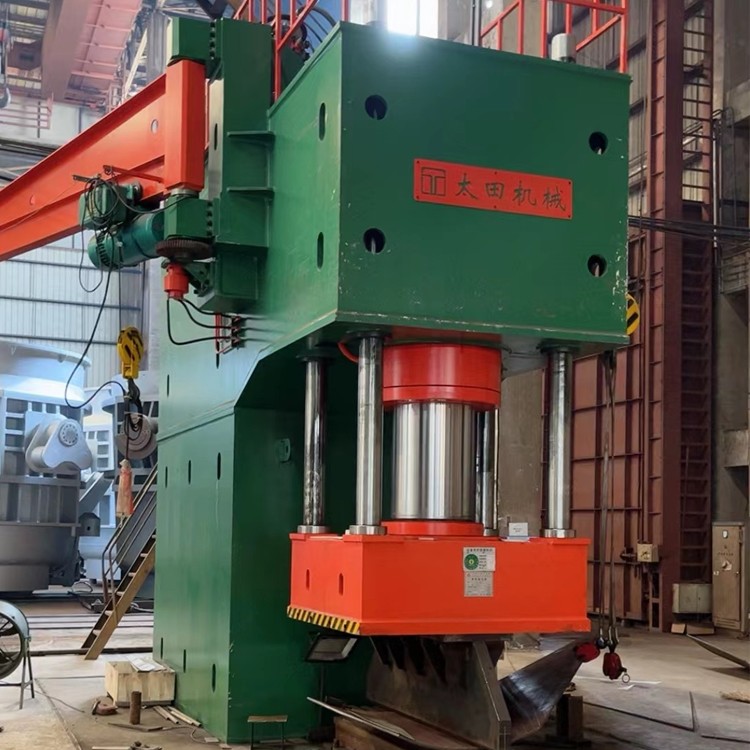

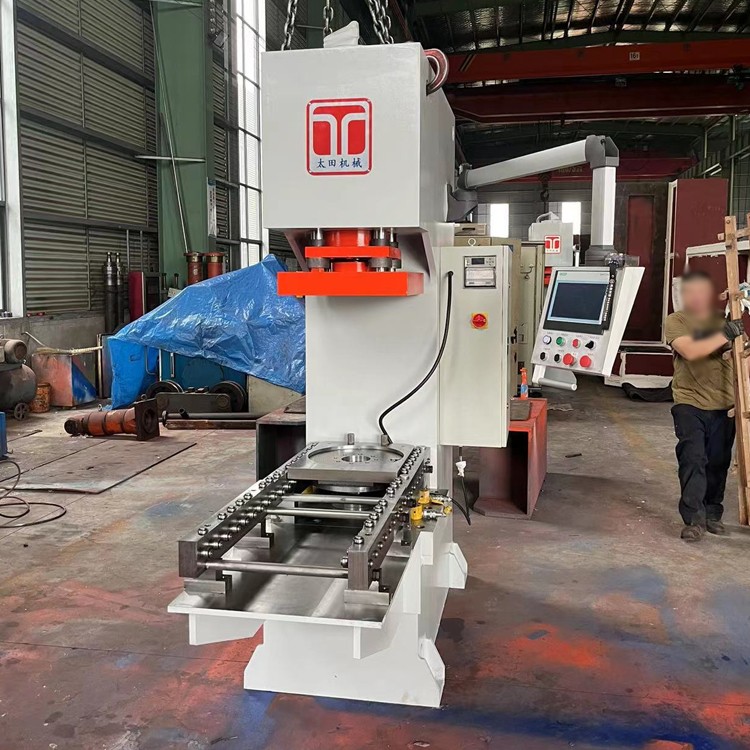

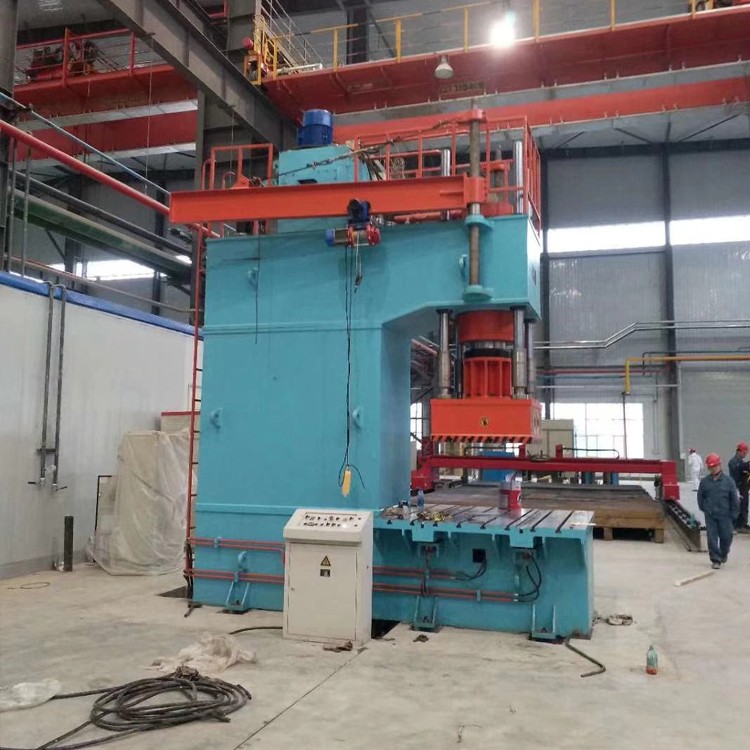

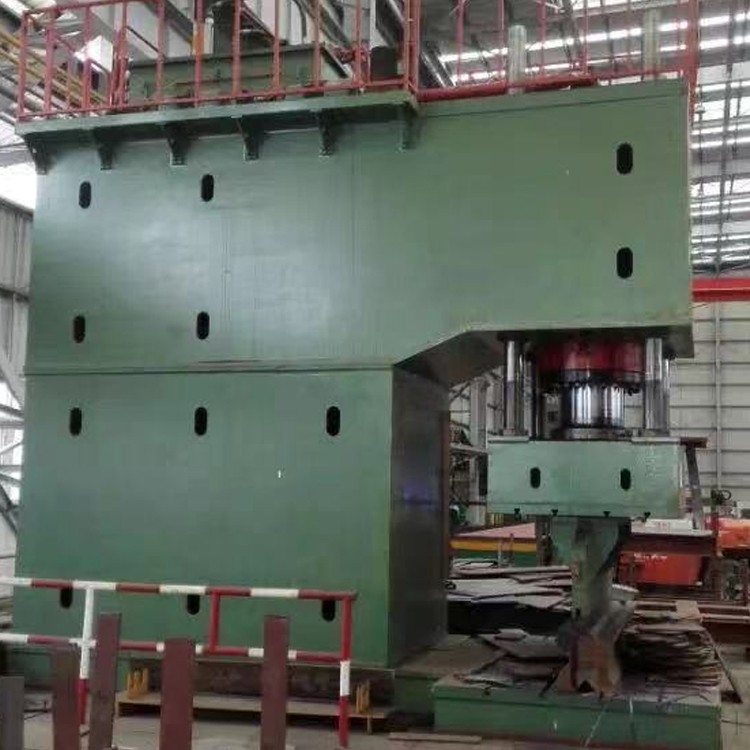

Two structural options available: Split-frame structure, four-poster structure.

Complete safety devices and control systems

Application Field:

Suited for various stamping processes such as stretching, bending, forming, blanking, and flanging, especially applicable to the following fields:

Automotive Parts: body panels, brake pads, fuel tanks, undercarriages, bridge shells, bumpers, etc.

Appliance Parts: Washing Machine Components, Rice Cooker Parts, TV Parts, Refrigerator Parts, etc.

Kitchenware; washing machine trays, kettleware, stainless steel utensils, other various containers;

Others: Tractors, motorcycles, aerospace, aviation, etc.
