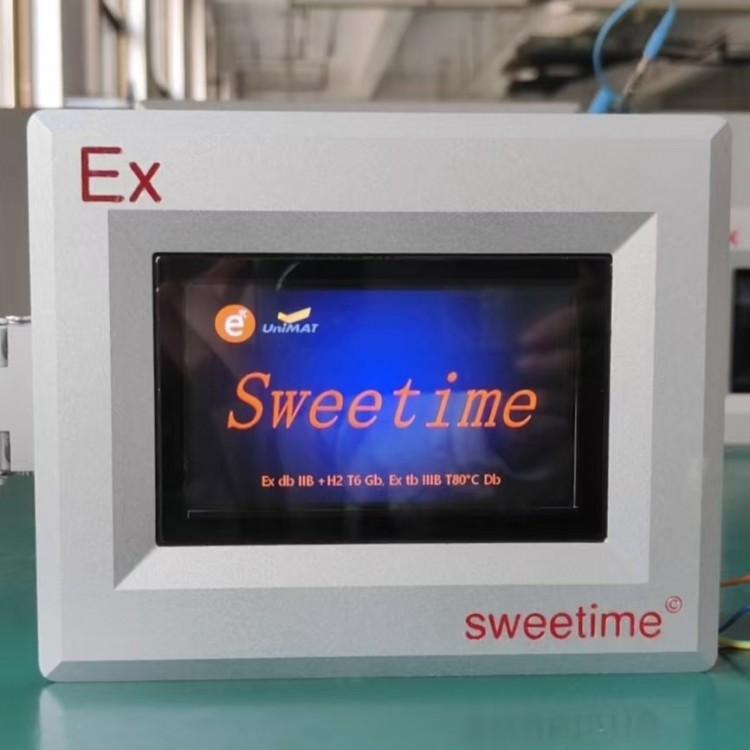

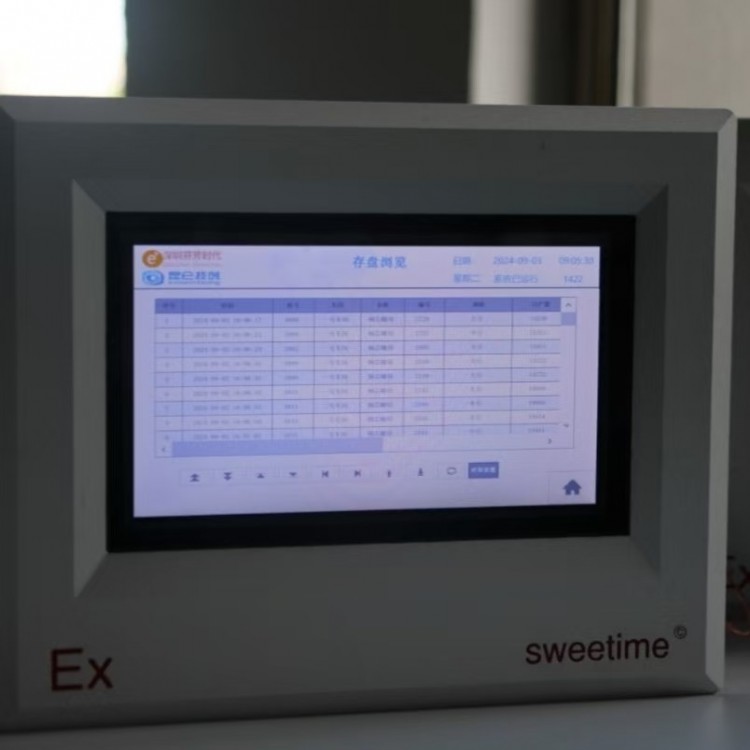

Industrial explosion-proof touch screen

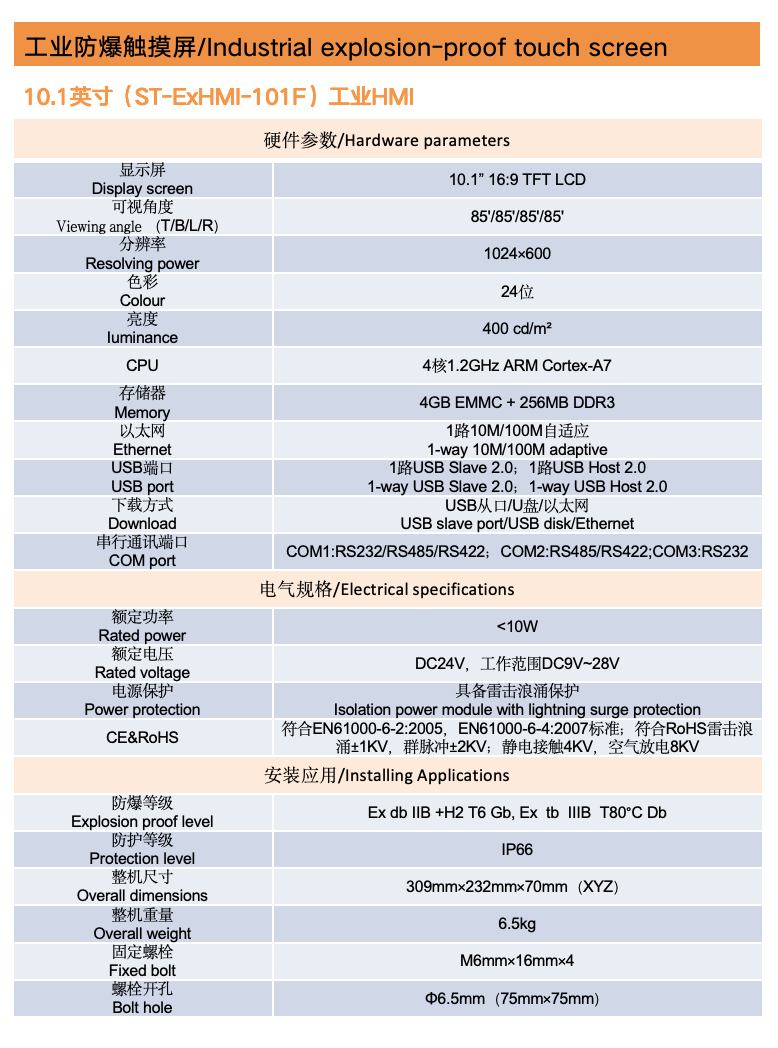

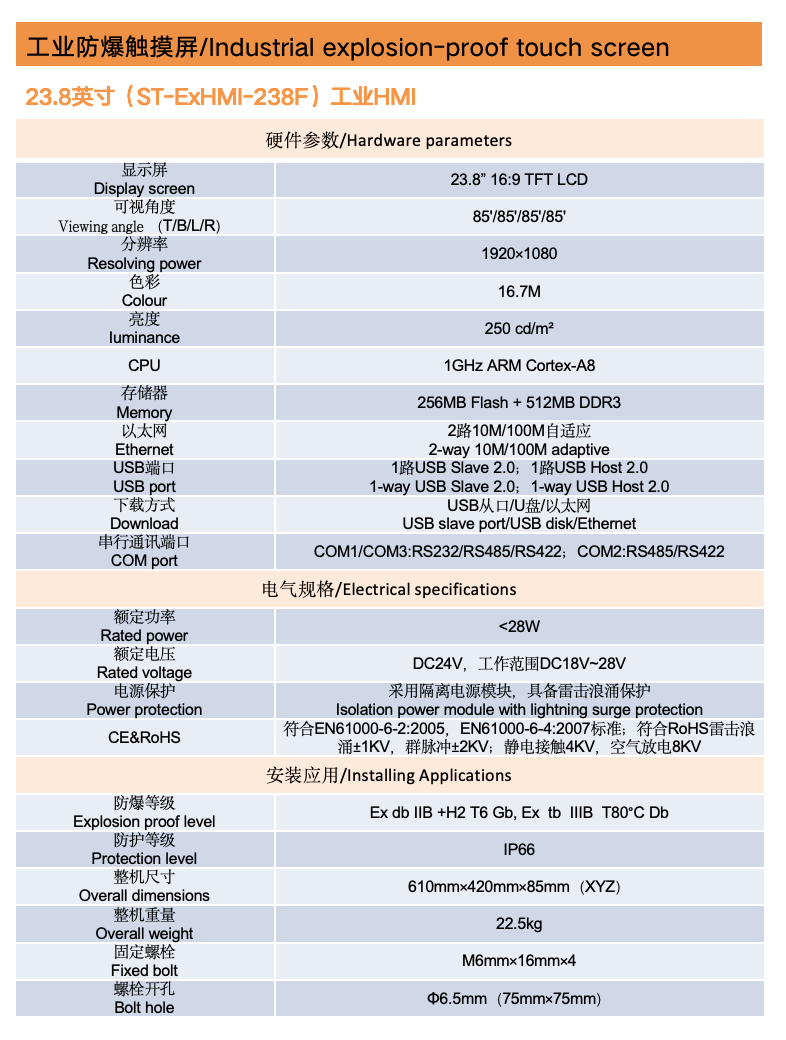

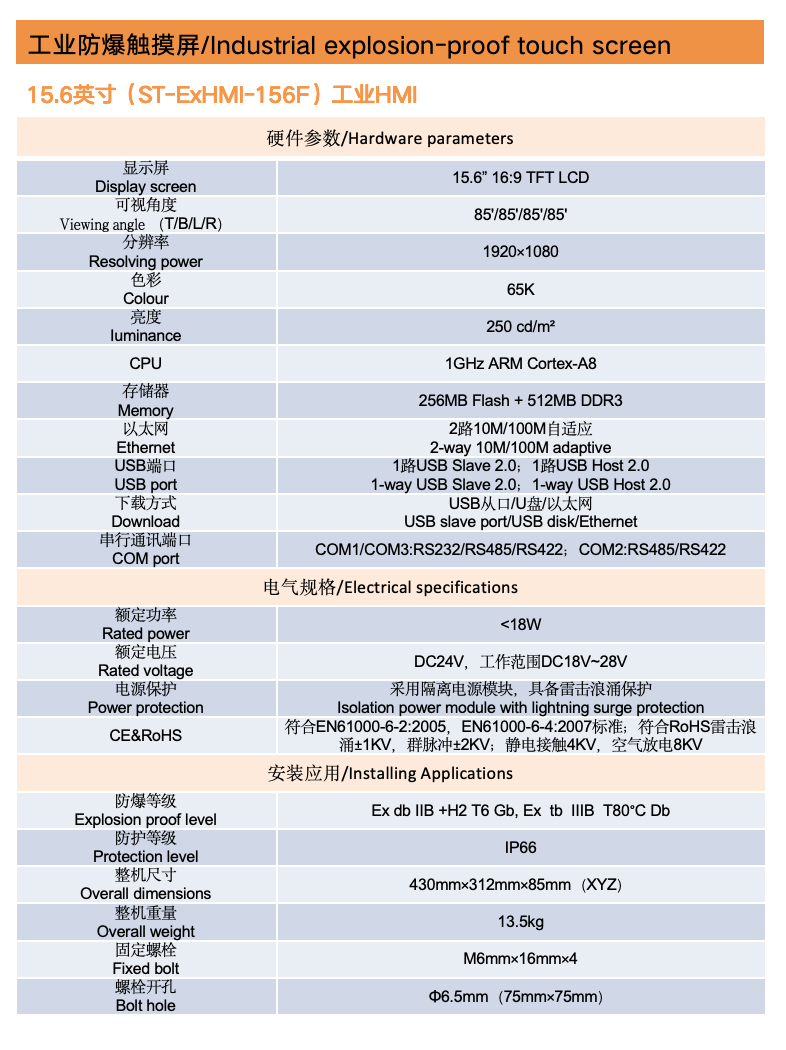

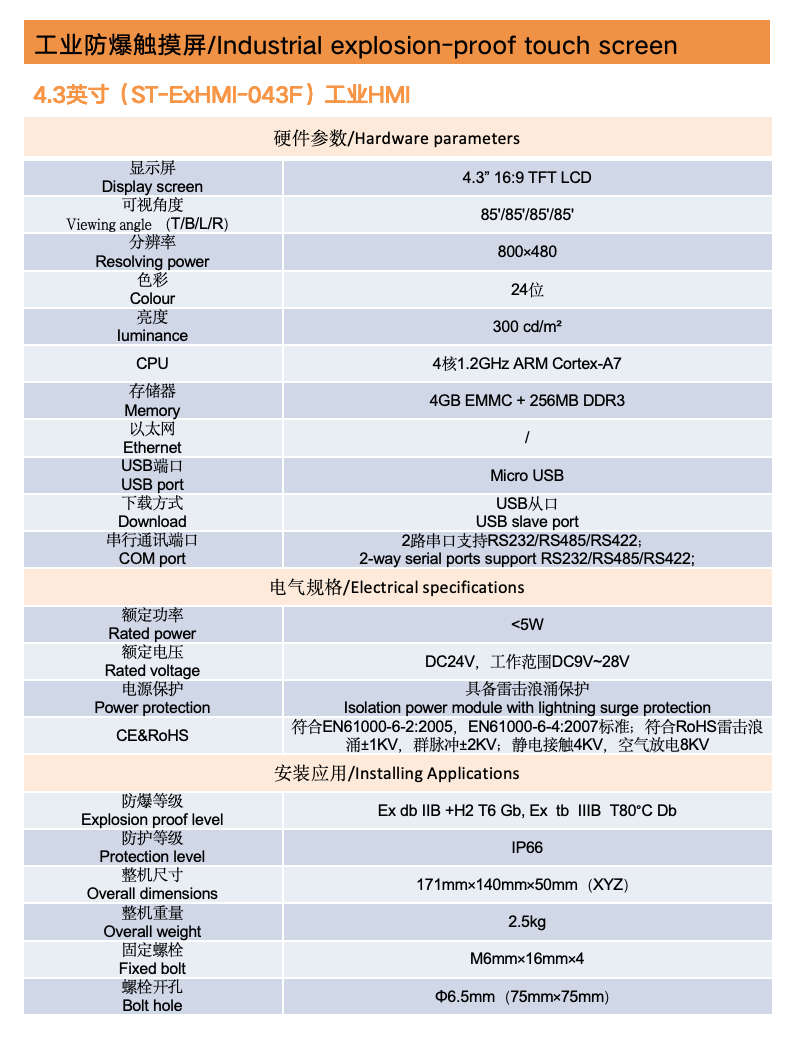

Dimensions:4.3Inch/7Inch/10.1N/A/15.6Inch/23.8Inch

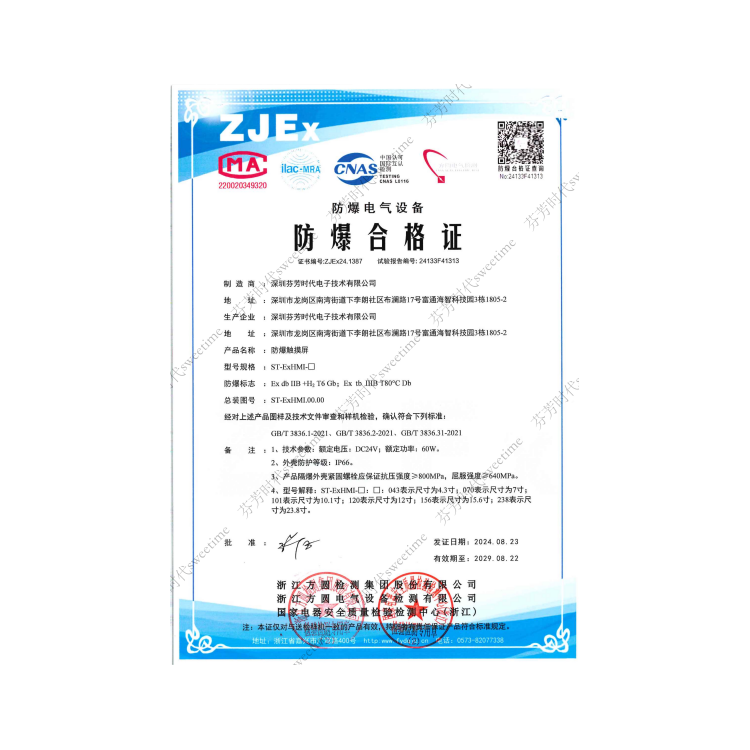

    ST-ExHMISeries industrial explosion-proof touch screens, innovatively utilizing capacitive touch sensing technology for explosion-proof display screen touch operations; and creatively achieving a flat appearance of the window and explosion-proof housing. This product has obtained explosion-proof certification, suitable for human-machine interface in explosive hazardous areas.

Features/Functional characteristics

Explosion-proof grade:Ex db IIB +H2 T6 Gb, Ex  tb  IIIB  T80°C DbIP rating:IP66；

Extra-thick, explosion-proof tempered glass windows, oil-resistant, wear-resistant, and corrosion-resistant.

High-end capacitive touch sensor, with rapid response and precise positioning.

Aluminum alloyCNCManufacture explosion-proof casings with sandblasting and oxidation surface treatment.

304Stainless steel fasteners, corrosion-resistant and durable, withstand harsh working conditions.

Three-axis four-bar linkage double hinge mechanism, with a large opening and closing angle and tightly fitted sealing surfaces.

Three-proof sealing uses solid silicone strips, withstanding high temperatures and aging, durable and long-lasting.

304Stainless steel sheet metal bracket, easy to install and sturdy structure.

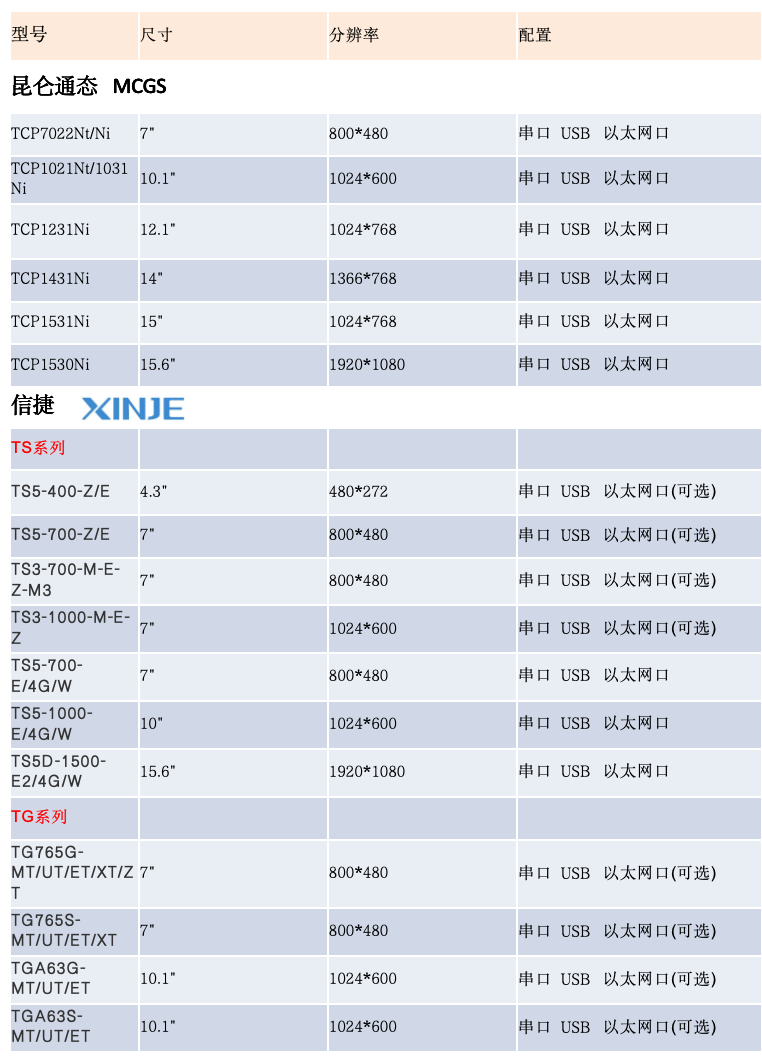

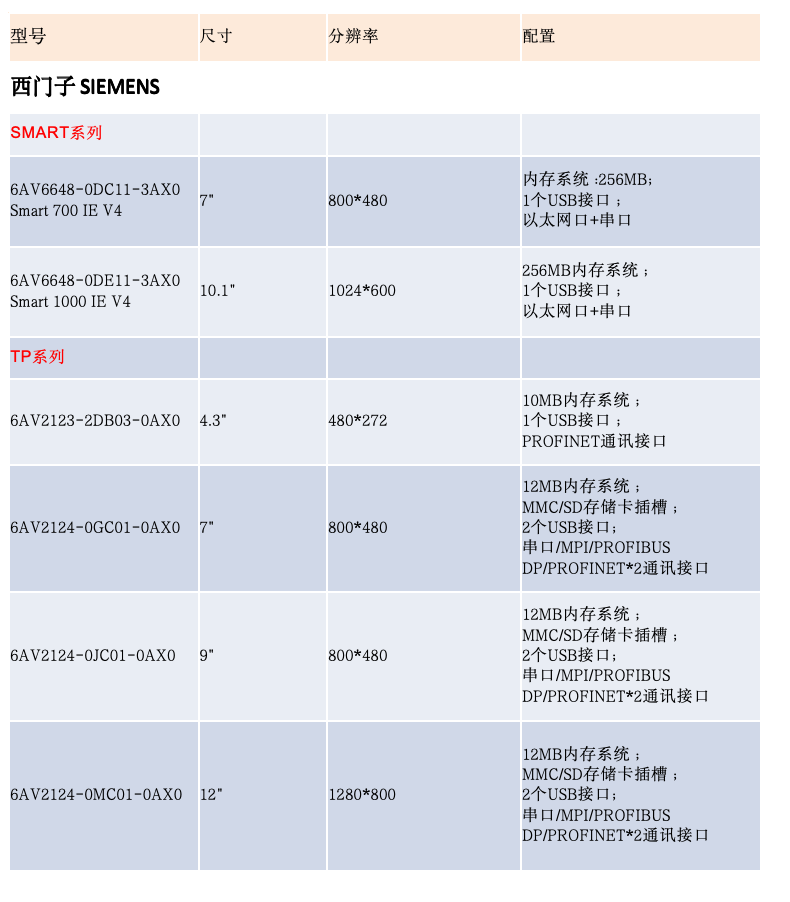

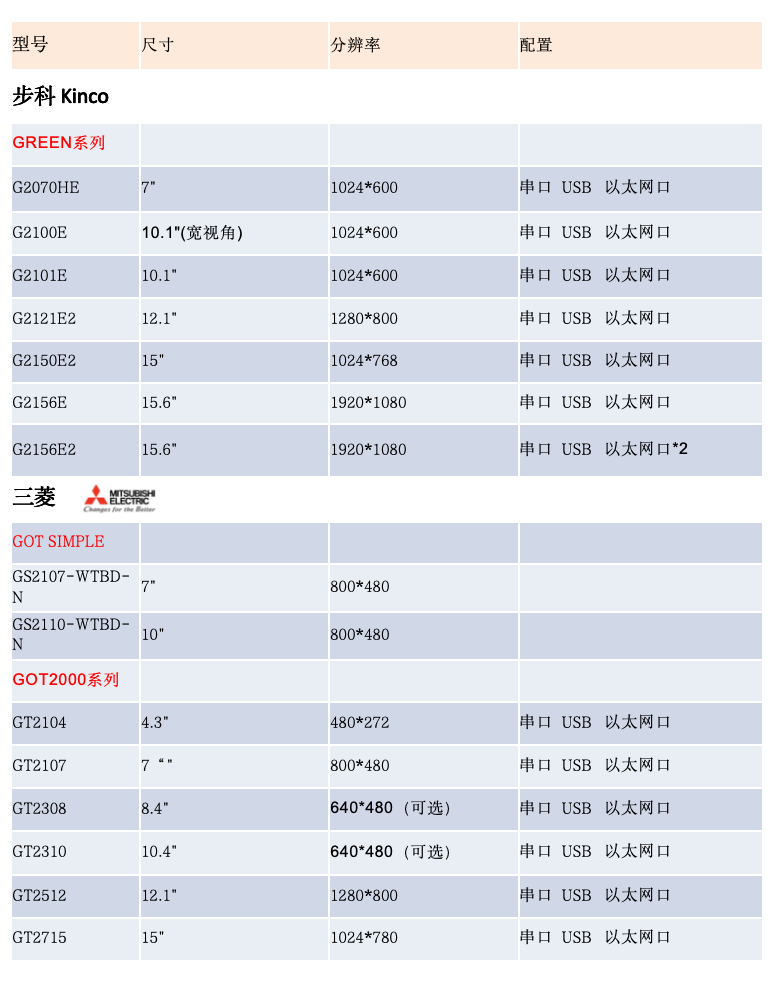

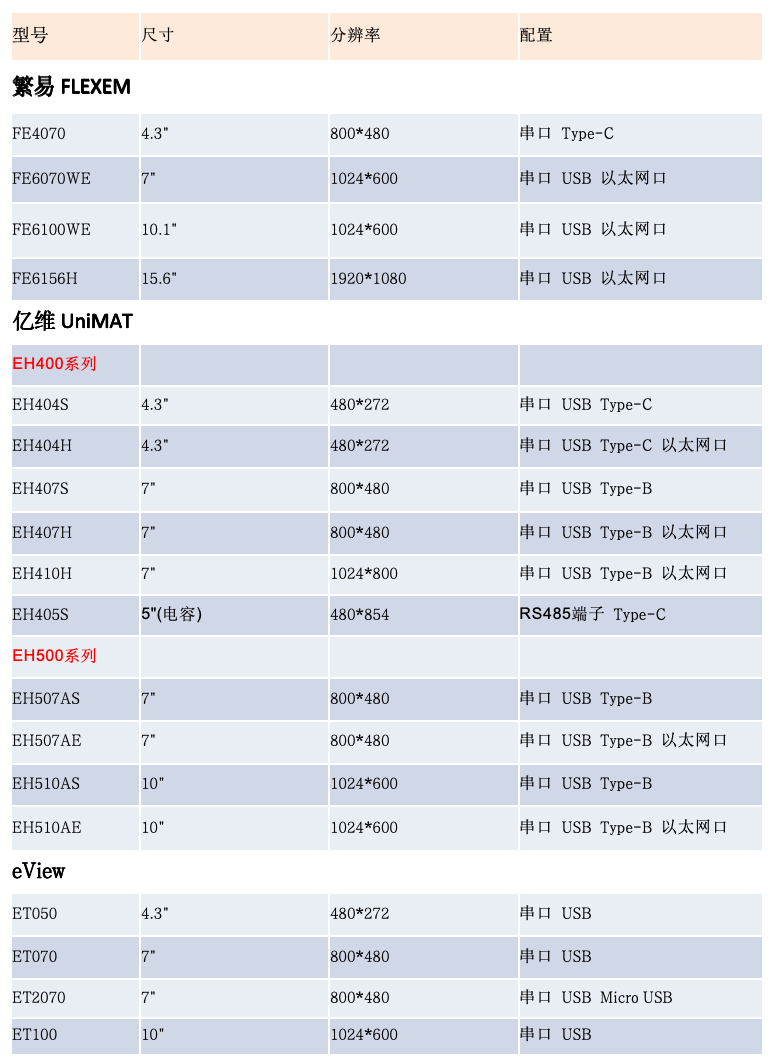

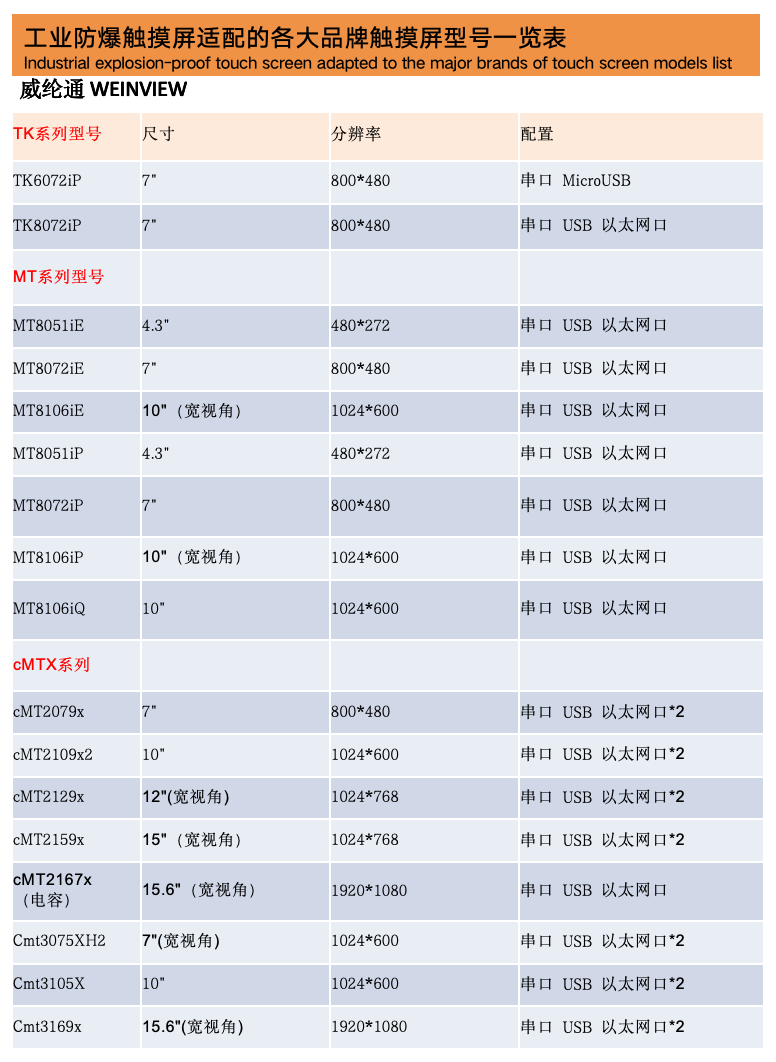

Compatible with major brandsHMISupports user customization.

Application Venue/Application site

Suited for explosive gas environments.

Suitable for environments with combustible dust.

Applicable for temperature range ofT1-T6environment;

Suited for explosive and hazardous environments in oil and petrochemical, chemical, grain, coal mining, paint, textile, dyeing and printing, etc.
