Product Overview:

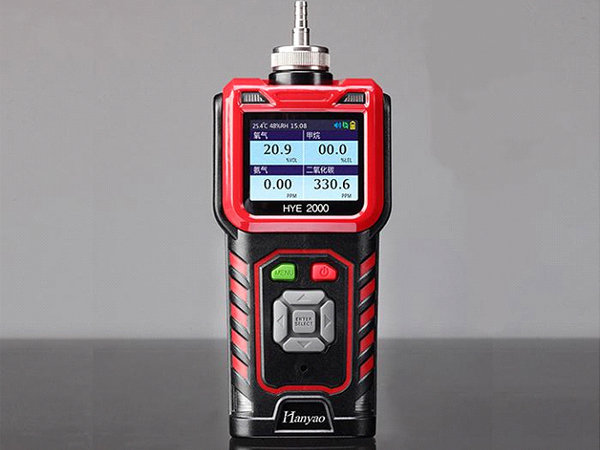

Product Overview: The HYE 2000 Pump-Extractable Portable Composite Gas Detector and Alarm is an intelligent high-performance detection instrument capable of continuously monitoring a variety of gases (volatile organic compounds VOC, VOC, flammable gases, and toxic gases) and featuring a fall detection alarm function. The instrument utilizes over 30 types of plug-and-play smart sensors, including original imported PID photoion, electrochemical toxic gas sensors, oxygen, catalytic combustion sensors, and infrared combustible gas sensors, CO2 sensors, and CH4 sensors, allowing simultaneous detection of up to 4 toxic and harmful gases. The sensors can be flexibly combined and configured to meet the analysis and detection needs of different industries. The wireless function of the HYE 2000 enables safety personnel to access real-time instrument data and alarm status from anywhere. The intuitive data display, the large 2.3-inch full-color screen, faster response speed, and high-quality shell design elevate the level of safety protection for workers to a new height.
Parameters: ◆ Over 30+ plug-and-play smart original imported sensors to choose from, including volatile organic compounds (VOC), toxic and harmful electrochemical sensors, oxygen, catalytic combustion sensors, and infrared sensors; flexible configuration with any sensor combination.
Parameters: ◆ Active pump suction type, short response time, embedded 32-bit ultra-low power microprocessor, with small detection error and high resolution.
Parameters: ◆ Intelligent temperature and humidity compensation algorithm, full software auto-calibration function for target points from level 3 to above level 8, ensuring the accuracy of measurement results; automatic detection of the working status of all sensors and components upon power-on.
Parameters: ◆ The four gas sensors can be independently turned on or off, effectively preventing cross-interference between the detected gases and extending the service life of the sensors.
Parameters: ◆ Built-in temperature and humidity sensor, displaying real-time environmental temperature and humidity.
Product Features:
Product Features:
2.3-inch full-color display with a large and clear backlight that shows measurement information under any lighting conditions, a user-friendly interface with simple and easy-to-understand UI color icons and a 7-button navigation system, showcasing the design's humanization and internationalization.
Supports free switching between concentration units of PPM, %VOL, mg/m3, mg/L, and allows for the free switching between Chinese and English operational interfaces.
Standard configuration with a 6000mAh high-capacity lithium battery, single gas operation time exceeding 30 hours; four-in-one gas operation time over 24 hours; compatible with mobile power supply and charging, compatible with universal USB port mobile phone chargers.
Standard configuration of a 5V 2.1A high current USB charger with detachable charging plug, each charger comes with four connectors (US two flat pins, European two round pins, British Hong Kong three-prong plug, Australian two slant pins).
Real-time data transmission with accurate local and remote wireless alarm notifications via five alarm methods, including a fall detection feature for personnel, ensuring safety is always in control.
High-intensity wear-resistant polycarbonate shell, sturdy and waterproof, anti-corrosion, and electromagnetic radiation protection; scientifically designed air pathways and chambers, ensuring sensors are not interfered with by the environment; protection rating reaches IP66.
◆ Automatically arranges based on sensor quantity, with real-time and scheduled detection modes available. Multiple storage options include auto, manual, and single-point storage. Storage intervals are customizable, capable of storing up to 300,000 data sets with date and time tags. With optional micro SD card, it can store over 10 million data sets. Features data recovery functionality, allowing for partial or full data restoration.
◆ Short-distance RTU wireless transmission or GPRS wireless transmission over any distance can transmit real-time detection data and alarm status to the safety center via the built-in wireless module function.
Supports USB download of measurement data, and features Bluetooth wireless printing with a portable, mini printer.
