Custom Dive Propeller

LanhengBrandDiving PropellerIs for importGermanySubmersible motor sealed with advanced sealing technology. After years of practical exploration, thanks to its innovation in form, structure, and testing methods, LanhengDive Propulsion DeviceOverall performance has reached the level of similar foreign products.
  QJBTypeDiving AgitatorIt can be divided into two major series: Mixed Stirring and Low-Speed Push Flow.
  The Mixed Series Agitator is suitable for mixing suspended liquid in wastewater treatment plants and industrial processes.
  Low-speed Flow Impeller Mixers are suitable for aeration tanks in industrial and urban wastewater treatment plants.And oxidation ditches.AAOPoolsA2OPonds, Anaerobic Ponds, Anaerobic PondsIts powerful water flow generates low-tangential flow, which can be used to create water currents during circulation, nitrification, denitrification, and phosphorus removal stages.

Application Scope:

  The mixer should be able to operate continuously under the following conditions:
  1Medium temperature not exceeding40°C；
  2MediumPHValue in5~9Interval
  3Liquid density does not exceed1150kg/m3；
  4Long-term underwater operation, diving depth generally does not exceed20m。

Key Points to Note:

  Diving mixerMust be fully submerged in water for work; cannot operate in environments with flammable, explosive, or highly corrosive liquids; steel expansion bolts must be securely fastened according to specifications, and the cables must be tightened and securely fastened after installation..
  Diving Propulsion DeviceDuring selection, when the diameter of the浆叶 exceeds2MWe recommend using a gear box reducer..

Performance Features:

  1Compact structure, easy operation and maintenance, convenient installation and repair, and long service life.
  2The impeller features an excellent hydraulic design structure with high work efficiency. The swept-back blades have self-cleaning capabilities, preventing debris entanglement and blockages.
  3Combining with an aeration system can significantly reduce energy consumption, markedly increase oxygenation, and effectively prevent sedimentation.
  4Motor winding insulation gradeFGrade, Protection Level:IP68Selecting anti-condensation devices for bearings and motors ensures safer operation of the motor.
  5Two mechanical seals; the mechanical seals are made of carbonizedSiliconMaterial has been sealed, with rubber material being fluoroelastomer.

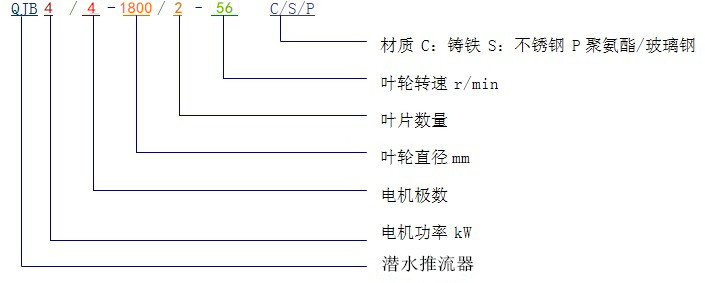

Model Representation Method:

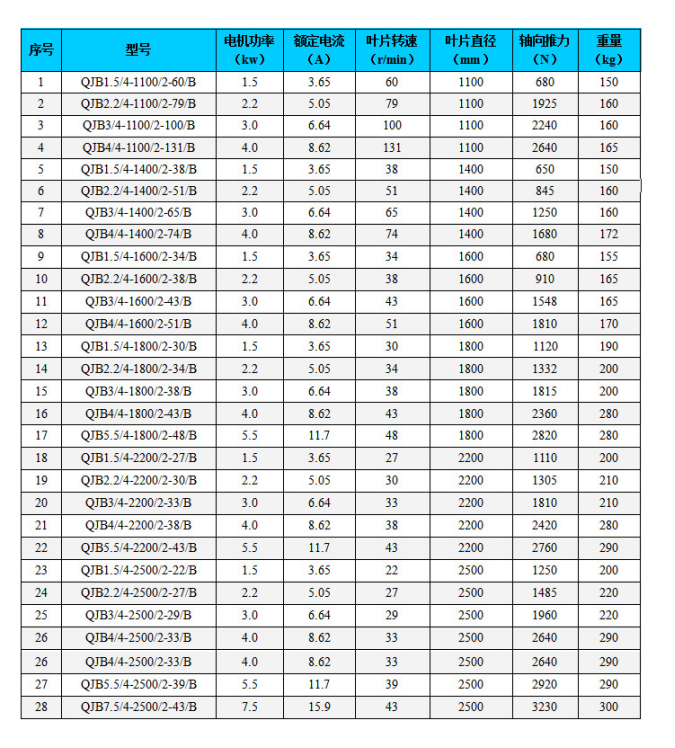

Performance Parameters:

  Mixers at rated voltage380VFrequency:50Hz,Winding insulation gradeFGrade, Protection LevelIP68, Operating SystemⅠUnder the terms.
