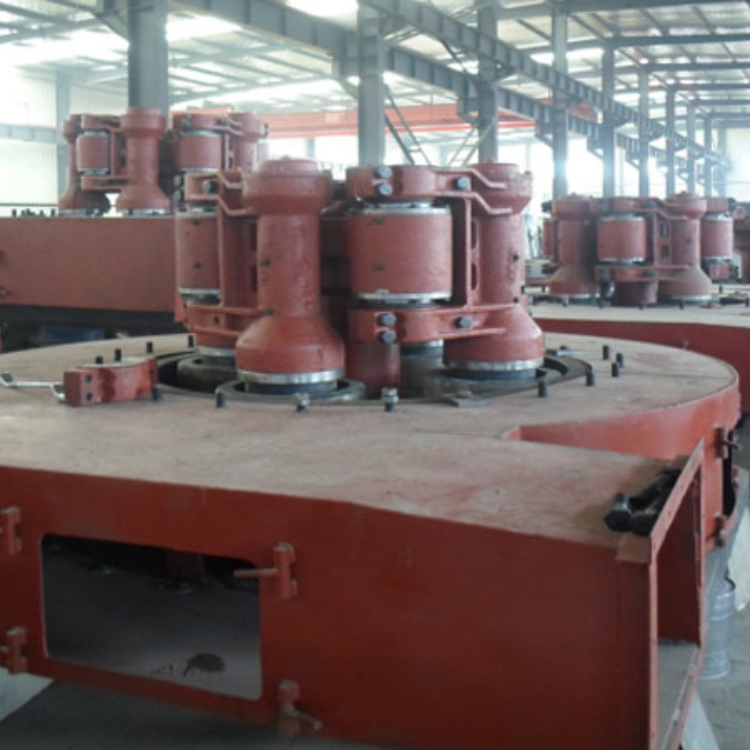

ZYThe reciprocating pendulum series Raymond mill is aTechnological innovation based on the R-type pendulum mill. The technical indicators of the reciprocating Raymond mill have been significantly improved compared to the traditional R-type Raymond mill, making it a new energy-saving Raymond mill. The ZY series longitudinal pendulum mill is suitable for grinding materials such as limestone, calcite, marble, talc, gypsum, barite, fluorite, zeolite, manganese ore, ilmenite, phosphate rock, bentonite, starch, kaolin, etc., with hardness below Mohs 7 and moisture content below 6%, non-flammable and non-explosive. The fineness can be adjusted between 0.18-0.015 (80-800 mesh), serving as an upgraded and replaced product for the R-type pendulum mill.
Technical Advantages
(1) Brand new grinding system:
1. The new technology incorporates a novel pendulum grinding roller assembly. The roller and ring maintain a balanced state during grinding, forming a uniform linear contact grinding area. The increased size and height of the roller and ring enhance the grinding contact area.
2. The grading machine uses a squirrel-cage type, expanding the particle size range of the finished product from the original 80-325 mesh to 80-800 mesh.
3. Updated to a vacuum-assisted, two-stage dust collector system for wind-assisted conveying and finished product collection, ensuring more thorough collection of finished products.
Reliable Performance:
New technology (plum blossom frame and compound pendulum grinding roller unit), advanced and reasonable structure, extremely low machine vibration, low noise, stable equipment operation, and reliable performance.
(3) Energy Efficiency:
Material processes a larger volume and higher efficiency per unit of grinding time.The R-type pendulum mill maintains the same total power under the same conditions, with a yield increase of 25-50% compared to the same period last year, and saves more than 30% in unit power consumption cost, making it a truly energy-saving mill product.
(IV)The ZY series Raymond mill is mainly composed of the main machine, classifier, blower, cyclone separation system, pipeline system, and motor, etc. Our company's designed and manufactured Raymond mill is scientifically rational and technologically advanced, significantly enhancing the overall performance of the equipment.
Technical Specifications
Name | Raw Material Procurementmm） | Finished Product Fineness (Subject) | Production Volume （t/h） | Milling ring diameter （mm） | Grinding roller dimensions （mm） | Main Engine Powerkw） |
ZY1100 | ≤30 | 80~400 | 3~8 | Φ1100 | Φ350×200 | 45 |
ZY1300 | ≤30 | 80~400 | 5~15 | Φ1300 | Φ410×240 | 90 |
ZY1520 | ≤30 | 80~400 | 8~15 | Φ1520 | Φ450×240 | 132 |
