Name:Integral Clamp-On Ultrasonic Flow Meter
Model:F7
Dimensions:110*50*48mm
Brief Description:
F7 is an externally mounted ultrasonic flow meter product featuring a monolithic design with compact size and easy installation. It is suitable for monitoring flow processes of liquid media in various small-diameter piping applications.
Interface Type:
M12-Type A-5Chip
Interface Definition:
| Color | Definition | Note |
| Brown | 24VDC 1A | Power Input+ |
| Blue | Flow 4-20mA OUT | Current Output+ |
| Black | 0V | Power Input-/Current Output- |
| White | A | RS485 |
| Grey | B |

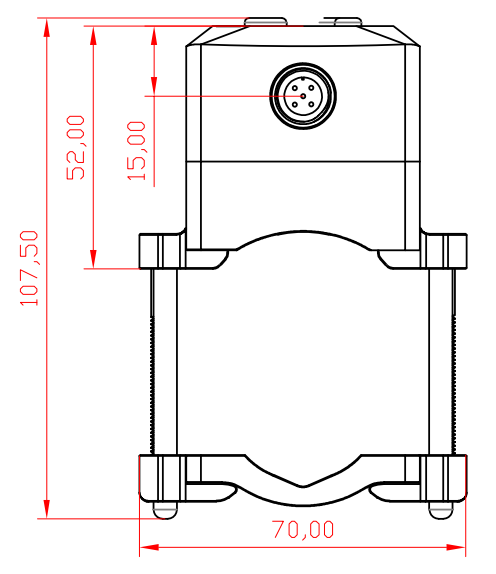

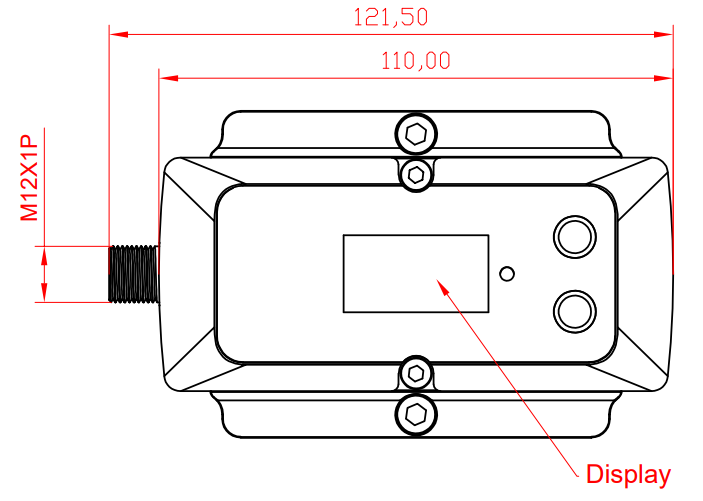

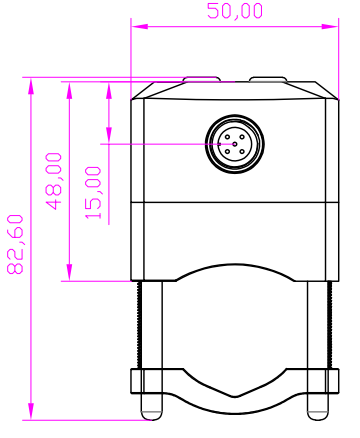

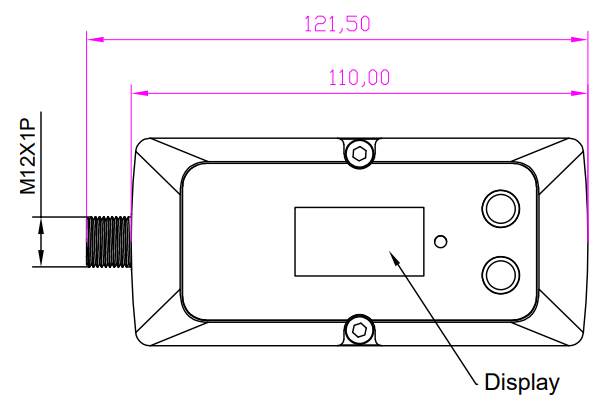

Dimensions:
| DN10-DN25 | DN32-DN40 |
![]() | ![]() |
![]() | ![]() |
