VHX-1000 3D Ultra-Depth of Field Microscopy System, featuring a micro 3D ultra-depth of field camera paired with a metallographic microscope, allows for direct acquisition of 3D images and measurements without a computer, with easy operation.

The VHX-1000 3D Ultra-Depth of Field Microscopy System offers precise measurement: under a 10X objective, both 2D and 3D measurement accuracy reaches 2 micrometers; under a 20X and 50X objective, the accuracy is up to 1 micrometer.

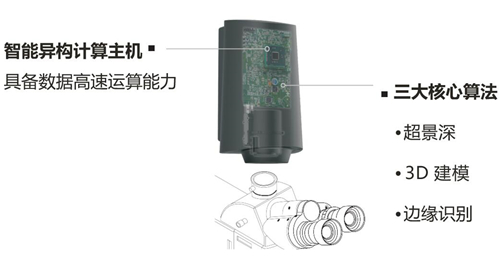

The Micro 3D Ultra-Depth of Field Camera combines high integration and flexibility. It's easy to operate, with all functions accessible via the mouse. Its built-in core technology ensures powerful intelligent interlinking performance for microscopic systems: the integrated intelligent heterogeneous host can directly execute a large amount of computation tasks instead of a computer, offering fast operation and stable performance; real-time ultra-depth of field and 3D modeling algorithms enable multi-directional stereoscopic 3D observation and measurement analysis for microscopic systems; the automatic edge recognition algorithm further enhances the efficiency of microscopic observation and batch operations.

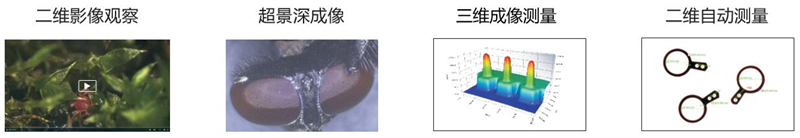

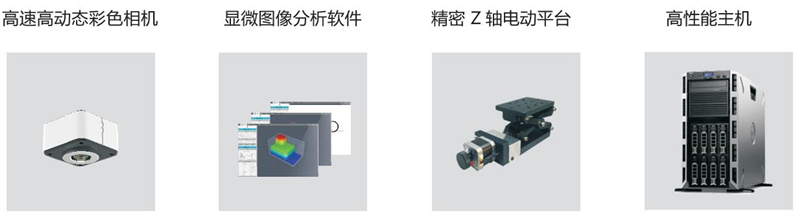

● Equivalent to having four professional devices in one

● Upgrade your microscope's observation and analysis capabilities

● Ultra-deep field observation, viewing all feature points on the same plane

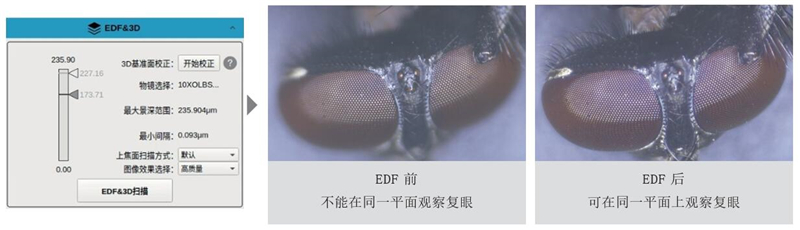

Open the "Capture-Imaging-EDF&3D" module of the software, use the mouse to confirm the in-focus and out-of-focus planes you want to observe in the image, click "EDF," and it will automatically expand the depth of field, achieving a full-frame focus image, allowing you to view all feature points on the same plane.

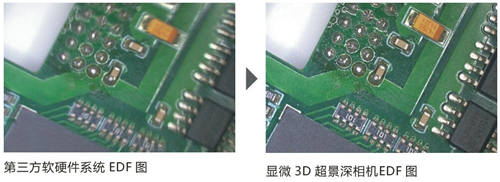

● Real-time Depth of Field Expansion (EDF), minimizing the occurrence of blurred images and misshapen shadows

When expanding depth of field on 3D systems mounted on different platforms, it's prone to angular misalignment, uneven rotation, and flat focal plane issues. Smart computation联动 performance can help resolve these problems, and when paired with a microscope, it can also provide a clear and accurate full-frame focus image.

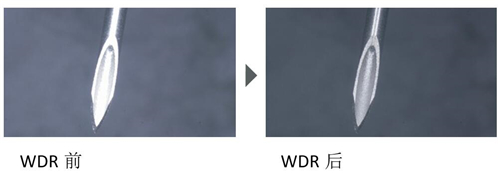

● Real-time Wide Dynamic Range (WDR), eliminating strong reflections on metallic surfaces

High reflective metal surfaces can lead to the loss of detail information and affect judgment. The WDR mode, by calculating the data of multiple images with different brightness in real time, can create images with good exposure and clear details in both light and dark areas.

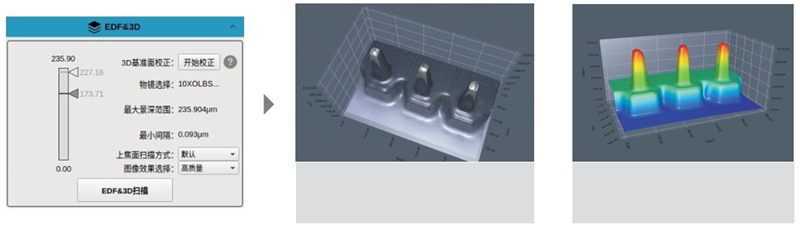

Create 3D models, easily measure at any location

Open the "Capture - Imaging - EDF & 3D" module of the software, use the mouse to confirm the in-focus and out-of-focus positions in the image, click "3D," and the 3D model creation will be automatically completed. Supports real-view and pseudo-color display modes, allowing for 360-degree rotation and observation.

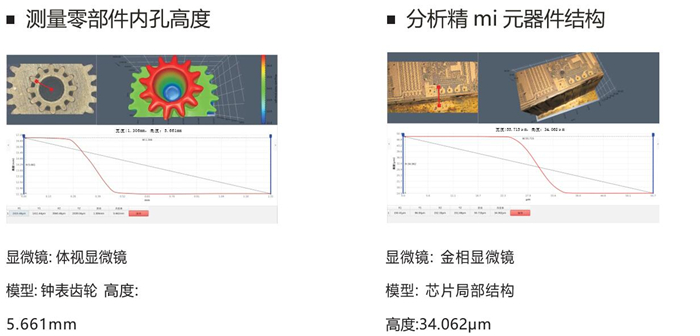

The VHX-1000 3D ultra-deep field microsystem boasts a rich array of 3D measurement capabilities.

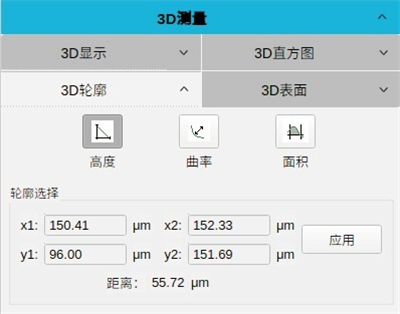

Offer a rich set of 3D analysis tools, allowing measurement at any position of 3D models, with real-time data recording and saving. Under a 10x objective lens, Z-axis measurement accuracy reaches 2 micrometers, with repeatability up to 1 micrometer. At 20x and 50x objectives, Z-axis accuracy is 1 micrometer, with repeatability down to 0.5 micrometers. With higher magnification objectives, even higher precision dimensions can be achieved, meeting the vast majority of microscopic 3D measurement requirements.

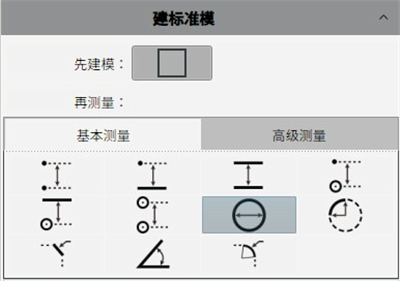

●Automatic 2D measurement, eliminates human error, suitable for batch processing

It features 2D intelligent image recognition and batch measurement capabilities. No need for manual precise positioning, allowing for quick standard product modeling and effectively eliminating human operation errors, aiding in various batch measurement tasks. Under a 10x objective lens, automatic measurement accuracy reaches 2 micrometers, with a repeatability of 2 micrometers, ensuring the accuracy of batch measurement results.

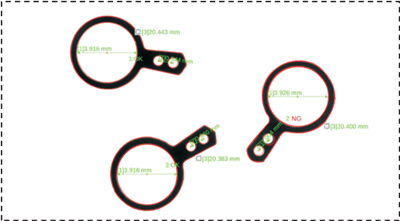

● Automatically judge qualified and unqualified products. For standard components, it can automatically display the OK/NG results of the samples within the set standard deviation range, improving the efficiency of quality inspection analysis.

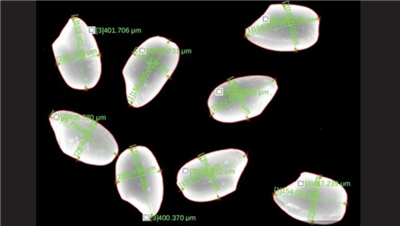

● Outputs all measurement data in one go. For non-standard parts, by setting similarity tolerance, all sample measurement data can be outputted in one go, enhancing batch measurement efficiency.

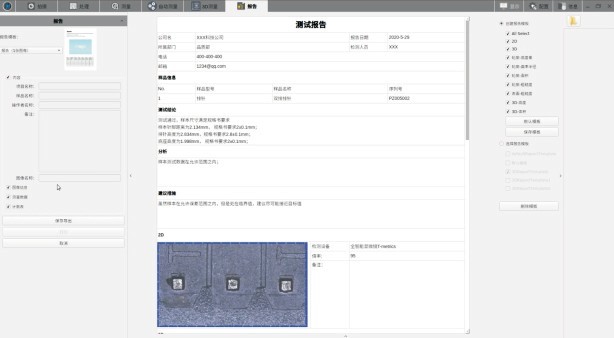

● Automatically generate reports, data is exportable

Not only can it save image and video data, but it also automatically generates detailed test reports with images and text. 2D and 3D data in the workflow can be exported, and the job is done with a simple and effortless process!

Above is a brief introduction to the 3D Ultra-Depth of Field Microscope System VHX-1000. Huiguang Technology sincerely invites you to come to our company for trial use and machine selection.
