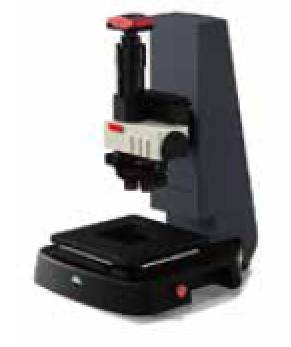

VHM-3000 3D Ultra-Depth Microscopy System, more than just 3D stitching and measurement, it's a comprehensive expression of microscopic imaging technology.
VHM-3000 3D Ultra-Depth of Field Microscopy System Features:

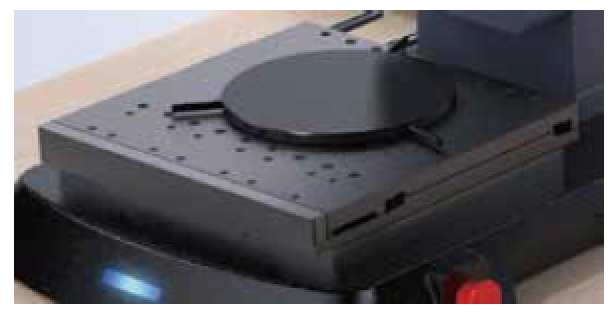

●Fast: XY utilizes a linear motor-driven platform, which is over 4 times faster than a standard screw-driven platform.

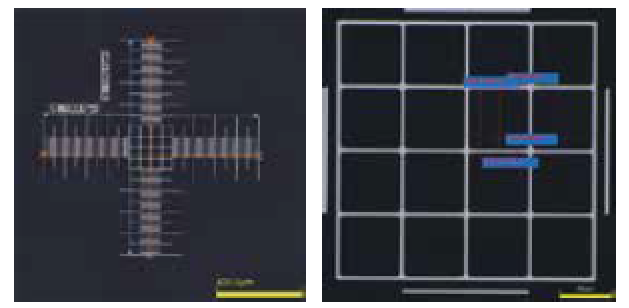

●Precision Measurement: The XYZ three-axis are equipped with 0.1um high-precision glass scales for high-accuracy positioning. Paired with advanced image algorithms, it provides a solid guarantee for precise measurement.

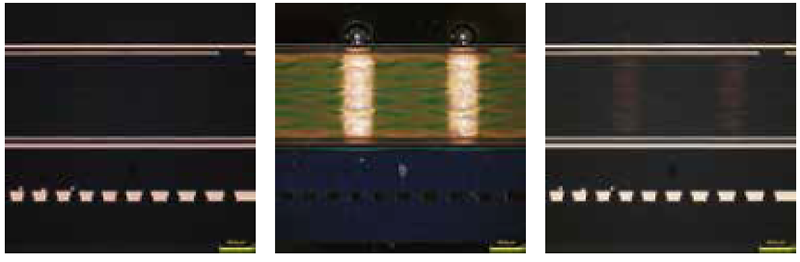

●Multiple optical observation modes available: The system offers bright field, dark field, mixed illumination, polarized light, differential interference, near infrared, fluorescence, and more, allowing for quick selection of the best observation method.

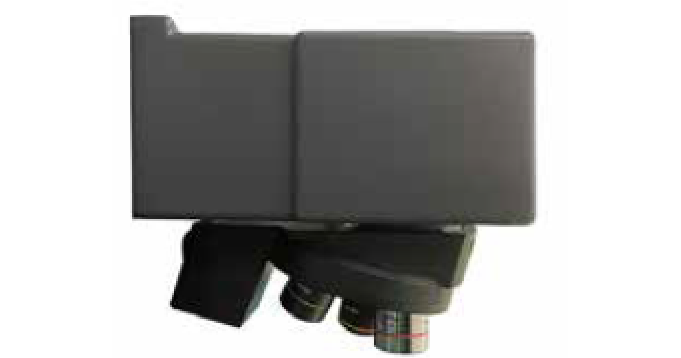

●Electromagnetic Objective Converter: Equipped with an electromagnetic objective converter, easily switch between different objectives with a single button. The ruler matches in real-time, making your observation and measurement effortless.

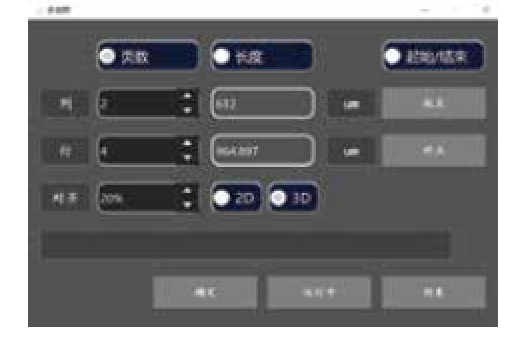

●Simple panoramic stitching with one-click operation: Quickly auto-stitch 2D and 3D images, choose from three stitching modes based on sample characteristics - by row and column count, desired stitching length, or set starting and ending positions.

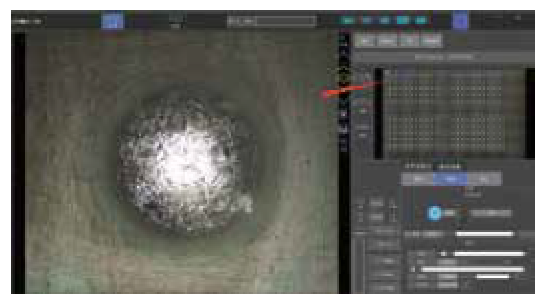

● Navigation Map Feature: Scan samples at low magnification to generate a navigation map, allowing for quick location of observation points at high magnification for 3D morphology analysis. Ensures you never lose sight during analysis; even when zoomed in, the system displays the current field of view's location on the macro map.

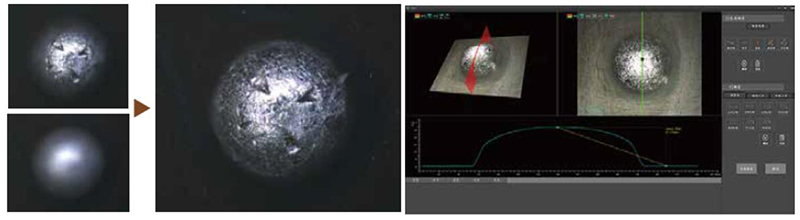

●2D, 3D Image Acquisition: Overcomes traditional microscope field of view and depth of field issues, enabling the capture of product 3D morphology and subsequent 3D data analysis.

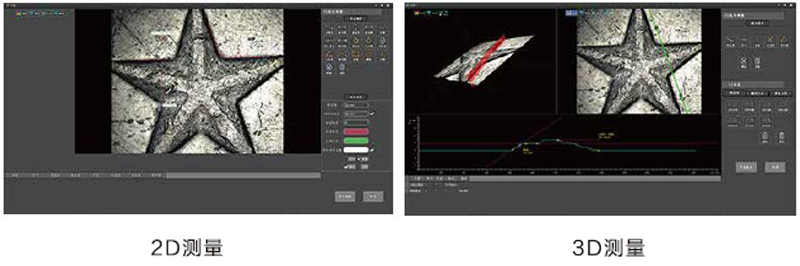

●Comprehensive Geometric Measurement Tools: A combination of various measurement tools to meet the growing demand for space dimension measurements from users.

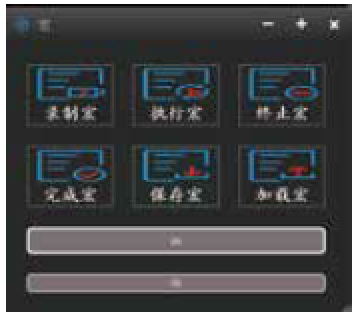

● Macro Operation Module: Ideal for scenarios requiring extensive repetitive testing of the same product. Simply input the execution steps once to create a macro program, and it can be directly called for future use.

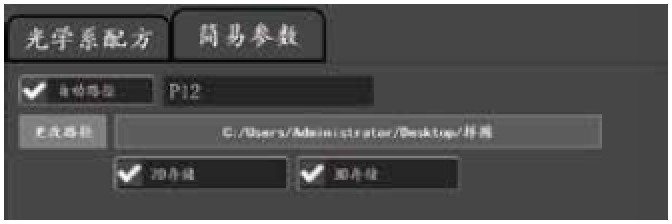

●Custom Batch Collection: The system supports users to specify the save path and image naming rules for batch image collection and storage.
● Customizable: Available with a WDI autofocus module for faster observation and measurement。

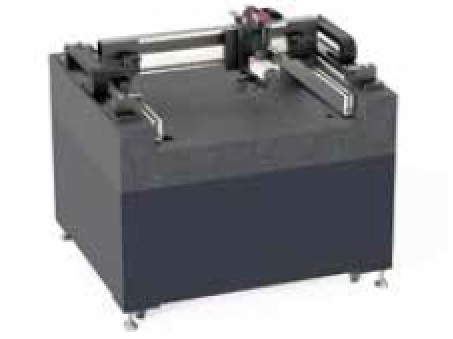

Customizable large platform, catering to diverse industry-specific application needs.。
● Q-DTS Smart Data Interconnect Platform Module: A smart data processing platform that enables data sharing and interconnectivity between different types and platforms, making cross-platform data processing faster and more convenient.

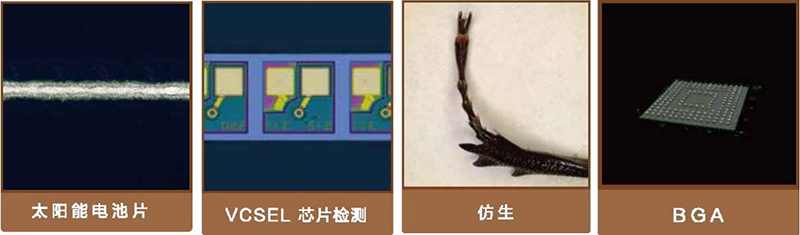

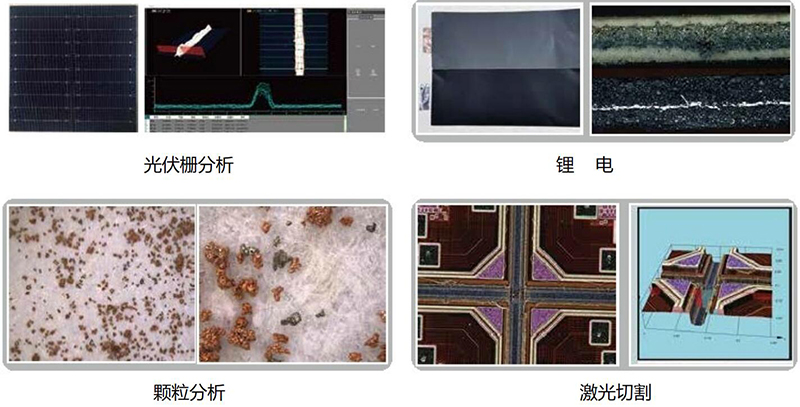

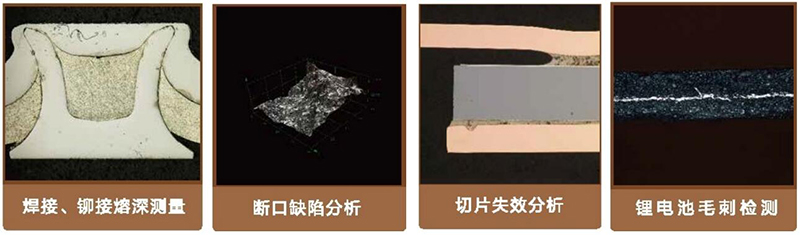

VHM-3000 3D Ultra-Depth of Field Microscopy System Application
