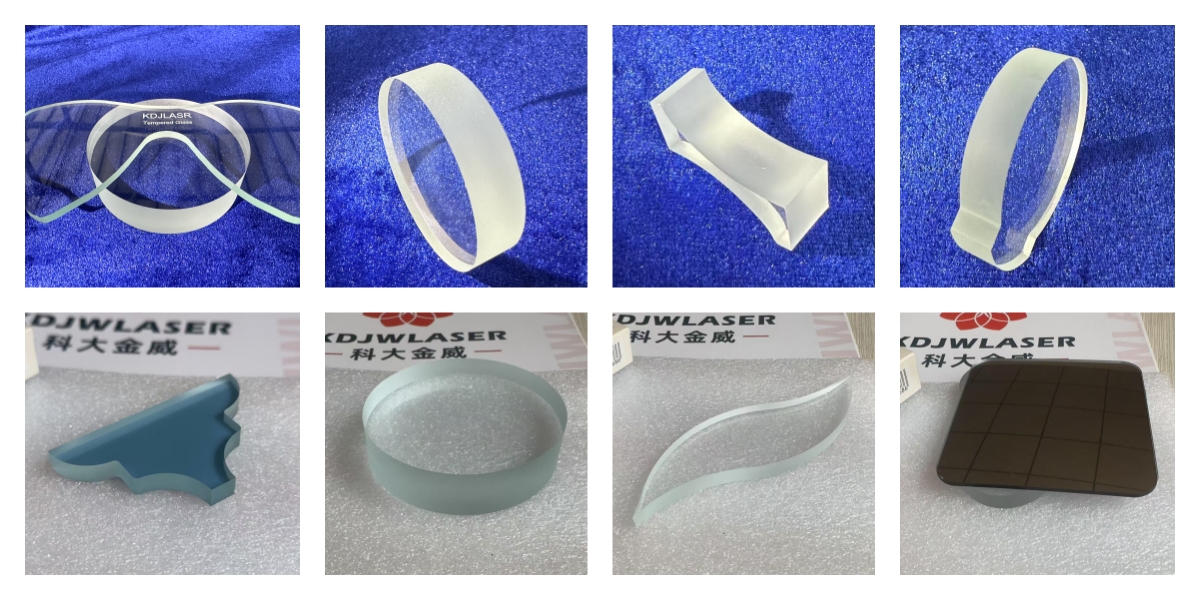

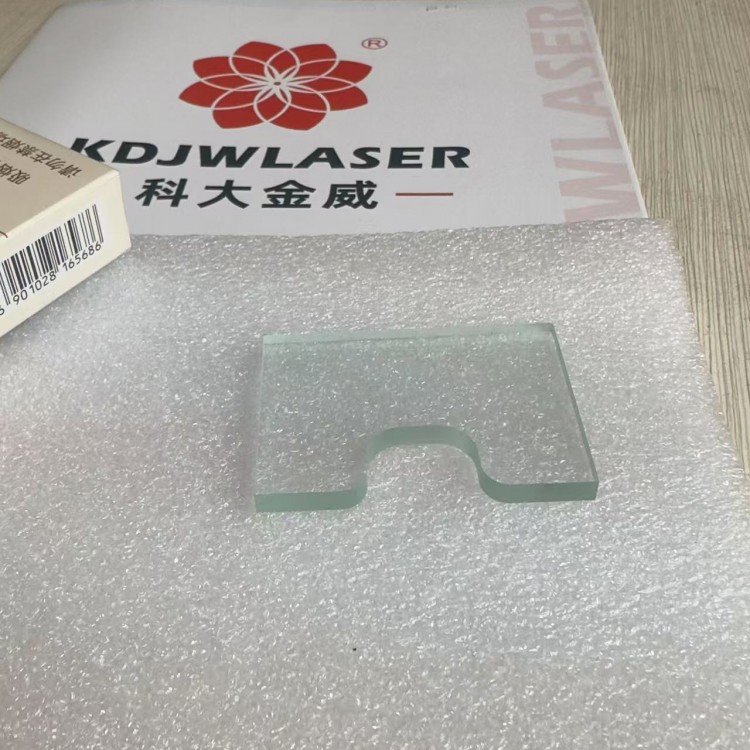

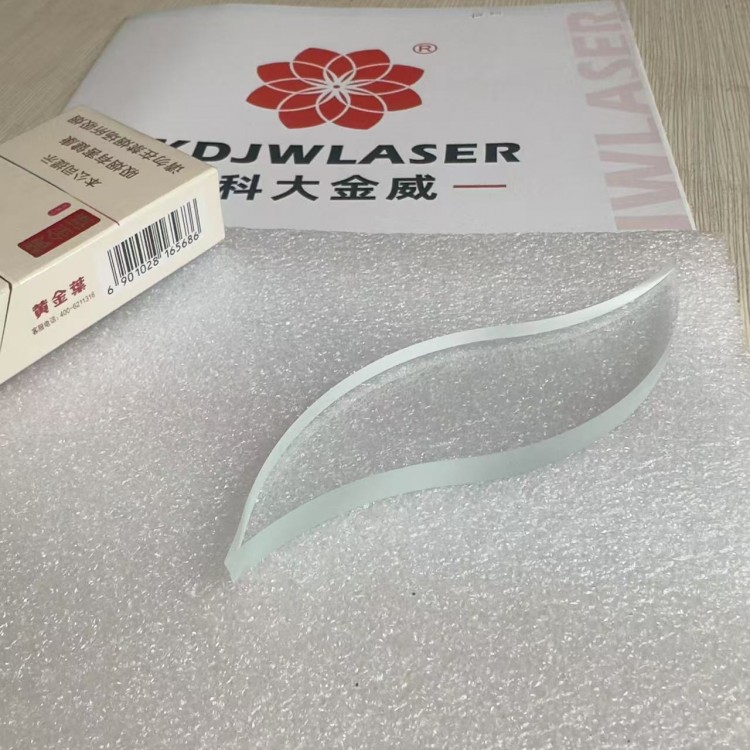

KeDa JinWeiUltra-fast glass laser cutting machine, equipped with self-developedAI-controlled system with high-end customizable picosecond light source and dual-drive linear motor, featuring a durable and stable marble tabletop. Its integrated cutting process boasts high precision with cutting errors of ±2 micrometers. Compared to traditional CNC and waterjet processing, it offers significant advantages, especially in non-standard, fine, and non-destructive cutting fields, where CNC lags behind. Laser cutting excels in non-contact operation, ease of use, fully automatic operation, no consumables or pollution, smooth edges without chipping, low power consumption, and high efficiency, with peak cutting speed up to 15m/min. In contrast, traditional CNC often faces issues like environmental pollution, drill wear, severe edge chipping, high scrap rates, and slow speed. It overcomes these challenges, significantly reducing production costs for manufacturers and enhancing profit margins. Its excellent performance not only demonstrates the power of technological innovation but also brings unprecedented transformation and improvement to the glass processing industry.
| Sporting structure | ||
| 1 | XYZ linear guide rail | Japan THK (Top of the Line) |
| 2 | XYZ Linear Axis Motor | Ironless Linear Motor (Singapore Technology) - Z-axis with 24-bit precision servo motor |
| 3 | XYZ Axis Encoder Tape | Renishaw 0.1um Resolution (Imported from the UK) |
| 4 | XY axis reading head | Renishaw (Imported from the UK) |
| 5 | Repeatability accuracy | Achieve ±2μm track error ±2μm |
| Coreless linear motors have no winding slots, which means a lighter moving mass and no attractive force between the coil assembly and the magnetic circuit—absolute zero cogging effect. Meets the requirements for high-speed, high-precision, and stable motion. | ||
| Cutting Light Source | ||
| 1 | Laser Type | Picosecond pulse laser (seed sources are all from world-renowned brands like Germany's Nlight) |
| 2 | Wavelength | 1064nm, Beam quality: M2<1.3 |
| 3 | Pulse Length | <10PS; Pulse Frequency: 1Hz - 1000kHz |
| 4 | Cooling Method | Cooling Method: Water Cooling |
| Fragmented light source | ||
| 1 | Laser Type | CO2 metal RF laser/glass tube (optional) |
| 2 | Wavelength | 1064nm, Beam quality: M2<1.3 |
| 3 | Pulse Length | <30PS; Pulse Frequency: 1Hz-1000kHz |
| 4 | Cooling Method | Cooling Method: Water Cooling |
| Visual Alignment System | ||
| 1 | Camera | 5 million CCD |
| 2 | Light Source | Adjustable circular brightness light source |
| 3 | Positioning | Identify Mark Auto Alignment |
| 4 | Accuracy | ≤±3μm |
| 5 | Software Copyright | Self-developed |
| 6 | Image File Format | dxf、dwg |
| 7 | Motion Control Card | High-Precision Motion Control Card (including PSO laser control) |
| Sporting Structure | ||
| 1 | Body | Grade 00 Marble Carrying Capacity |
| 2 | Transmission Method | Linear Motor |
