Overview of Machine Tool Performance Features:

1) Fully automatic CNC sawing machine, suitable for continuous cutting in bulk production.

2) Equipped with PLC control system, capable of setting a series or multiple series of continuous cuts, with a single feeding precision of 0.3mm.

3) Color touch screen operation, intelligent human-machine interface, easy to use; replacing the traditional button control panel with a human-machine interface.

4) Feeds length controlled by a laser scale, single feeding stroke of 500mm, lengths over 500mm can be fed in multiple stages.

5) PLC control with touch screen display.

6) Designed for continuous bulk cutting, featuring a 41mm wide blade for high precision sawing and fast cutting speed.

7) Steel brush cleaning for thorough chip removal.

8) The main drive utilizes a worm gear reducer, offering strong power and reliable performance. It has been precisely balanced and calibrated for smooth and reliable operation.

9) Narrow kerf, material-saving, energy-efficient.

10) Rational saw belt guiding device, effectively extending the life of the saw belt; the movable saw blade guide structure is sturdy and flexible. The drive components are adjusted to precise balance, reducing vibration; the descent speed is smooth. This precise system prevents abnormal saw blade damage, achieving good cutting results.

11) Energy-saving design with a simple circuit, plus an excellent electrical cabinet space, ensures a low machine failure rate and facilitates easy maintenance and time-saving repairs.

To ensure reliable machine operation, the saw blades, guides, electrical components, and hydraulic components on this machine are all renowned products from both domestic and international brands.

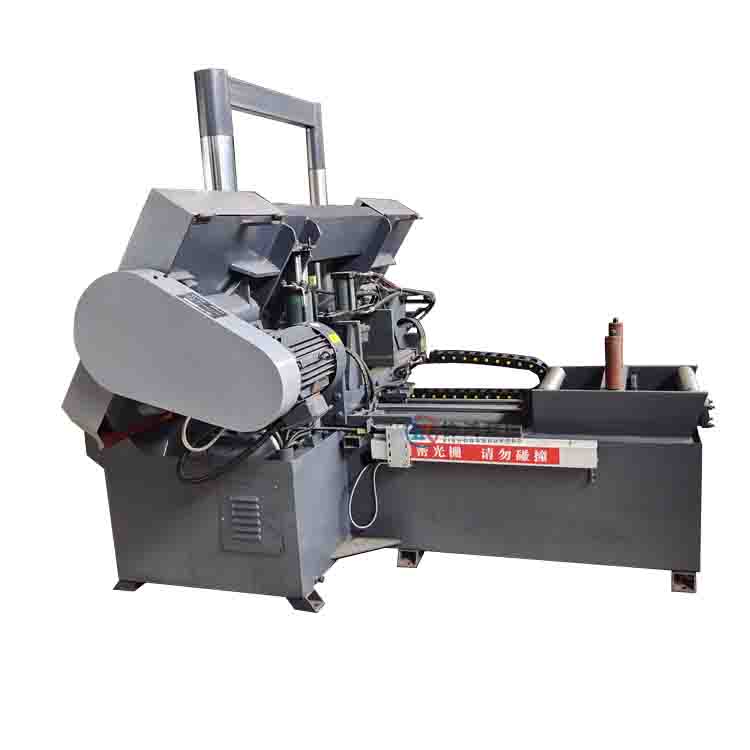

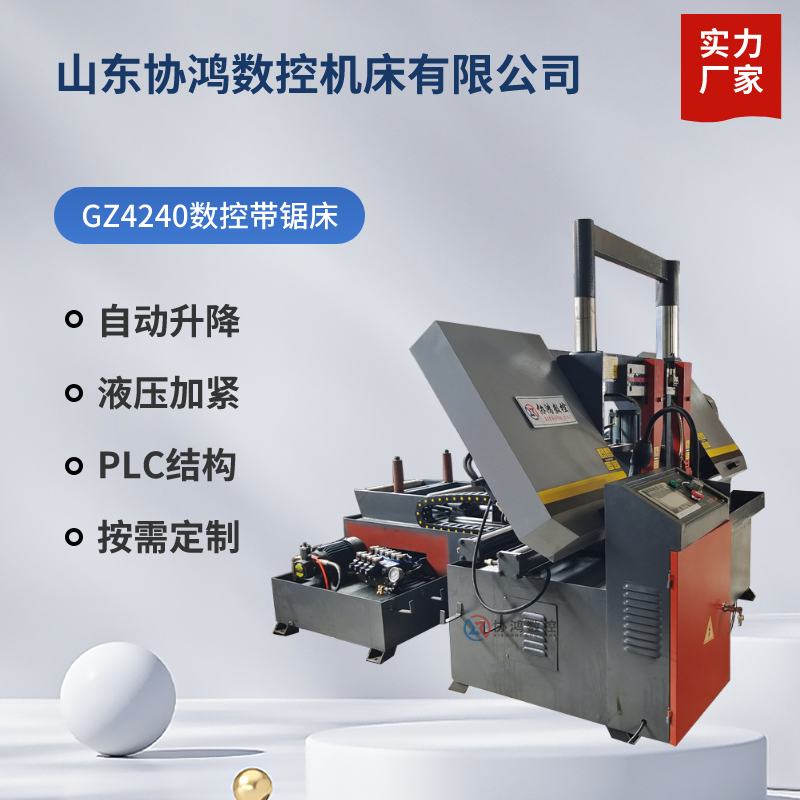

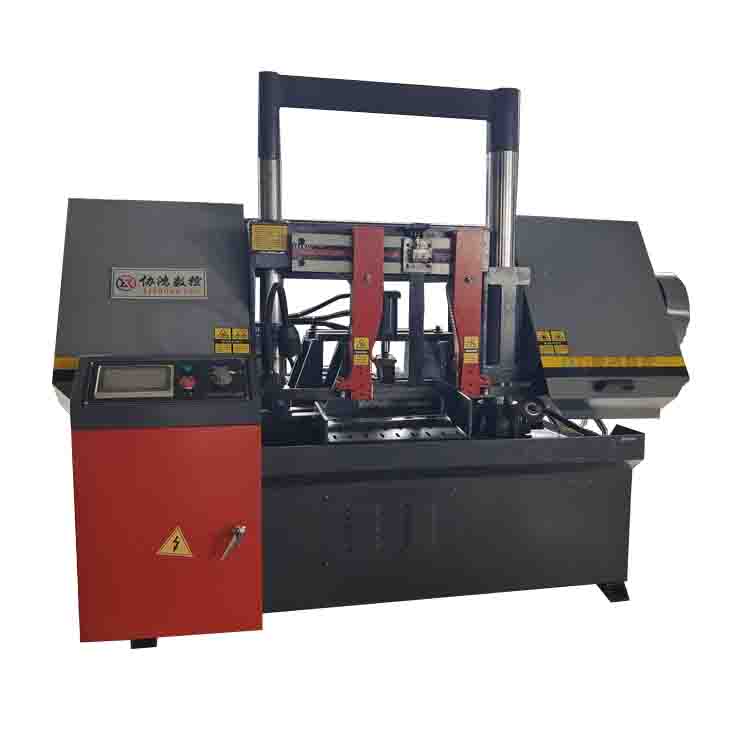

Product Model GZ4240

Cutting Range: 400-400

Saw Blade Specifications: 5000x41X1.3

Saw Blade Line Speed: 27, 45, 69

Hydraulic Work Clamping Method

Main Motor Power: 4

Hydraulic Motor Power: 0.75

Cooling pump power: 0.04

Dimensions: 2500-1300-1600
