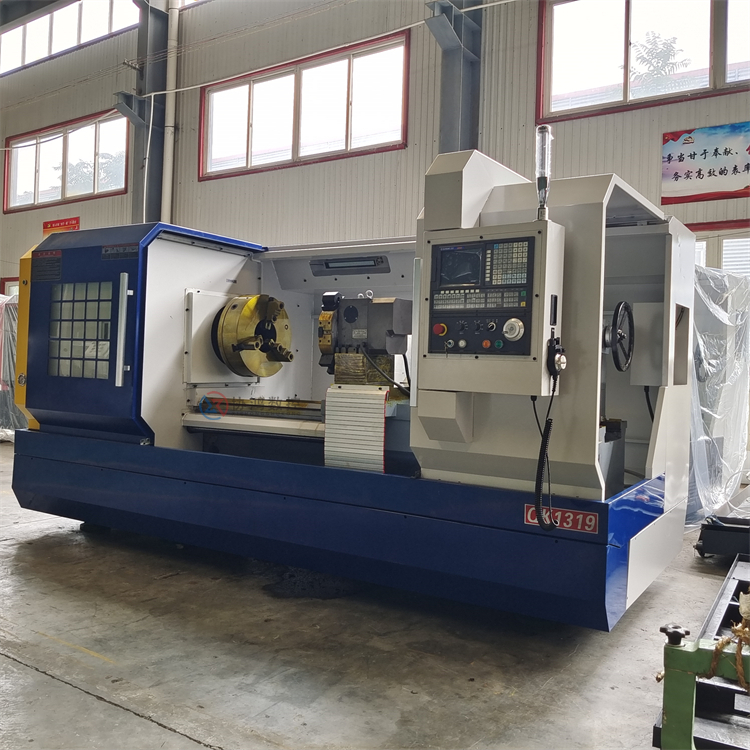

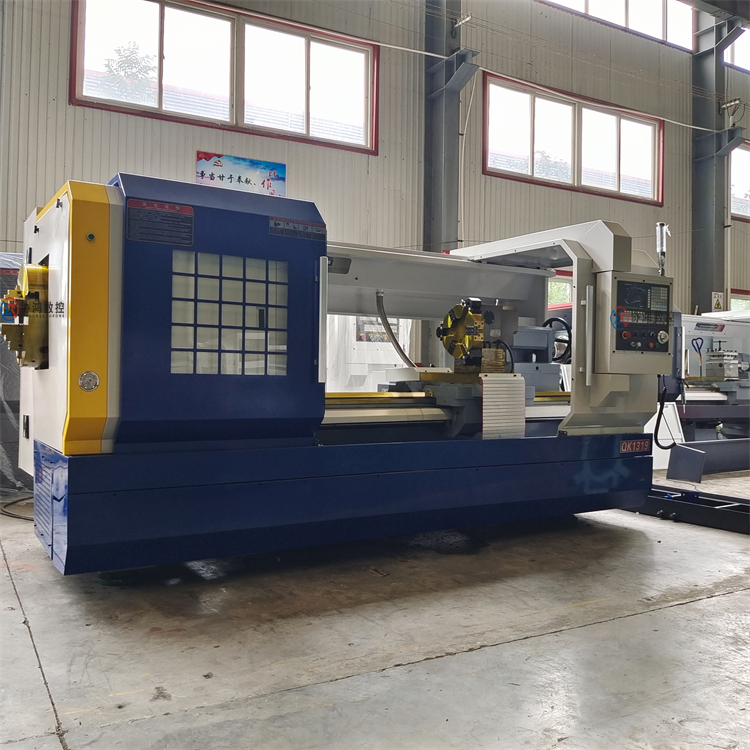

Key Technical Parameters  Units QK1319

Swivel Diameter on Bed: mm 630/800

Wide Sliding Plate, Large Turn Diameter: mm 340/520

Part Length: mm 1000/1500/3000

Finished Pipe Thread Diameter Range: mm 50-193

Bed Frame Rail Width: 550mm

Bed Frame Load Range: T 3

Bore diameter range: mm 200

Main shaft speed steps - 4-step variable frequency

Main shaft speed range: 20-550 rpm

Chuck Specifications: mm φ500 Manual 3-Jaw Chuck

刀架类型 - 4-position electric knife holder

Tool Size: 32mm x 32mm

Travel of X-axis: mm 320/420

Z-axis travel mm 850/1350/2850

X-axis rapid traverse speed mm/min 4000

Z-axis rapid traverse speed  mm/min 6000

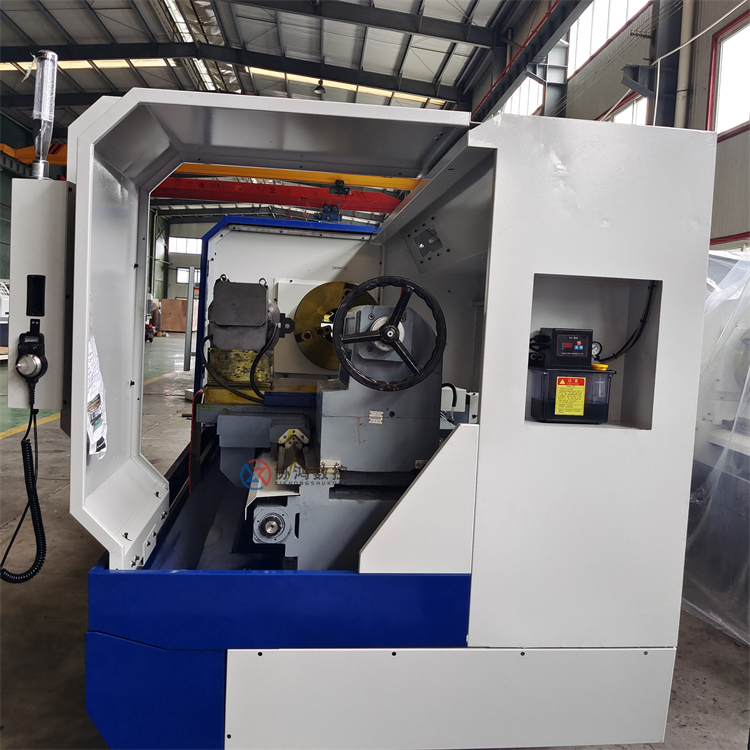

Tailstock bush diameter: φ100 mm

Tailstock sleeve taper - MT5

Tailstock Sleeve Stroke mm 250

Main shaft motor  11 kW

Cooling Pump Motor, kW 0.125
