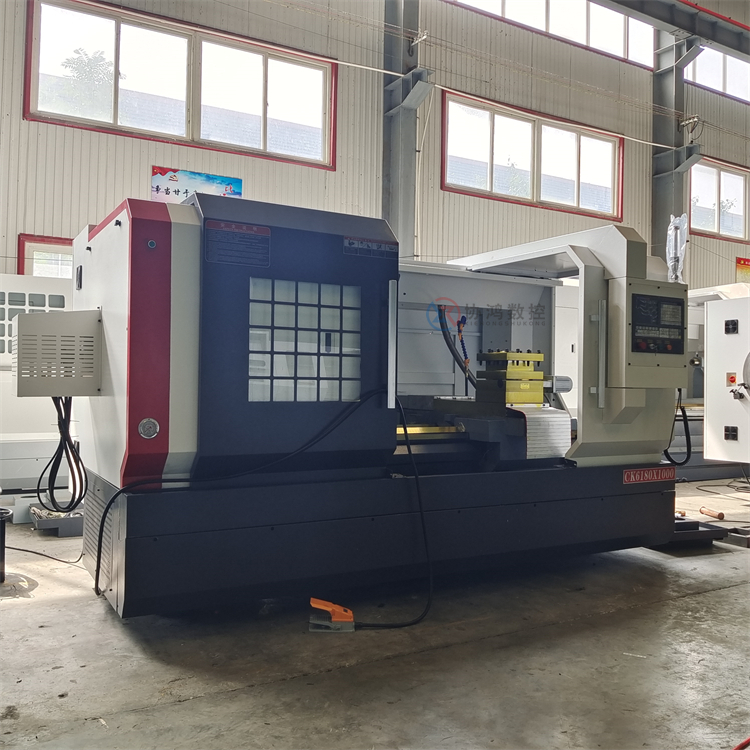

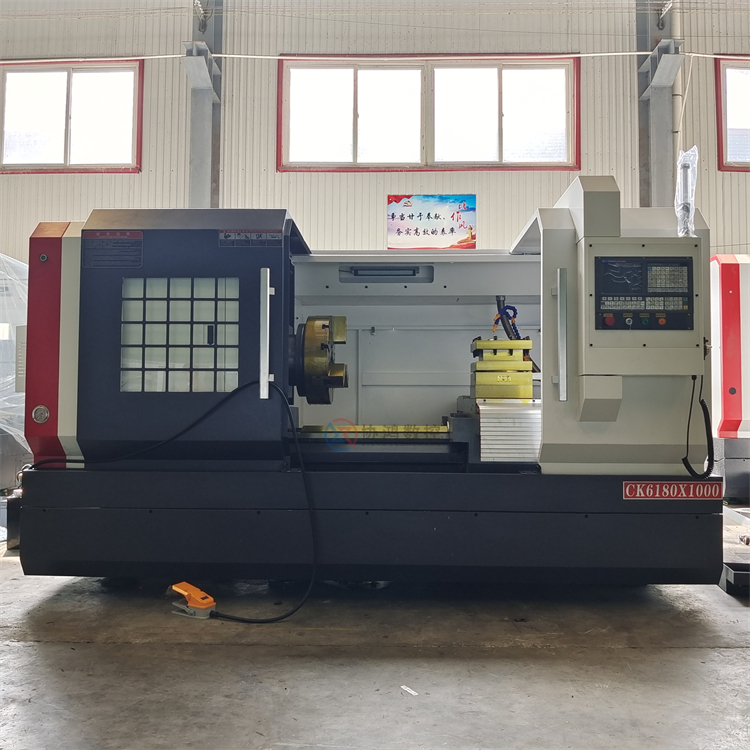

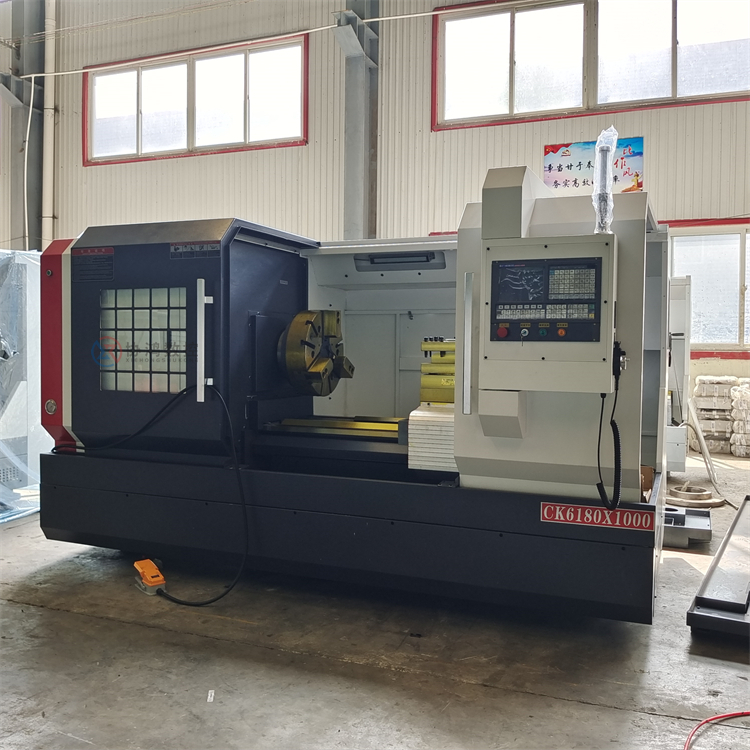

Technical Specifications Units CK6185E

Swivel Diameter on Bed: Φ850 mm

Board turn diameter: Φ480 mm

Processing Length: 1500mm

Travel X/Z mm X:400 Z:1350

Main Transmission Type: Three-speed mechanical transmission, infinitely variable within gears

Main shaft speed grades  Infinite

Spindle Speed Range: 25-850 rpm

Main shaft end style  C11

Bore Diameter: Φ105 mm

Bore end taper Metric 120-1:20

Spindle Motor Power: 11 kW

Ball Screw Specifications: 3205/5010 (6310)

X/Z Feed Motor Torque N.m X:10 Z:15 (30)

X/Z Rapid Traverse Speed  m/min 4/5

X/Z Repeatability Accuracy mm ±0.005

Workpiece machining accuracy: IT6-IT7

Workpiece Surface Roughness Ra1.6

Tailstock sleeve diameter: mm Φ100

Tailstock sleeve travel 250mm

Tailstock Taper # MT6

刀架 Type: Electric 4-post (optional horizontal 6-post)

Blade Dimensions: 32*32 mm

Dimensions: 3800*2000*2000 mm

Machine Tool Weight (Approx.) 4,500 kg
