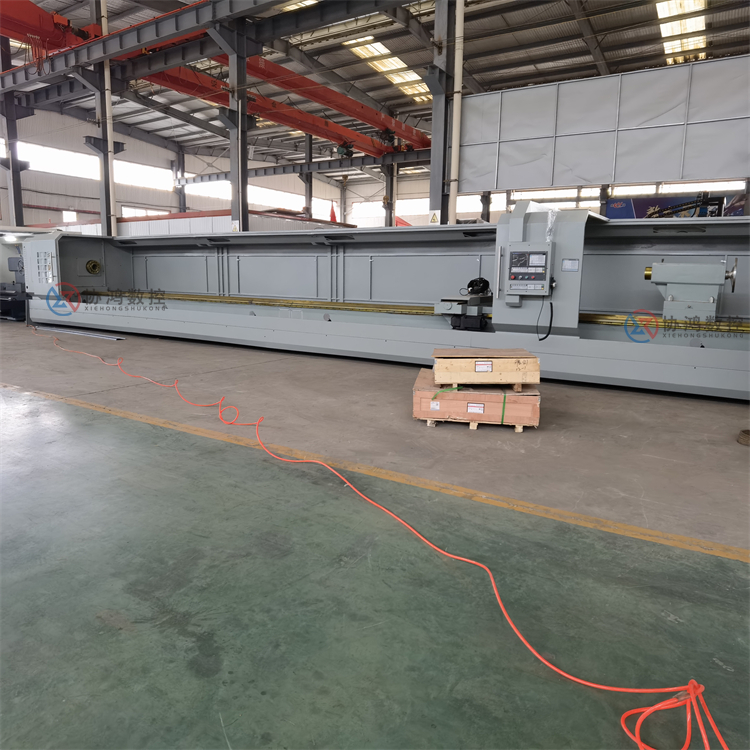

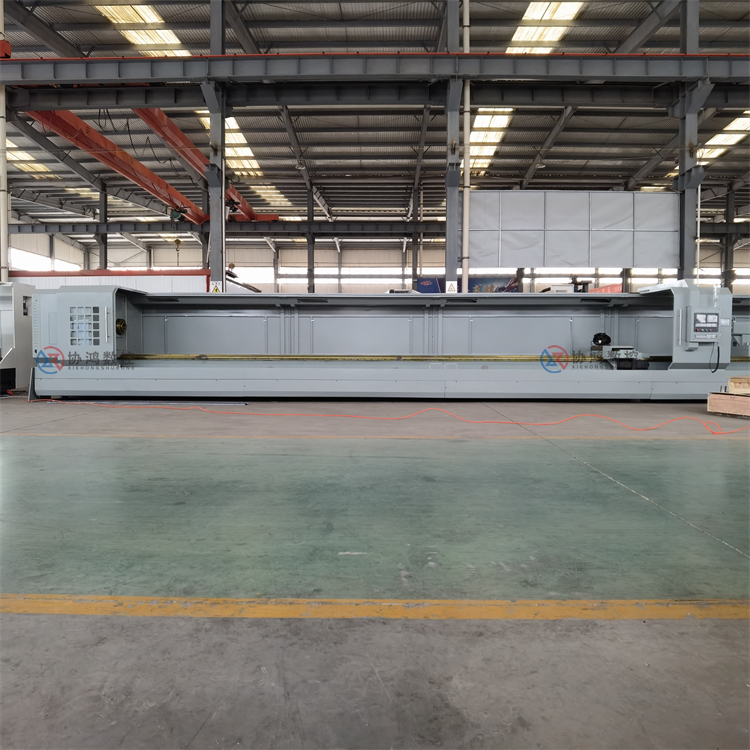

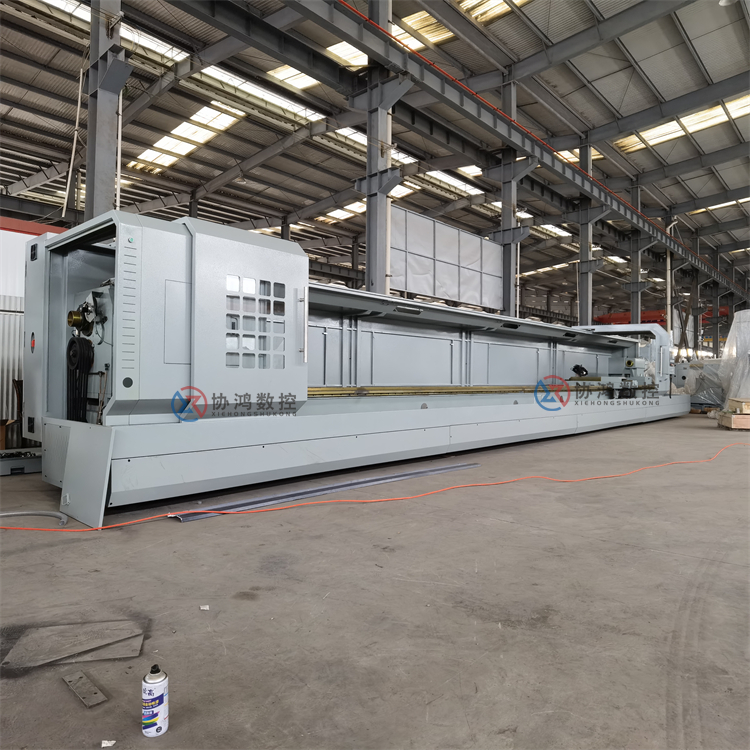

Model CK61100-12

Bed frame rotation diameter: Φ1000 mm

Skid Turntable Diameter mm Φ680

Cutting Diameter: mm Φ1000

Processing Length: 12,000mm

Travel of X/Z Axis mm 450/12000

X/Z Axis Displacement Unit mm 0.001

Bore diameter of main shaft: 105mm

Main shaft speed steps: Infinite/4-speed

Main shaft maximum speed: rpm 30-84/53-150/120-350/300-835

Spindle End A2-8/C8

Main Motor Power (Variable Frequency) kW 11

VFD 7.5 kW

X/Z Axis N.m 10/15

X/Z axis rapid traverse speed 4/6 m/min

4-Station Electric Knife Holder (Wenchang) Type

Shaft Size: 32*32 mm

Repeat positioning accuracy of knife holder: mm ≤ 0.004

Tailstock sleeve diameter: Φ100 mm

Tailstock sleeve stroke mm 250

Tailstock Tip Bore, Morse 6#

Other Power/Current Requirement (kW/A) 20kW/30A
